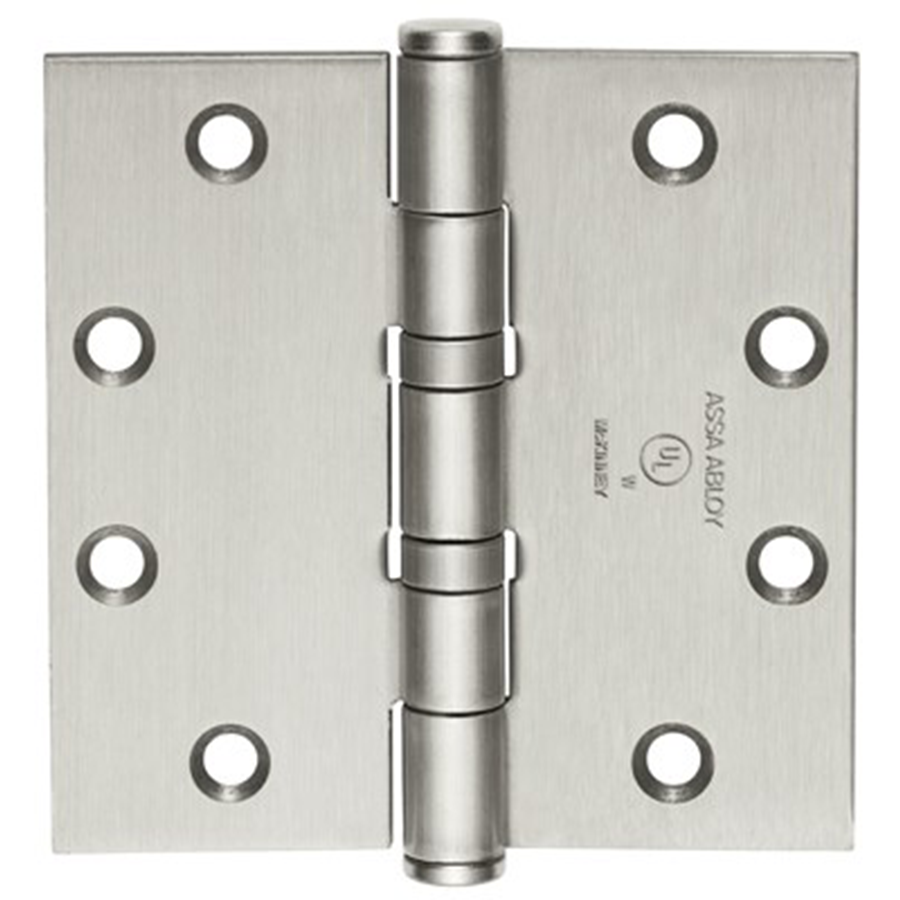

McKinney TA2314 4.0 X 4.0 US32D NRP 5-Knuckle Full Mortise Hinge, 4"x4", Stainless Steel, NRP Non-Removable Pin

Mckinney Products Company TA2314 4.0 X 4.0 US32D NRP 5-Knuckle Hinge is designed for optimal performance in standard weight, full mortise applications. Constructed from durable stainless steel, this hinge boasts a non-removable pin (NRP) feature, ensuring enhanced security for your doors. With dimensions of 4.0 inches by 4.0 inches, the TA2314 is perfect for medium frequency doors or those equipped with closing devices. This standard weight hinge features five knuckles and an oil-impregnated bearing type, ensuring smooth operation and longevity. The square corner shape and non-handed design provide versatility, making it suitable for various installation scenarios. Aesthetically pleasing decorative tips enhance the visual appeal of your door openings, while the compatible electrified options provide added functionality for access control systems. The TA2314's satin stainless steel finish, specifically the US32D option, not only looks elegant but also resists corrosion, making it ideal for both commercial and residential settings. Additionally, this hinge pairs well with Rockwood pulls, coat hooks, and door stops, ensuring a cohesive look throughout your space. Choose the Mckinney TA2314 for a reliable, stylish, and secure hinge solution that meets the demands of modern building applications.

5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.0in x 4.0in (4040), Stainless Steel Base, (NRP) Non-Removable Pin, 630/US32D Satin Stainless Steel

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
