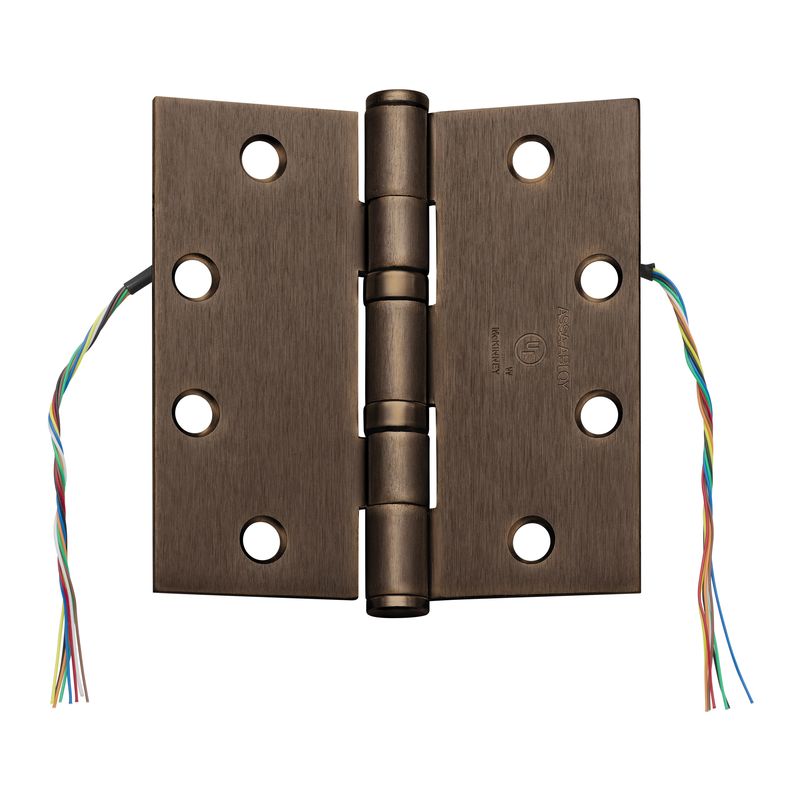

McKinney TA2714 4-1/2X4 10A CC8 Standard Weight Electric Hinge

McKinney TA2714 4-1/2X4 10A CC8 Standard Wt Hinge - Electric is designed for those seeking enhanced security and functionality in commercial applications. This full mortise hinge features a robust 5-knuckle construction, measuring 4-1/2" by 4", and is equipped with an 8-wire power transfer system for seamless integration into access control systems. The hinge's square corner design ensures compatibility with a variety of door styles, while the satin bronze plated blackened finish-clear coated for added durability-offers an aesthetic appeal that complements modern architecture. Constructed from high-quality steel, the TA2714 hinge is built to withstand the rigors of daily use in commercial environments. Its innovative ElectroLynx technology, featuring convenient Molex connectors, allows for quick and straightforward installation, saving valuable time on the job site. This hinge is part of the McKinney Electric Hinges and Transfer Devices series, specifically tailored for electrified applications. Whether updating existing doors or installing new ones, the McKinney TA2714 provides a reliable solution for enhancing security without compromising on style. With a standard weight rating and designed for commercial installation, this hinge is a solid choice for building professionals and knowledgeable homeowners alike.

Standard Wt Hinge - Electric

Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4", Square Corner, 8-Wire, Satin Bronze Plated Blackened Satin Relieved Clear Coated Finish

To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.

Resources

• "CC" Concealed Circuit Hinge Installation Instructions
• "MM" Magnetic Monitoring Hinge Installation Instructions
• "PoE" Power over Ethernet Concealed Circuit Hinge Installation Instructions
• "QC" Quick Connect Concealed Circuit Hinge Installation Instructions
• Architectural Door Accessories - Cross Reference Sheet
• MacPro Electric Hinges
• MacPro by McKinney
• McKinney Concealed Circuit Electric Hinge
• McKinney Electric Hinges and Transfer Devices Cut Sheet
• McKinney ElectroLynx Hinges (QC Option)
• McKinney ElectroLynx Power over Ethernet Hinges (PoE Option)
• McKinney Finishes Chart
