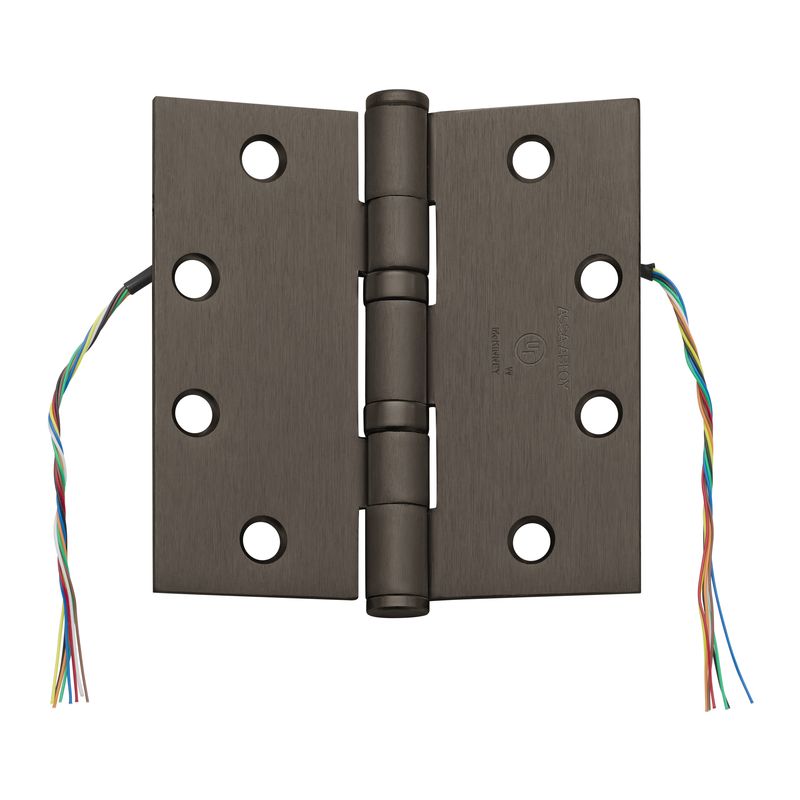

McKinney TA2714 4-1/2X4-1/2 10B CC8 Standard Wt Hinge - Electric offers an exceptional solution for modern security applications in both commercial settings. This full mortise hinge features a durable 5-knuckle design, measuring 4-1/2" by 4-1/2", and is crafted from high-quality steel for enhanced strength. Its square corner style and dark oxidized satin bronze oil-rubbed finish (613/US10B) add a sleek aesthetic while ensuring long-lasting performance. Engineered for seamless integration into remote door monitoring and access control systems, this electric hinge utilizes advanced ASSA ABLOY technology. The ElectroLynx design incorporates convenient Molex connectors, facilitating quick and straightforward installation. With 8-wire power transfer capabilities, it supports both traditional wired connections with 28 and 18 gauge wires, catering to diverse project requirements. Ideal for commercial applications, the McKinney TA2714 ensures reliable operation while enhancing security features. Each unit is shipped via UPS, and with a standard weight rating, it maintains a robust profile to withstand frequent use. Elevate your door hardware solutions with this reliable and stylish electrified hinge, designed to meet the demands of today’s advanced security environments.
Standard Wt Hinge - Electric
Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, 8-Wire, Dark Oxidized Satin Bronze Oil Rubbed Finish
To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.
Base Material: Steel
Commercial Residential: Commercial
Finish: 613/US10B
Finish Family: Dark Bronze
Hinge Type: Hinge, Full Mortise
Installation: Commercial
Knuckles: 5
Pack Qty: 1
Power Transfer: 8 Wire
Series: McKinney Electric Hinges and Transfer Devices
Subtype: Electrified Hinges
Type: Hinges and Pivots
Unit of Measure: Each
Weight: Standard Weight
