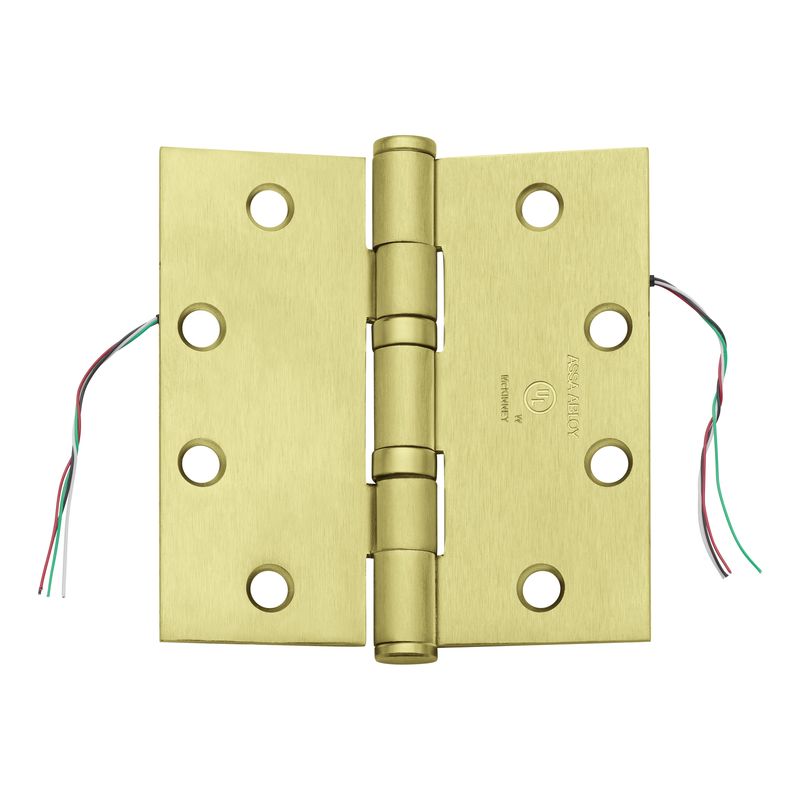

McKinney TA2714 4-1/2X4-1/2 4 CC4 Standard Weight Electric Hinge

McKinney TA2714 4-1/2X4-1/2 4 CC4 Standard Wt Hinge - Electric is an exceptional choice for enhancing security in commercial applications. This full mortise hinge features a robust 5-knuckle design, crafted from durable steel, ensuring long-lasting performance. With dimensions of 4-1/2" by 4-1/2" and a square corner profile, it seamlessly integrates into various door setups. Designed with modern security needs in mind, the TA2714 incorporates advanced technology through its 4-wire system, which allows for efficient remote door monitoring and access control. The ElectroLynx design enables quick installation via convenient Molex connectors, simplifying the setup process compared to traditional wired connections. Available with either 28 gauge or 18 gauge wires, this hinge meets diverse installation requirements. Finished in a sophisticated matte brass (606/US4), this hinge not only provides functionality but also adds a touch of elegance to your doors. Ideal for commercial environments, the TA2714 is rated as standard weight and is packaged individually. Elevate the security and accessibility of your facility with the McKinney TA2714 Electric Hinge-a perfect blend of strength, style, and innovation.

Standard Wt Hinge - Electric

Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, 4-Wire, Satin Brass Finish

To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.

Resources

• "CC" Concealed Circuit Hinge Installation Instructions
• "MM" Magnetic Monitoring Hinge Installation Instructions
• "PoE" Power over Ethernet Concealed Circuit Hinge Installation Instructions
• "QC" Quick Connect Concealed Circuit Hinge Installation Instructions
• Architectural Door Accessories - Cross Reference Sheet
• MacPro Electric Hinges
• MacPro by McKinney
• McKinney Concealed Circuit Electric Hinge
• McKinney Electric Hinges and Transfer Devices Cut Sheet
• McKinney ElectroLynx Hinges (QC Option)
• McKinney ElectroLynx Power over Ethernet Hinges (PoE Option)
• McKinney Finishes Chart
