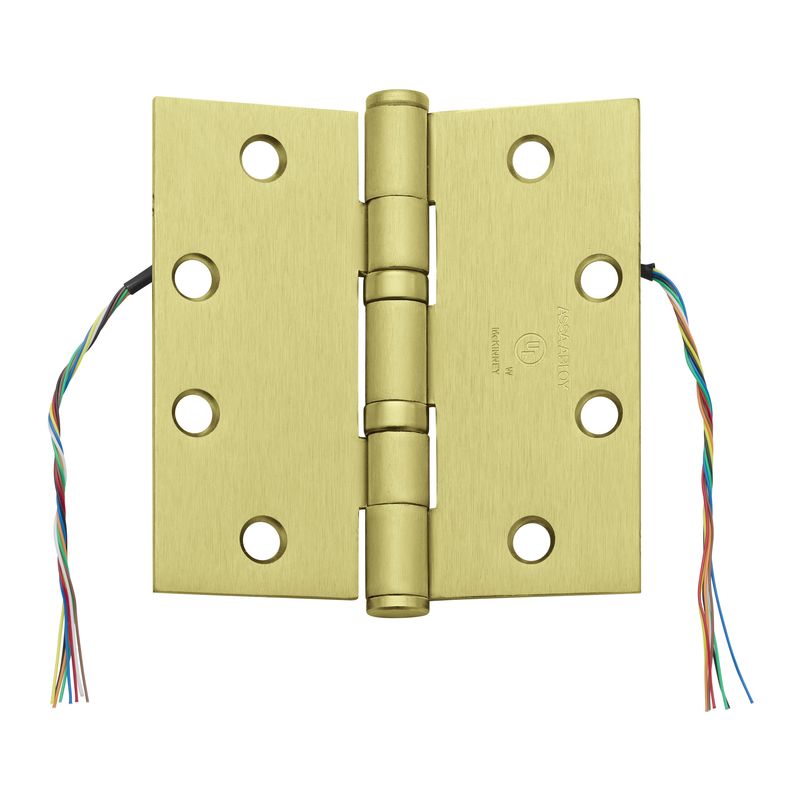

McKinney TA2714 4-1/2X4-1/2 4 CC8 Standard Weight Electric Hinge

McKinney TA2714 4-1/2X4-1/2 4 CC8 Standard Wt Hinge - Electric delivers exceptional performance for both commercial and residential applications. This full mortise hinge, measuring 4-1/2" by 4-1/2", features a durable 5-knuckle design that ensures smooth operation and longevity. Constructed from high-quality steel, it boasts a sleek satin brass finish that adds a touch of elegance while resisting wear and tear. Designed to meet the increasing demands for enhanced security, this electric hinge integrates seamlessly into remote door monitoring and access control systems. The innovative ElectroLynx technology employs convenient Molex connectors, streamlining installation and minimizing setup time. With an 8-wire power transfer system, the hinge is well-equipped to handle various electrical needs efficiently. The McKinney TA2714 is an ideal choice for those prioritizing functionality without sacrificing aesthetics. Its square corner design and standard weight construction make it suitable for a wide range of doors. Whether upgrading your existing hardware or installing new systems, this electric hinge will provide reliability and ease of use. Elevate your security solutions with the trusted quality of McKinney.

Standard Wt Hinge - Electric

Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, 8-Wire, Satin Brass Finish

To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.
