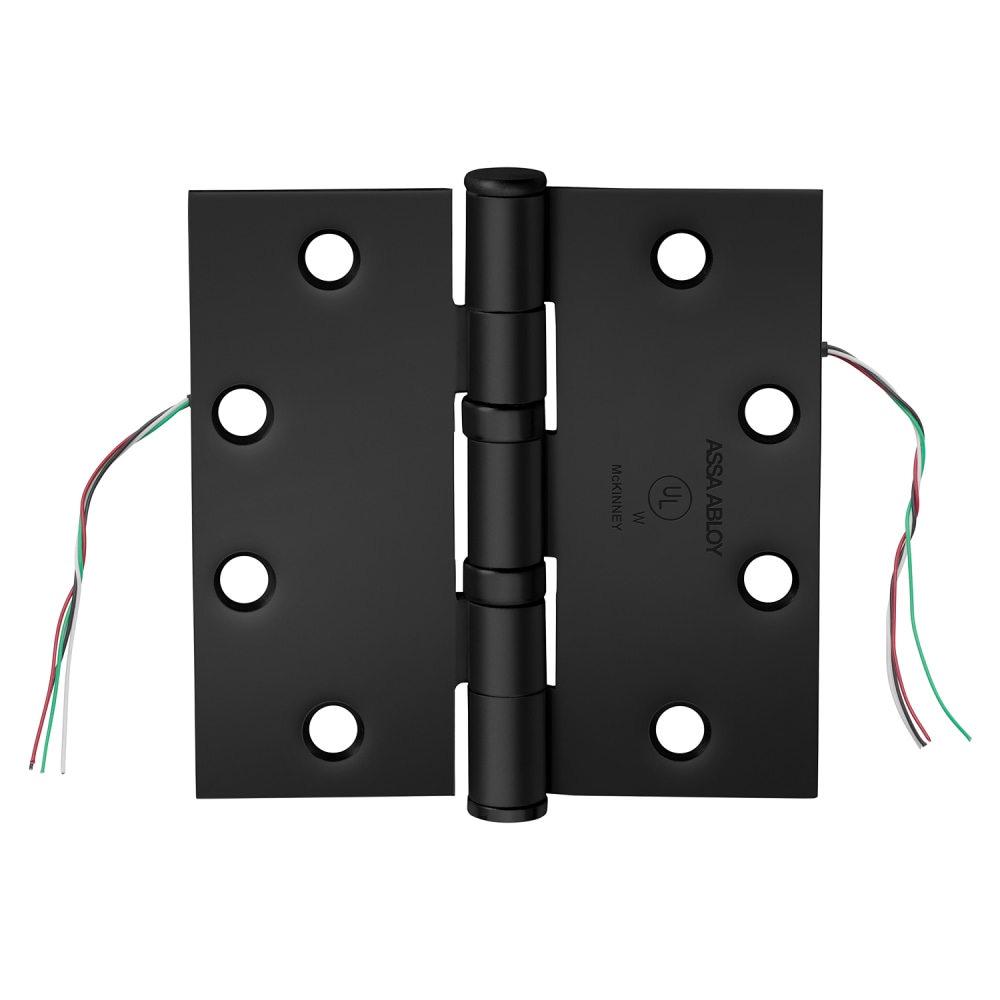

McKinney TA2714 4-1/2X4-1/2 BSP QC8 Standard Wt Hinge - Electric offers an exceptional solution for enhancing security in commercial settings. Designed as a full mortise hinge with a 5-knuckle configuration, this hinge measures 4-1/2" by 4-1/2" and features a square corner design, making it an ideal choice for a variety of applications. This hinge is equipped with 8-wire ElectroLynx connectors, facilitating quick and straightforward installation, thus saving valuable time during setup. The traditional wired connections are available in both 28 gauge and 18 gauge options, allowing for flexibility based on your specific requirements. The black suede powder coat finish not only adds a sleek look but also enhances durability, ensuring long-lasting performance. Constructed from steel, the TA2714 is designed specifically for commercial use, making it a reliable choice for high-traffic areas. As part of the McKinney Electric Hinges and Transfer Devices series, this electrified hinge meets the demands of today’s advanced access control systems, enabling remote door monitoring with ease. With a standard weight rating, you can trust this hinge to perform effectively under various conditions. Elevate the security of your space with the McKinney TA2714, a perfect blend of functionality and design.
Standard Wt Hinge - Electric
Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, 8-Wire, ElectroLynx Connector, Black Suede Powder Coat Finish
To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.
Manufacturer surcharge: $ 0.0
Base Material: Steel
Commercial Residential: Commercial
Finish: BSP
Finish Family: Black
Hinge Type: Hinge, Full Mortise
Installation: Commercial
Knuckles: 5
Pack Qty: 1
Power Transfer: 8 Wire
Series: McKinney Electric Hinges and Transfer Devices
Subtype: Electrified Hinges
Type: Hinges and Pivots
Unit of Measure: Each
Weight: Standard Weight
