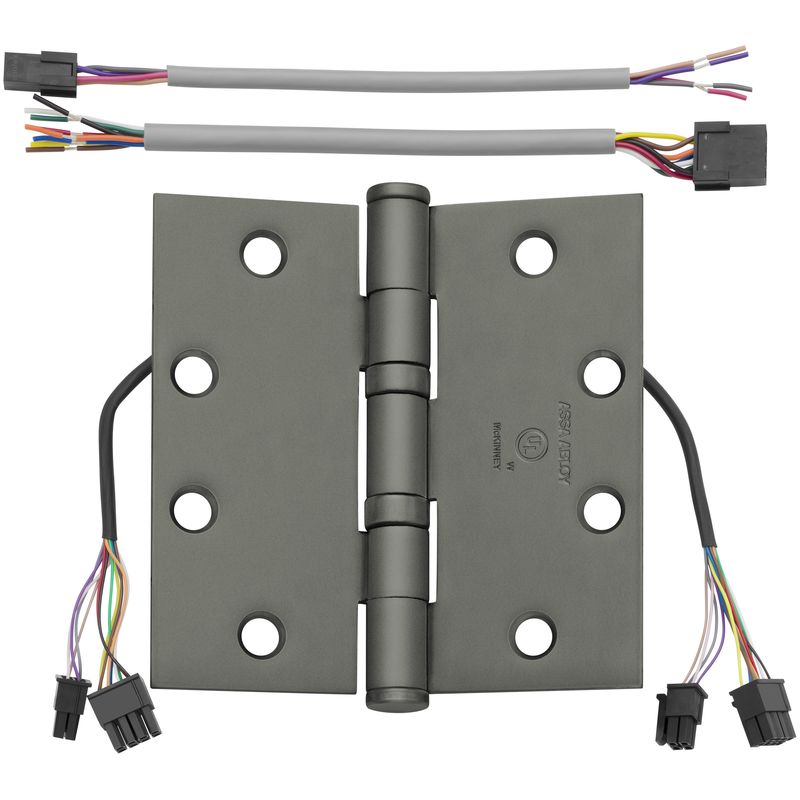

McKinney TA2714 4-1/2x4-1/2 P QC12 Standard Wt Hinge - Electric is designed to enhance security in commercial applications with its robust construction and advanced technology. This full mortise hinge features a standard weight design that measures 4-1/2" by 4-1/2", equipped with five knuckles for added strength and durability. The square corner design ensures a seamless fit for various door types. The TA2714 is specifically engineered for electrification, incorporating a 12-wire setup with convenient ElectroLynx connectors, allowing for quick and hassle-free installation. This innovation addresses the increasing demand for effective remote door monitoring and access control systems, making it an ideal choice for modern security needs. Constructed from high-quality steel and primed for painting, this hinge not only provides functionality but also offers aesthetic versatility to match any door finish. With its commercial-grade specifications, the McKinney TA2714 is suited for rigorous use in demanding environments. Each unit is packaged individually, ensuring that you receive a product that meets the highest standards. Enhance your door hardware with the reliability and performance of the McKinney TA2714 Electric Hinge, where security meets convenience.
Standard Wt Hinge - Electric
Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, 12-Wire, ElectroLynx Connector, Primed for Painting
To meet today's need for greater security applications, ASSA ABLOY developed a variety of electric hinges used in remote door monitoring and access control systems. These ElectroLynx Hinges use convenient Molex connectors to make installation quick and simple. Traditional wired connection electric hinges are available with 28 gauge and 18 gauge wires.
Base Material: Steel
Commercial Residential: Commercial
Finish: 600/USP
Finish Family: Primed
Hinge Type: Hinge, Full Mortise
Installation: Commercial
Knuckles: 5
Pack Qty: 1
Series: McKinney Electric Hinges and Transfer Devices
Subtype: Electrified Hinges
Type: Hinges and Pivots
Unit of Measure: Each
Weight: Standard Weight
