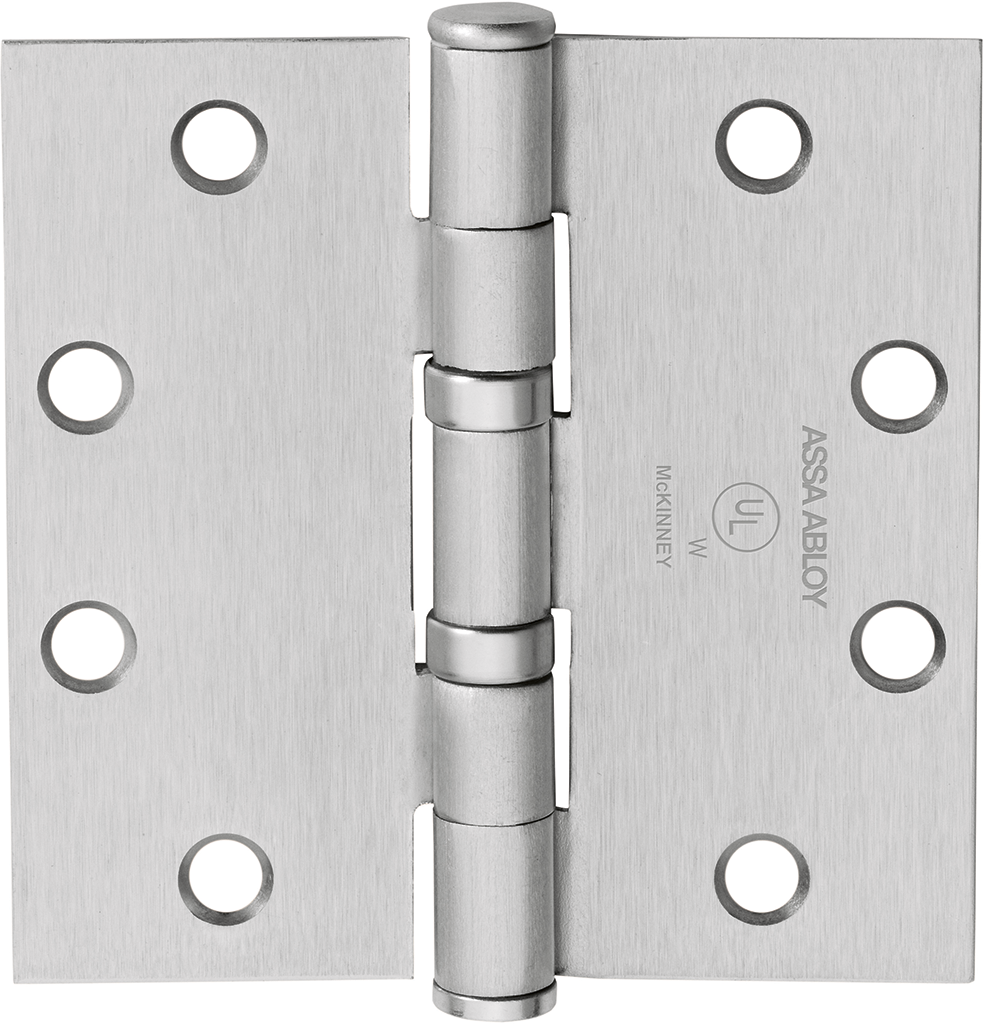

McKinney TA2714 4.0 X 4.0 US26D 5-Knuckle Hinge, Standard Weight, 4x4in, Steel, Oil Bearing, Satin Chrome

Mckinney Products Company TA2714 4.0 X 4.0 US26D 5-Knuckle Hinge is meticulously designed for standard weight, medium frequency doors, making it an excellent choice for various flush door applications. This full mortise hinge boasts a robust steel base and features a satin chrome finish that enhances both durability and aesthetic appeal. Engineered with five knuckles and an oil-impregnated bearing, the TA2714 provides smooth operation and longevity, ensuring reliable performance. The square corner shape and non-handed design allow for versatile installation, while the standard weight rating means it's suited for common metal or wood doors. The hinge also includes decorative tips that add an elegant touch to your doorways. With eight mounting holes, installation is straightforward, and the hinge is compatible with various door stops to prevent damage to both doors and walls. Moreover, electrified options are available for those looking to integrate advanced access control systems into their security framework. Whether you're a building professional or a knowledgeable homeowner, the Mckinney TA2714 hinge represents quality and dependability, making it a smart addition to any project focused on enhancing security and functionality.

5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.0in x 4.0in, Steel Base, 652/US26D Satin Chrome

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat

Resources

• Cut Sheet
