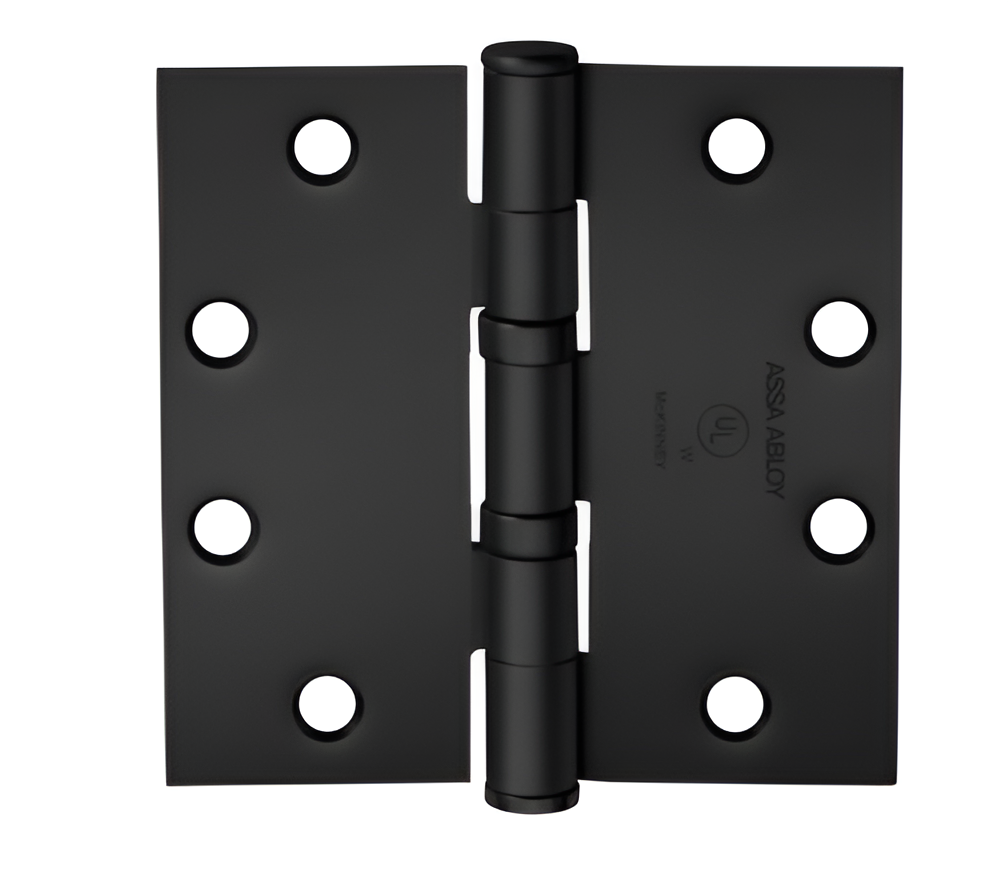

McKinney TA2714 4.5 X 4.5 BSP 5-Knuckle Hinge, Standard Weight, 4.5in x 4.5in, Black Suede Powder Coat

Mckinney Products Company TA2714 4.5 X 4.5 BSP 5-Knuckle Hinge is engineered to meet the demands of common flush door, frame, and wall applications. Crafted from durable steel and finished with a striking 622/BSP black suede powder coat, this standard weight hinge is perfect for medium frequency doors or those equipped with closing devices. Its full mortise design ensures a seamless installation that enhances both functionality and aesthetics. Featuring five knuckles, the TA2714 is designed with oil-impregnated bearings for smooth operation and longevity. The hinge is non-handed, allowing for versatile installation, and its square corner shape complements various architectural styles. Decorative tips add a refined touch, making it suitable for both commercial and residential environments. This hinge is compatible with a range of accessories, including Rockwood pulls, coat hooks, and door stops, providing the flexibility to customize your door hardware. The option for electrified hinges enhances security, effortlessly powering locking mechanisms while maintaining a clean appearance without external wires. Overall, the Mckinney Products Company TA2714 hinge is a reliable choice that combines style, strength, and functionality, making it an ideal solution for your next project.

5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.5in x 4.5in (4545), Steel Base, 622/BSP Black Suede Powder Coat

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
