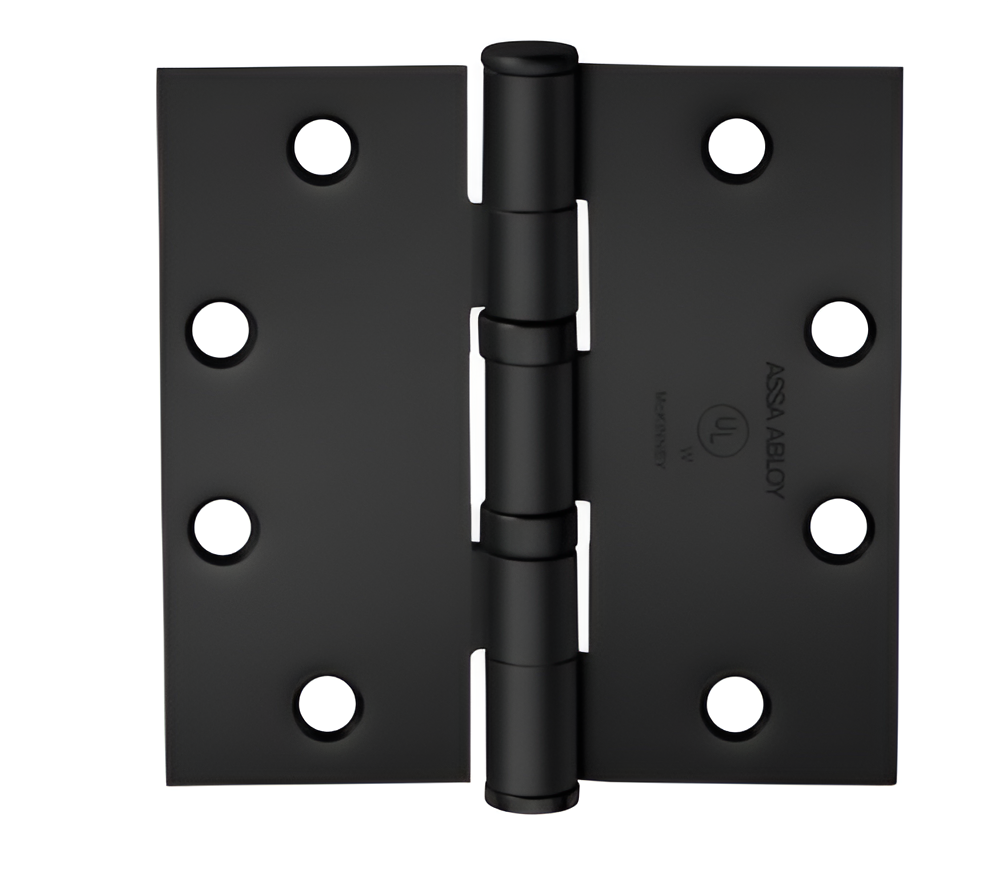

McKinney TA2714 4.5 X 4.5 BSP NRP 5-Knuckle Hinge, 4.5in x 4.5in, Steel, NRP, Black Suede Powder Coat

Mckinney Products Company TA2714 4.5 X 4.5 BSP NRP 5-Knuckle Hinge offers a reliable solution for a variety of flush door applications. Crafted from durable steel, this standard weight hinge is designed for full mortise installation, making it ideal for medium frequency doors or those equipped with closing devices. The oil-impregnated bearing ensures smooth operation, while the non-removable pin (NRP) enhances security by preventing unauthorized removal. With a square corner shape and non-handed design, the TA2714 is versatile enough to complement a range of architectural styles. Its sleek black suede powder coat finish not only adds aesthetic appeal but also provides added durability against wear and tear. The decorative tips give a refined touch to any doorway, aligning perfectly with Rockwood pulls, coat hooks, and door stops. This hinge is compatible with the hinge pin door stop, which helps protect against damage to both doors and walls. Additionally, electrified options are available for enhanced security measures, making it a practical choice for commercial settings. Elevate your door hardware with the Mckinney TA2714, where function meets style in a robust design built to last.

5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.5in x 4.5in (4545), Steel Base, (NRP) Non-Removable Pin, 622/BSP Black Suede Powder Coat

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
