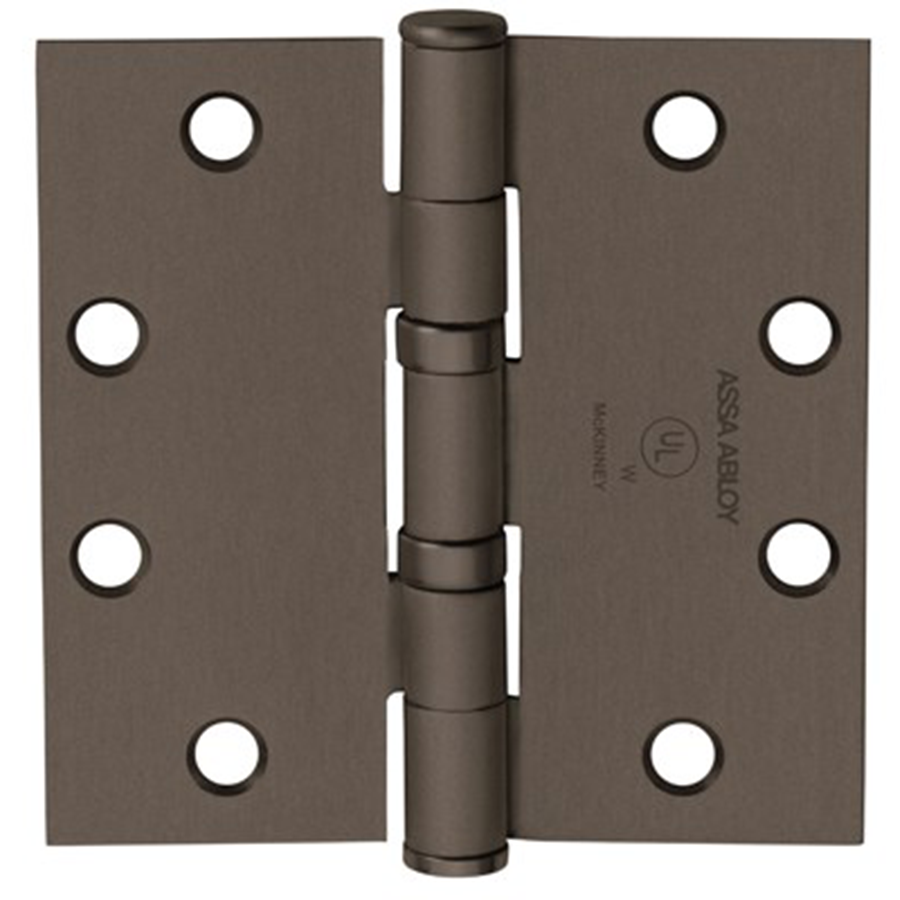

McKinney TA2714 4.5 X 4.5 US10BE NRP 5-Knuckle Hinge, 4.5"x4.5", Steel, NRP, Oil Bearing, Dark Oxidized Satin Bronze

Mckinney Products Company TA2714 4.5 X 4.5 US10BE NRP 5-Knuckle Hinge offers a reliable solution for your door needs with its standard weight and full mortise design. Measuring 4.5 inches by 4.5 inches, this steel base hinge is crafted to withstand the demands of medium frequency doors, making it ideal for both residential and commercial applications. Featuring a dark oxidized satin bronze finish (613E/US10BE), the TA2714 adds a touch of elegance while ensuring durability. The non-removable pin (NRP) enhances security, providing peace of mind against tampering. Its oil-impregnated bearing ensures smooth operation, making it perfect for doors equipped with closing devices. This hinge is designed for common flush door/frame/wall applications and includes decorative tips for aesthetic appeal. It pairs well with various decorative levers and is compatible with hinge pin door stops to prevent damage to doors and walls. Additionally, electrified options are available, integrating seamlessly with access control systems for enhanced security. With a square corner shape and non-handed design, the TA2714 is versatile and easy to install. Whether you're a building professional or a homeowner, this hinge is a dependable choice for your door hardware needs.

5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.5in x 4.5in (4545), Steel Base, (NRP) Non-Removable Pin, 613E/US10BE Dark Oxidized Satin Bronze

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
