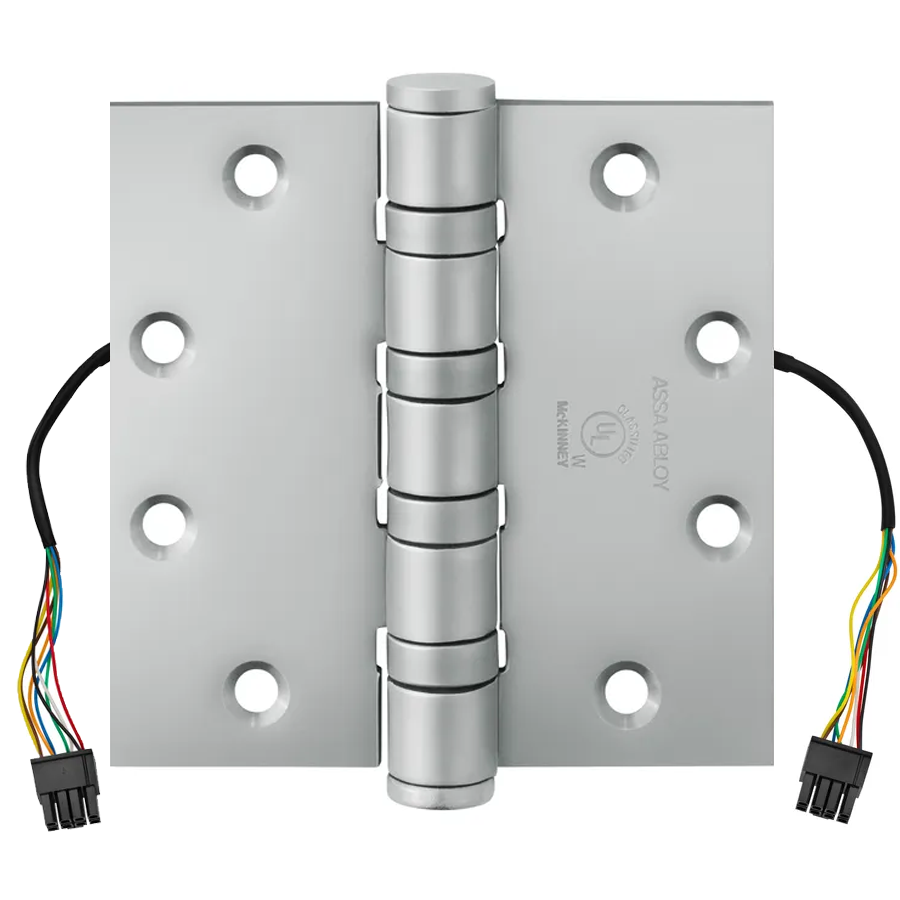

McKinney TA2714 4.5 X 4.5 US26D QC8 QC Electrified 8 Wire 5-Knuckle Hinge, 4.5in x 4.5in, Satin Chrome

Mckinney Products Company TA2714 4.5 X 4.5 US26D QC8 Quick Connect Electrified Hinge combines functionality with modern security features. This standard weight, five-knuckle hinge is designed for full mortise installations, making it ideal for common flush door and frame applications. Constructed from durable steel and finished in a sleek satin chrome (652/US26D), it not only enhances the aesthetic appeal of your doorways but ensures reliable performance. The TA2714 is equipped with oil-impregnated bearings that provide smooth operation and longevity. Its electrified capabilities allow for seamless integration with locking hardware and access control systems, ensuring your building's security is both effective and visually appealing. The hinge's design minimizes tampering risks by concealing external wires, while the optional sloped angle of the hospital tip discourages unwanted hanging. With a square corner shape and non-handed design, this hinge accommodates a range of applications. It pairs well with various Rockwood pulls, coat hooks, and door stops, while being compatible with hinge pin door stops to prevent damage to doors and walls. Elevate your security solutions with the Mckinney Products Company TA2714 hinge, where durability meets advanced technology.

Quick Connect Electrified (QC) 8 Wire Hinge, 5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 4.5in x 4.5in (4545), Steel Base, 652/US26D Satin Chrome

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat

Features

• Use for common flush door/frame/wall applications
• For Beveled Edge, where doors are beveled on hinge side, specify TA4314 or TA4714
• TA2714 and TA2714 NRP 4-1/2" x 4-1/2" in 26D are also available in convenient bulk packaging
