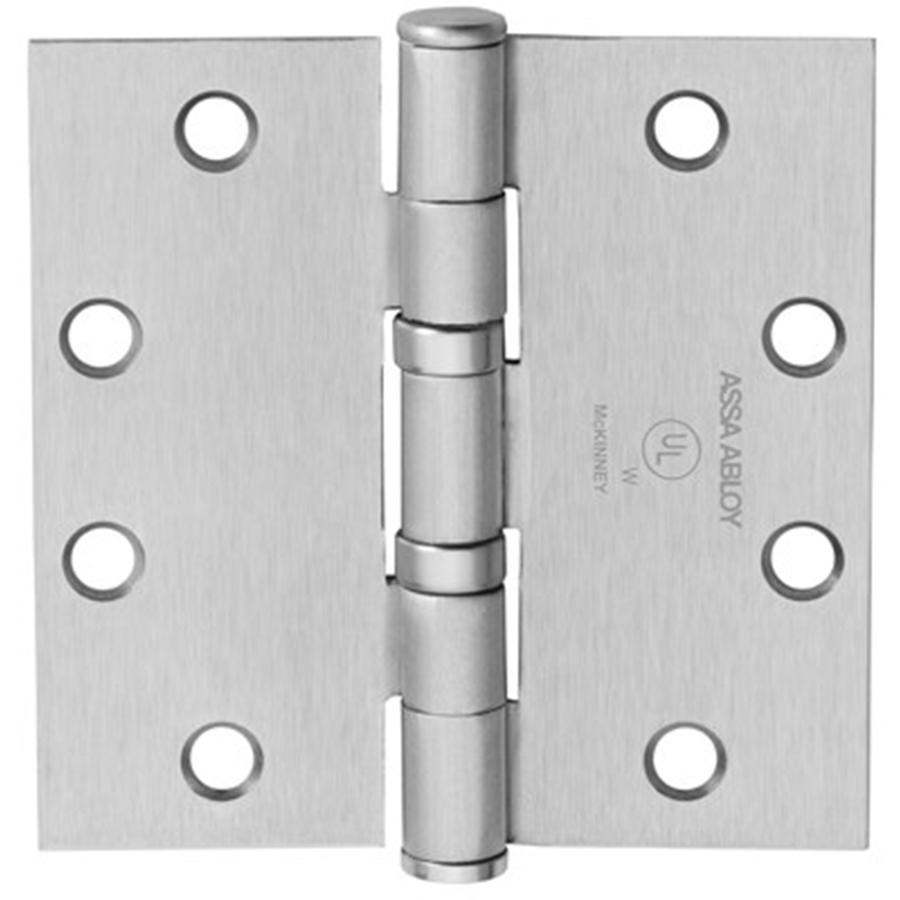

McKinney TA2714 5.0 X 4.5 US26D NRP 5-Knuckle Hinge, 5.0in x 4.5in, Steel, NRP, Satin Chrome, Oil Bearing

Mckinney Products Company TA2714 5.0 X 4.5 US26D NRP 5-Knuckle Hinge is engineered for durability and functionality, making it an ideal choice for standard weight, medium frequency doors. This full mortise hinge features a robust steel base and an oil-impregnated bearing, ensuring smooth operation and longevity. With a size of 5.0 inches by 4.5 inches, it seamlessly fits into common flush door, frame, and wall applications. The TA2714 hinge showcases a non-removable pin design, enhancing security while maintaining aesthetic appeal with its satin chrome finish. This decorative hinge is not only visually appealing but also practical, as it pairs well with a variety of door hardware, including Corbin Russwin and Sargent decorative levers. Designed with versatility in mind, this hinge is non-handed and features a square corner shape. It can accommodate electrified options, providing seamless power for locking hardware and access control while eliminating external wires that could be tampered with. Additionally, the TA2714 is compatible with hinge pin door stops, protecting both doors and walls from damage. Choose the Mckinney Products Company TA2714 for reliable performance and a polished look in any commercial or residential setting.

5-Knuckle Hinge, Standard Weight, Full Mortise, Oil Impregnated Bearing (TA), 5.0in x 4.5in (5045), Steel Base, (NRP) Non-Removable Pin, 652/US26D Satin Chrome

The TA2314 (stainless steel or brass) and TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

Features:

• For common flush door/frame/wall applications
• Decorative tips add aesthetic appeal to the opening
• Where doors are beveled edge on hinge side, specify TA4314 or TA4714
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
• Electrified options offered
• Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
• Decorative (except 3-1/2" and 6" sizes) and hospital tips available
• Suites with Rockwood pulls, coat hooks, and door stops
• Multiple bearing options provided
• Pairs well with Corbin Russwin and Sargent decorative levers
• Compatible with the hinge pin door stop, which protects against damage to doors and walls

Specifications:

• Corner Shape: Square
• Handing: Non-handed
• Hinge Bearing Type: Oil impregnated bearing

Models:

• TA2714:
• Description: Standard weight full mortise five knuckle hinge
• ANSI No: A8112
• Base Material: Steel
• Weight: Standard weight
• TA2314:
• Description: Non-ferrous standard weight five knuckle bearing
• ANSI No: A5112, A2112
• Base Material: Brass or stainless
• Weight: Heavy weight

Finishes:

• 632/US3 - Bright brass plated, clear coated
• 633/US4 - Satin brass plated, clear coated
• 638/US5 - Satin brass plated, blackened, satin relieved, clear coated
• 637/US9 - Bright bronze plated, clear coated
• 639/US10 - Satin bronze plated, clear coated
• 641/US10A - Oxidized satin bronze plated, relieved, clear coated
• 613/US10B - Dark oxidized satin bronze, oil rubbed
• 613E/US10BE - Dark oxidized satin bronze-equivalent
• 645/US14 - Bright nickel plated, clear coated
• 646/US15 - Satin nickel plated, clear coated
• 651/US26 - Bright chromium plated over nickel
• 652/US26D - Satin chromium plated over nickel
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless steel
• BSP - Black suede powder coat
