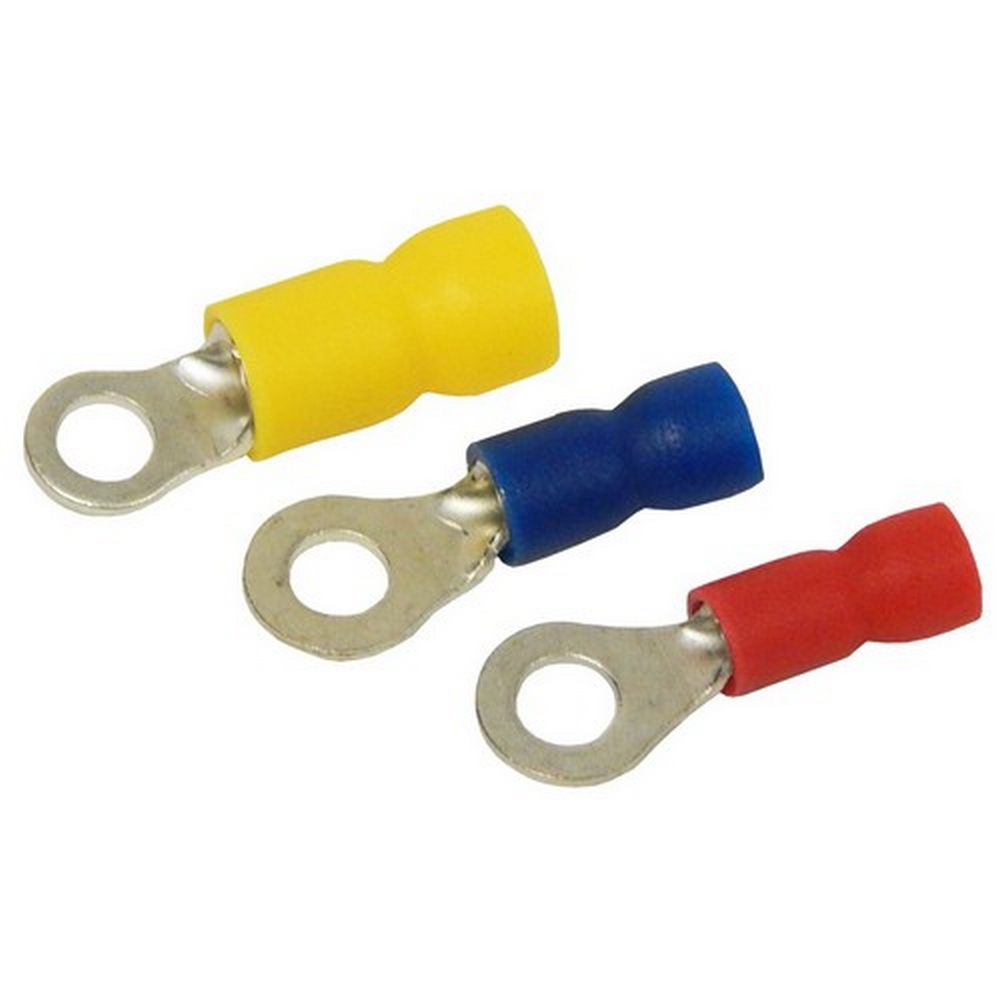

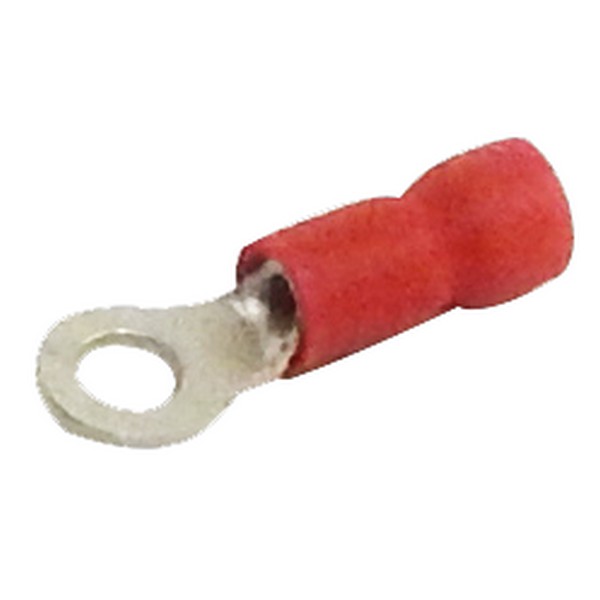

Morris 01012 Ring-style Wiring Terminals - Quick and Easy to Use

Morris 01012 Ring-style Wiring Terminals offer a reliable and efficient solution for your electrical connections. Designed with vinyl insulation, these terminals feature color-coded insulation that aids in quick identification, streamlining your workflow. Each terminal is manufactured from high-strength copper alloy and is electro-tin plated to ensure exceptional corrosion resistance, making them suitable for both indoor and outdoor applications. The easy-entry expanded insulation design eliminates strand "hang up," which not only increases crimping rates but also provides robust mechanical strain relief for secure connections. With wire sizes clearly stamped on the surface, interpreting specifications is straightforward, allowing for quick and accurate installation. The terminal barrel features a butted seam and serrated barrel design, delivering excellent electrical contact and resistance to pull-out forces. Rated for a maximum voltage of 600 volts and a temperature of 167°F (75°C), these terminals accommodate a range of wire sizes from 22 AWG to 16 AWG, with current ratings up to 50 amps for 10 AWG wire. Each pack comes in convenient Zip Lock plastic bags, complete with a punched hole for easy pegboard hanging. The Morris 01012 Ring-style Wiring Terminals are cULus listed, ensuring compliance with industry standards.

Our Ring-style Wiring Terminals are quick and easy to use.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Manufactured from high strength Copper Alloy
• 167°F (75°C) 600 Volts Max
• Ring terminals are Vinyl Insulated
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance
