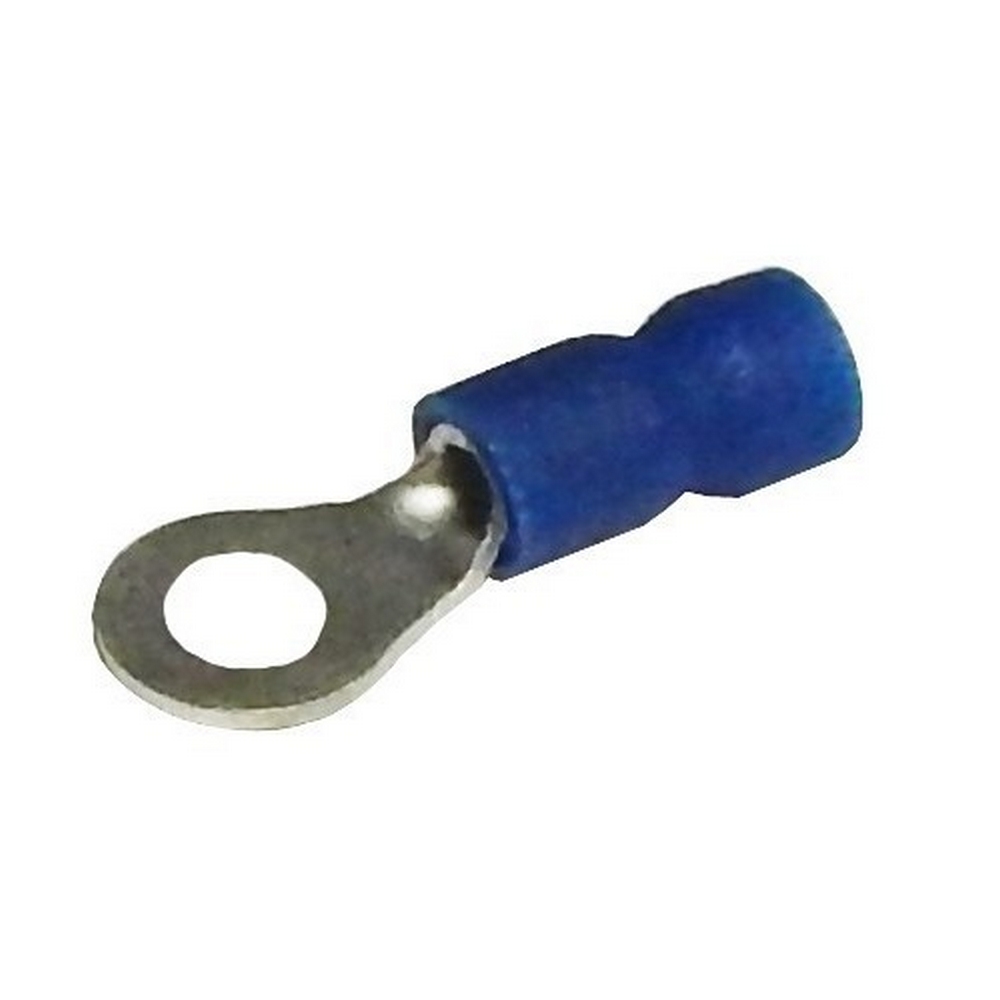

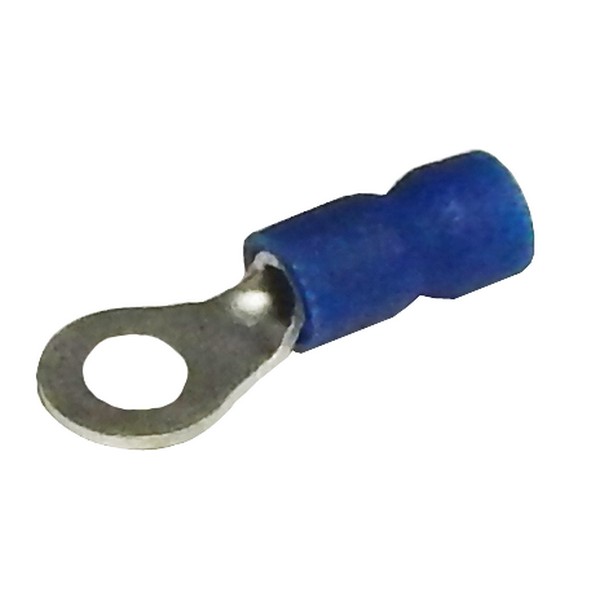

Morris 01038 Ring-style Wiring Terminals - Quick and Easy to Use

Morris 01038 Ring-style Wiring Terminals offer a reliable and efficient solution for your electrical connection needs. Designed with user convenience in mind, these vinyl insulated ring terminals feature color-coded insulation, allowing for quick identification and reducing installation time. Constructed from high-strength copper alloy and electro-tin plated, they ensure excellent corrosion resistance, making them ideal for various applications. The easy entry expanded insulation eliminates strand "hang up," which enhances crimping rates and provides mechanical strain relief for secure connections. Each terminal is stamped with the wire range for straightforward interpretation, while the serrated barrel design guarantees superior electrical contact and resistance to pull-out forces. Suitable for a wide range of wire sizes, the terminals can handle 600 volts maximum and are rated for current capacities ranging from 9 amps for 22 AWG to 50 amps for 10 AWG. With a 1/4" stud size and cULus listing, these terminals are packed in convenient zip lock plastic bags with a punched hole for easy pegboard hanging. Morris 01038 Ring-style Wiring Terminals are the ideal choice for professionals and knowledgeable homeowners seeking reliability and performance in their electrical projects.

Our Ring-style Wiring Terminals are quick and easy to use.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Manufactured from high strength Copper Alloy
• 167°F (75°C) 600 Volts Max
• Ring terminals are Vinyl Insulated
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
