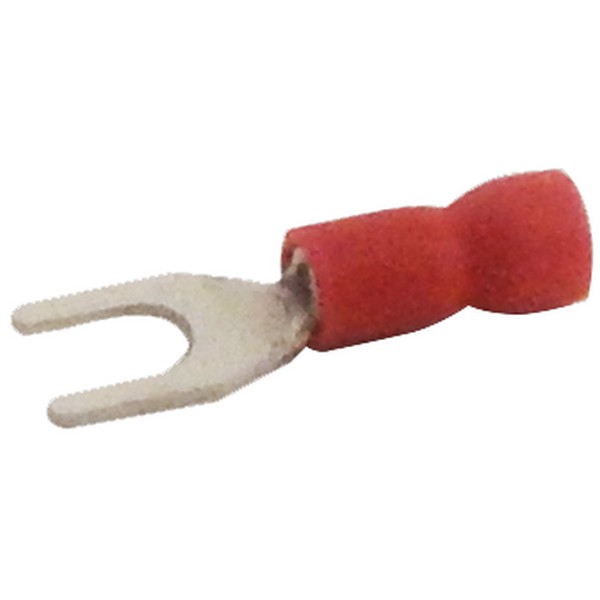

Morris 01112 Fork/Spade Wiring Terminals for Electricians

Morris 01112 Fork/Spade-type Wiring Terminals are essential components for any professional electrician. Designed with a focus on durability and performance, these vinyl-insulated terminals feature color-coded insulation that allows for quick and easy identification during installation. Crafted from high-strength electrolytic copper alloy and electro-tin plated, they provide exceptional corrosion resistance, ensuring a long-lasting connection. The terminals boast an easy entry expanded insulation design which eliminates strand hang-up, significantly increasing crimping rates while providing reliable mechanical strain relief. Each terminal barrel is constructed with a butted seam and serrated barrel, enhancing electrical contact and resistance against pull-out forces. The wire range is stamped directly on the surface, simplifying interpretation during use. With a maximum temperature rating of 167°F (75°C) and 600 volts, these terminals can handle various wire sizes, accommodating up to 50 amps for 10 AWG wire. Designed for versatility, they come packed in convenient zip-lock plastic bags, complete with a punched hole for easy pegboard hanging. Morris 01112 Fork/Spade-type Wiring Terminals are cULus listed, offering peace of mind for both safety and compliance in any electrical application.

These Fork/Spade-type Wiring Terminals are a must for any electrician.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Fork/Spade terminals are Vinyl Insulated
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• 167°F (75°C) 600 Volts Max
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Manufactured from high strength electrolytic Copper Alloy

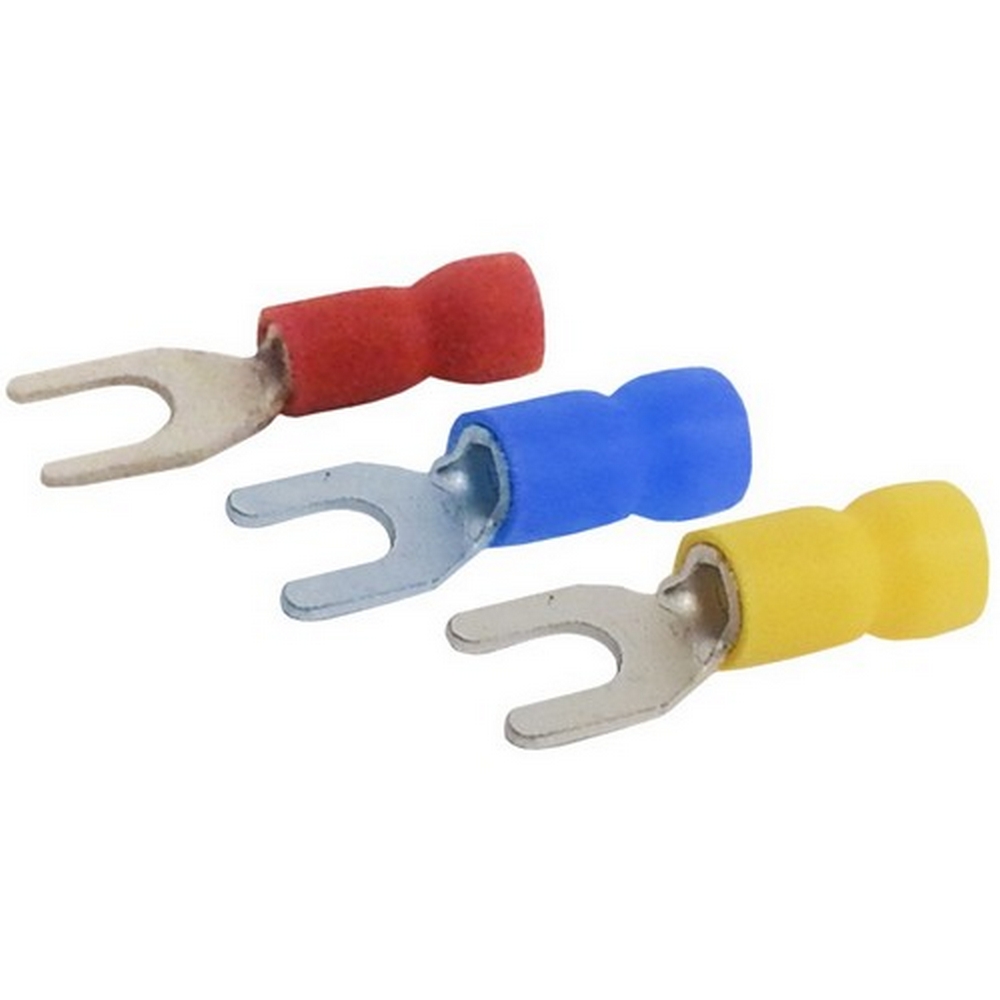

• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance
