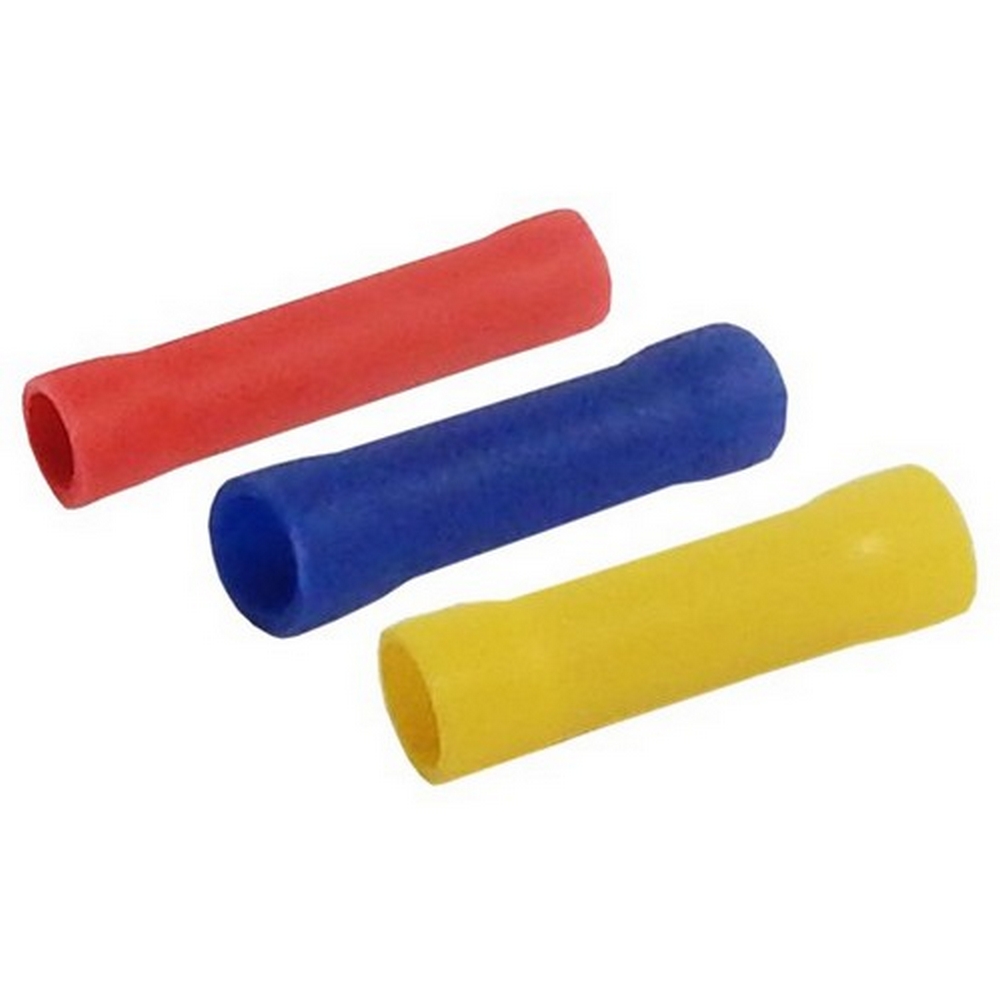

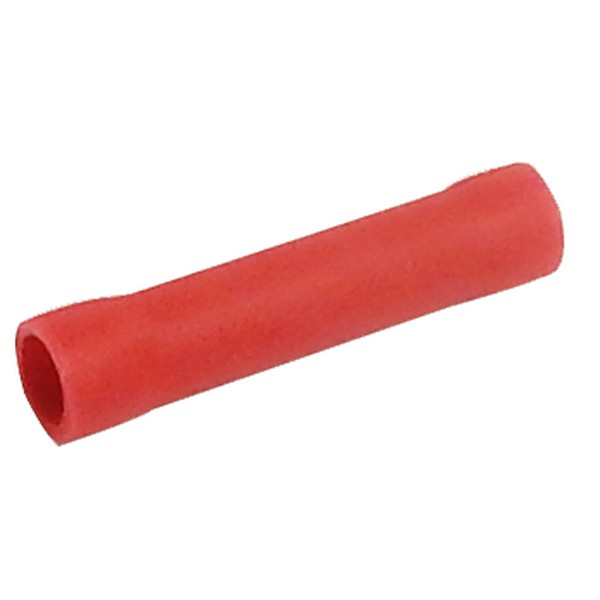

Morris 01182 Vinyl Insulated Butt Splices for Restocking Supplies

Morris 01182 Vinyl Insulated Butt Splices are an essential addition to your electrical supply inventory, designed to simplify your wiring tasks with reliability and efficiency. These butt splice terminals feature vinyl insulation that is color-coded for easy identification, ensuring that your connections are both secure and straightforward to manage. Manufactured from high-strength electrolytic copper alloy, these splices offer exceptional conductivity, while the electro-tin plating provides important corrosion resistance, enhancing their durability over time. The easy-entry expanded insulation design minimizes strand "hang-up," which not only increases crimping rates but also provides essential mechanical strain relief, promoting long-lasting connections. Each terminal barrel is equipped with a butted seam for added strength, and they are rated for a maximum of 600 volts at 167°F (75°C). The maximum electric current capacity varies by wire size: 22 AWG (9 Amps), 20 AWG (12 Amps), 18 AWG (17 Amps), 16 AWG (18 Amps), 14 AWG (30 Amps), 12 AWG (35 Amps), and 10 AWG (50 Amps). Packaged in zip-lock plastic bags with a punched hole for pegboard hanging, the Morris 01182 Butt Splices are cULus listed, providing the assurance you need for high-quality electrical connections.

Restock your supplies with these Vinyl Insulated Butt Splices.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• cULus Listed
• 167°F (75°C) 600 Volts Max
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Manufactured from high strength electrolytic Copper Alloy
• Color Coded insulation for easy identification
• Butt Splice terminals are Vinyl Insulated
• Electro-Tin Plated for corrosion resistance
