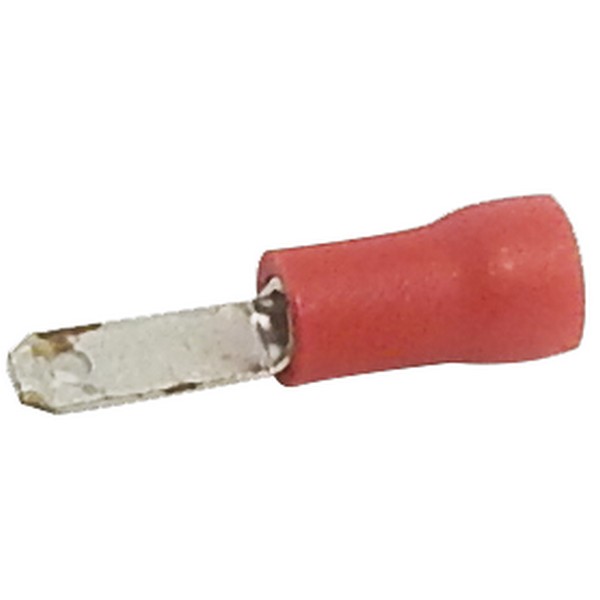

Morris 01212 Vinyl Insulated Male Disconnects Refill Pack

Morris 01212 A refill pack of Vinyl Insulated Male Disconnects is designed to meet the demands of both professional electricians and skilled DIYers. These male quick disconnect terminals are crafted with vinyl insulation, which not only provides color-coded identification for ease of use but also enhances safety and reliability during installations. Manufactured from high-strength brass and electro-tin plated, these disconnects offer exceptional corrosion resistance, ensuring longevity in various applications. The easy-entry expanded insulation helps eliminate strand hang-up, which improves crimping rates and enhances mechanical strain relief. Each terminal barrel features a butted seam and serrated design, ensuring excellent electrical contact and resistance to pull-out forces. Compatible with a wire size range of 22 AWG to 16 AWG, these terminals can handle a maximum electric current from 3 Amps for 22 AWG up to 24 Amps for 10 AWG, making them versatile for a wide range of electrical tasks. Each pack is conveniently stored in zip-lock plastic bags, equipped with a punched hole for easy pegboard hanging. Certified with cULus listing, these disconnects prioritize safety and performance, making them a reliable choice for any electrical project.

A refill pack of Vinyl Insulated Male Disconnects.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• 167°F (75°C) 300 Volts Max
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Wire range and tab size stamped on the surface for easy interpretation
• Male Quick Disconnect Terminals are Vinyl Insulated
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
