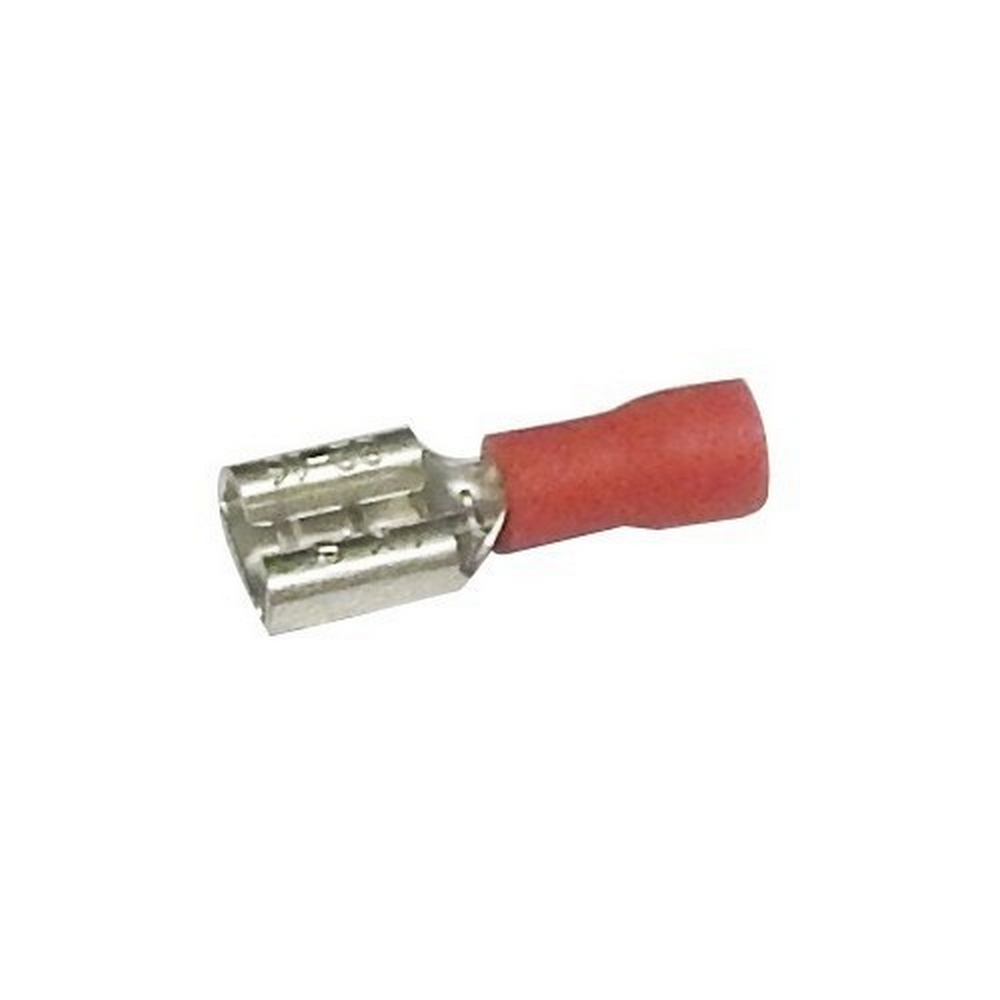

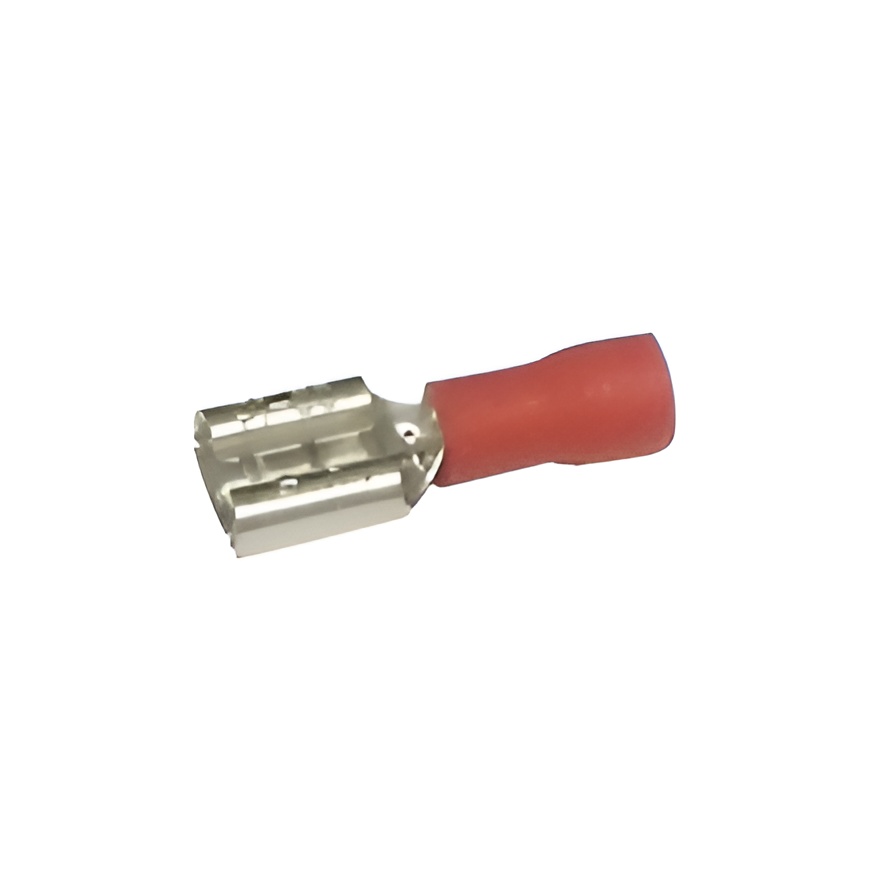

Morris 01312 Vinyl Insulated Female Disconnects Refill Pack

Morris 01312 A refill pack of Vinyl Insulated Female Disconnects offers a reliable solution for your electrical connection needs. Designed with vinyl insulation, these female quick disconnect terminals ensure safe and efficient operation. The color-coded insulation allows for easy identification, streamlining your installation process. Crafted from high-strength brass and electro-tin plated, these disconnects provide excellent corrosion resistance, ensuring longevity and performance in various applications. The easy-entry expanded insulation design eliminates strand "hang-up," increasing crimping rates and delivering mechanical strain relief. With wire range and tab size conveniently stamped on the surface, interpreting specifications is straightforward. Each terminal features a butted seam in the barrel for added durability, while the serrated barrel maximizes electrical contact and resists pull-out forces. These disconnects are rated for a maximum of 300 volts, with current ratings from 3 amps for 22 AWG to 24 amps for 10 AWG, making them versatile for a range of wiring needs. Morris 01312 is cULus listed, ensuring compliance with safety standards. Each pack is conveniently packaged in zip-lock bags with a punched hole for easy pegboard hanging, making organization and access effortless. Upgrade your electrical projects with these dependable disconnect terminals.

A refill pack of Vinyl Insulated Female Disconnects.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• 167°F (75°C) 300 Volts Max
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Wire range and tab size stamped on the surface for easy interpretation
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Female Quick Disconnect Terminals are Vinyl Insulated
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
