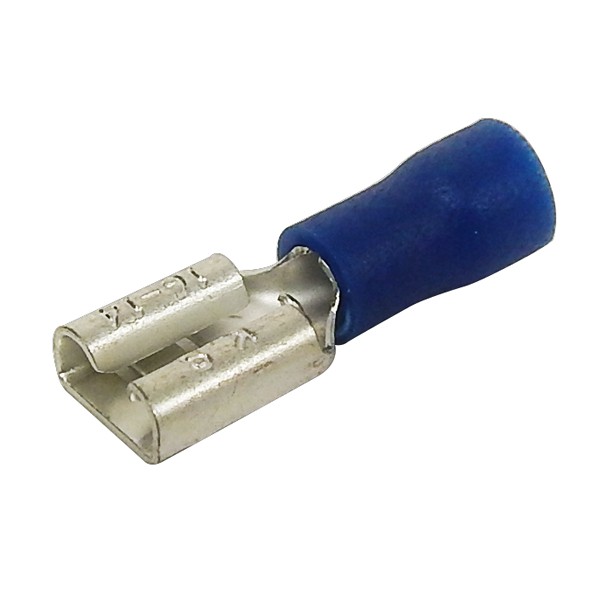

Morris 01324 Vinyl Insulated Female Disconnects Refill Pack

Morris 01324 A refill pack of Vinyl Insulated Female Disconnects offers a reliable solution for your electrical connection needs. These female quick disconnect terminals are designed with vinyl insulation, ensuring safety and durability. The color-coded insulation simplifies identification, making it easy for professionals and DIY enthusiasts alike to select the right terminal for the job. Manufactured from high-strength brass and electro-tin plated, these disconnects resist corrosion, enhancing longevity in various environments. The easy entry expanded insulation minimizes strand "hang up," which not only improves crimping rates but also provides robust mechanical strain relief. Each terminal features a butted seam barrel, while the serrated barrel design guarantees excellent electrical contact and resists pull-out forces, ensuring a secure connection. With a temperature rating of 167°F (75°C) and a maximum voltage of 300 volts, these terminals cater to a wide range of wire sizes, accommodating from 22 AWG up to 10 AWG with respective current ratings from 3 to 24 amps. Each pack is conveniently packed in zip lock plastic bags, featuring a punched hole for easy pegboard hanging. cULus listed for added assurance, the Morris 01324 disconnects are a top choice for any electrical task.

A refill pack of Vinyl Insulated Female Disconnects.

• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• 167°F (75°C) 300 Volts Max
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Wire range and tab size stamped on the surface for easy interpretation
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Female Quick Disconnect Terminals are Vinyl Insulated
• Electro-Tin Plated for corrosion resistance
