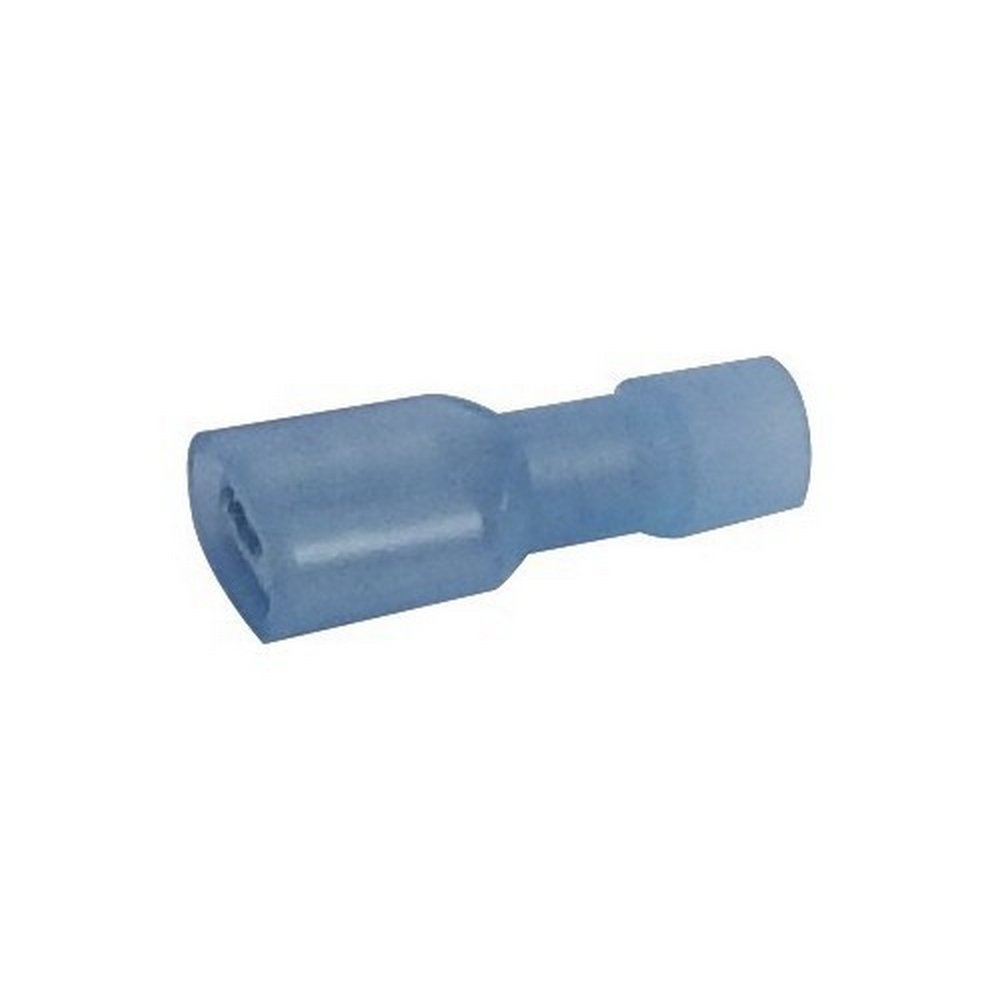

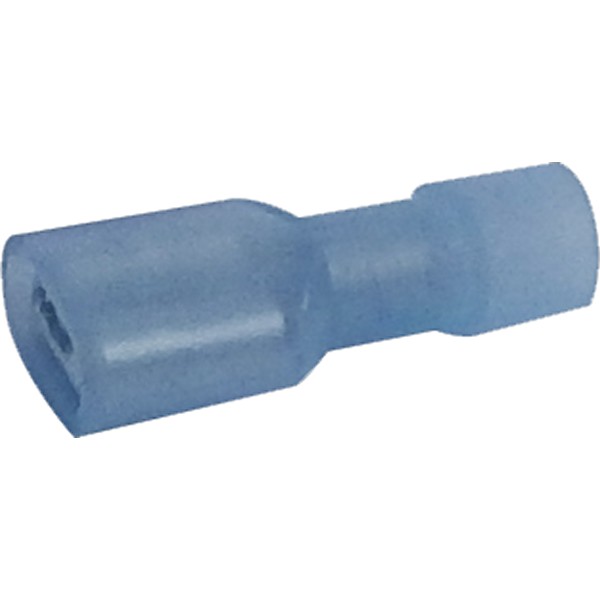

Morris 01412 Nylon Insulated Disconnects - Restock Your Supply

Morris 01412 Nylon Insulated Disconnects are an essential addition to your electrical supply, providing reliable connectivity for a variety of applications. These fully insulated male and female quick disconnect terminals feature durable nylon insulation, ensuring safety and efficiency during use. The color-coded insulation allows for easy identification, streamlining your installation process. Crafted from high-strength brass and electro-tin plated for superior corrosion resistance, these disconnects are built to last. The easy-entry expanded insulation design eliminates strand "hang up," enhancing crimping rates and delivering mechanical strain relief. With a butted seam in the terminal barrel and serrated design, they offer excellent electrical contact and resistance to pull-out forces. Suitable for wire sizes ranging from 16 AWG to 14 AWG, these terminals can handle electric currents of up to 15 amps. Rated for a maximum of 300 volts and with an operating temperature of 221°F (105°C), they are a versatile choice for both residential and commercial projects. Each pack comes in convenient zip-lock plastic bags with a punched hole for easy pegboard hanging, making organization simple. cULus Listed, the Morris 01412 Disconnects are a reliable choice for your electrical needs while ensuring compliance with safety standards.

Restock your supply of Nylon Insulated Disconnects.

• 221°F (105°C) 300 Volts Max
• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Male and Female Quick Disconnect Fully Insulated Terminals feature Nylon Insulation
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
