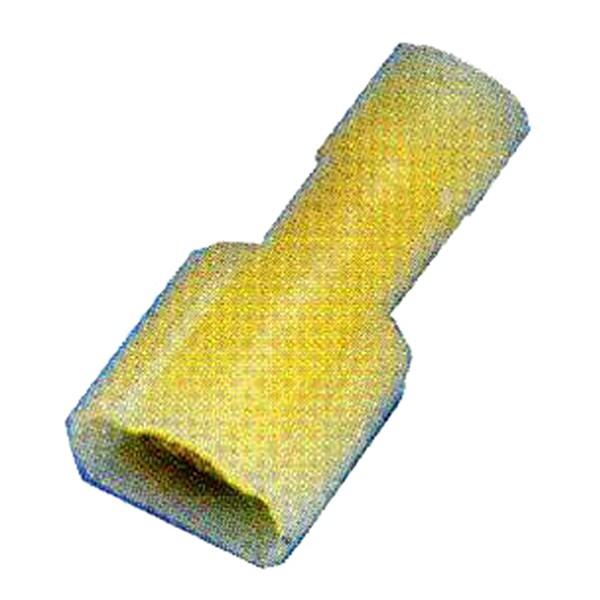

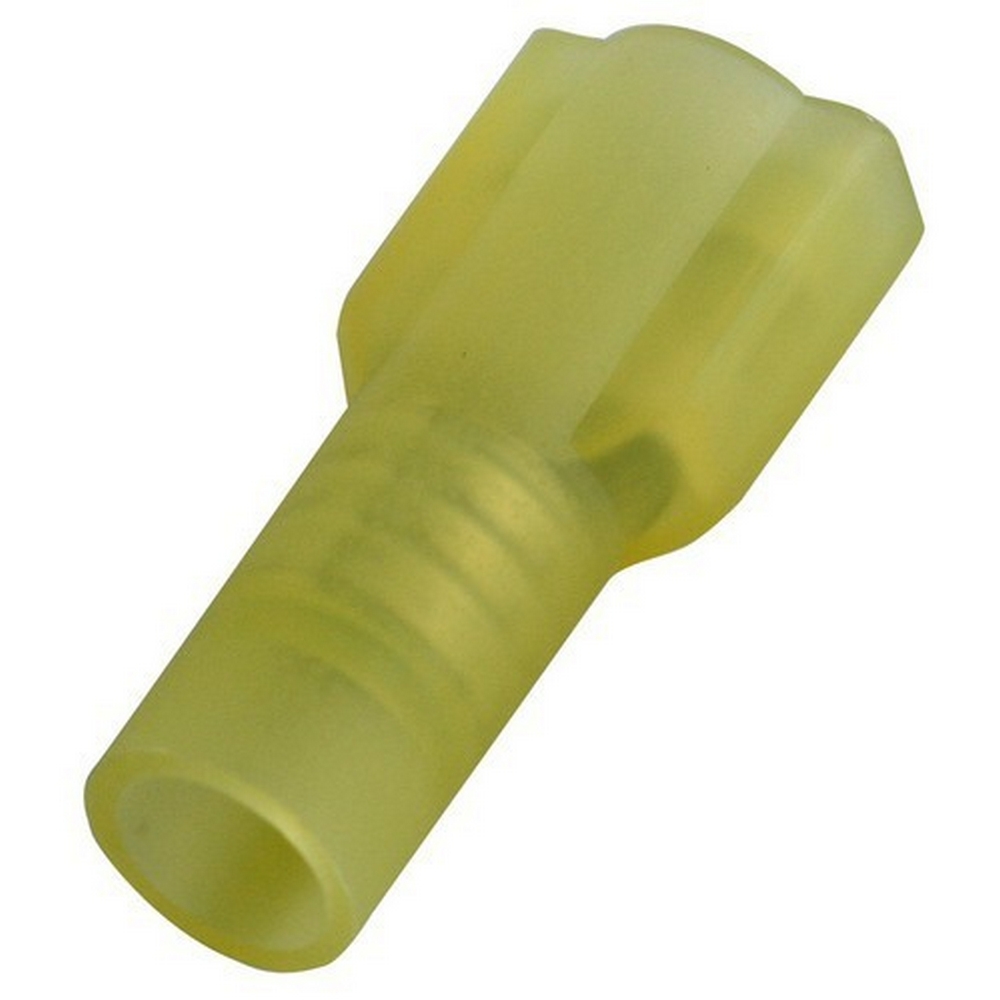

Morris 01414 Nylon Insulated Disconnects - Restock Your Supply

Morris 01414 Nylon Insulated Disconnects are designed to enhance your electrical connections with efficiency and reliability. These male and female quick disconnect terminals feature durable nylon insulation, providing superior protection and ease of use. The color-coded insulation allows for quick identification, simplifying the installation process. Constructed from high-strength brass and electro-tin plated, these disconnects are built to resist corrosion, ensuring longevity in various applications. The easy-entry expanded insulation design eliminates strand "hang-up," which not only increases crimping rates but also offers mechanical strain relief, enhancing the overall integrity of your connections. The terminal barrel incorporates a butted seam and a serrated barrel, delivering excellent electrical contact while resisting pull-out forces. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 300 Volts, these disconnects accommodate a range of wire sizes, supporting maximum electric current ratings from 3 Amps for 22 AWG to 24 Amps for 10 AWG. Each unit is cULus listed for safety and reliability. Packaged conveniently in zip lock plastic bags with a punched hole for pegboard hanging, the Morris 01414 is an essential addition to any electrical toolkit.

Restock your supply of Nylon Insulated Disconnects.

• 221°F (105°C) 300 Volts Max
• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Male and Female Quick Disconnect Fully Insulated Terminals feature Nylon Insulation
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
