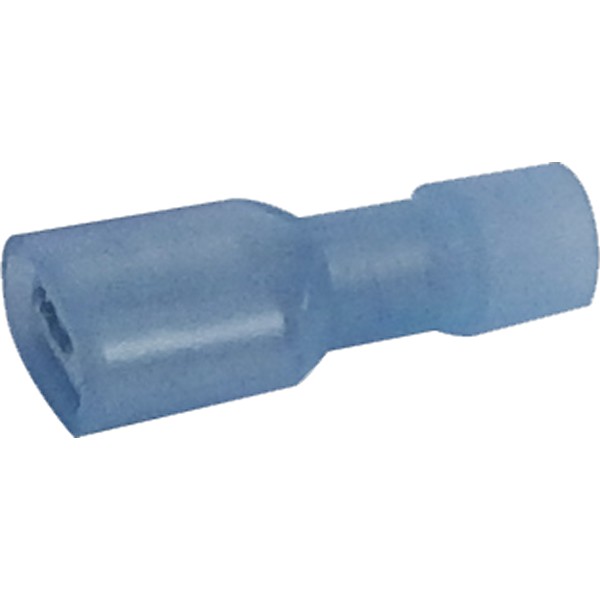

Morris 01416 Nylon Insulated Disconnects - Restock Your Supply

Morris 01416 Nylon Insulated Disconnects are the perfect solution to enhance your wiring projects with reliability and ease. These male and female quick disconnect terminals feature robust nylon insulation, ensuring safety and durability in various applications. The color-coded insulation allows for quick identification, making installation more efficient. Constructed from high-strength brass and electro-tin plated, these disconnects provide excellent corrosion resistance, ensuring long-lasting performance even in challenging environments. The design includes an easy entry expanded insulation that minimizes strand hang-up, significantly increasing crimping rates while providing mechanical strain relief. With a serrated barrel that guarantees superior electrical contact and resistance to pull-out forces, these terminals are engineered to meet demanding electrical standards. They are rated for a maximum voltage of 300 Volts and can handle varying electric currents based on wire size, from 3 Amps for 22 AWG to 24 Amps for 10 AWG. Additionally, the Morris 01416 disconnects are cULus listed for safety compliance and are conveniently packaged in zip-lock plastic bags with a punched hole for easy pegboard hanging. Enhance your electrical projects with the reliability and efficiency of Morris Nylon Insulated Disconnects.

Restock your supply of Nylon Insulated Disconnects.

• 221°F (105°C) 300 Volts Max
• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Male and Female Quick Disconnect Fully Insulated Terminals feature Nylon Insulation
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
