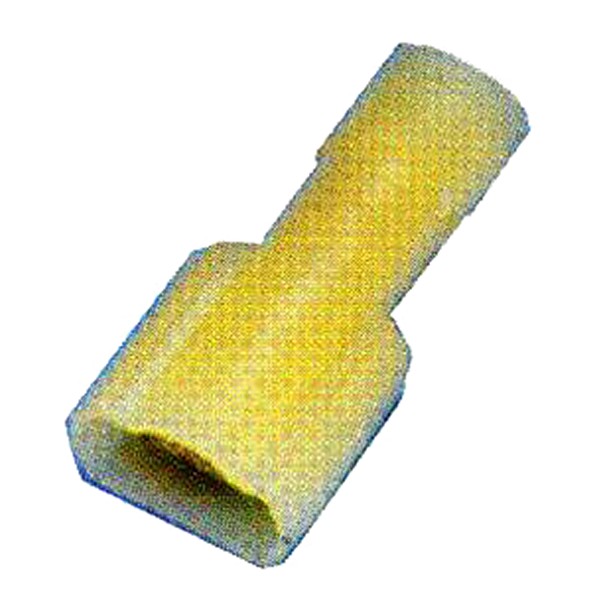

Morris 01418 Nylon Insulated Disconnects - Restock Your Supply

Morris 01418 Nylon Insulated Disconnects are an essential addition to your electrical supply, designed for efficient and reliable connections. These male and female quick disconnect terminals feature robust nylon insulation, ensuring safety and ease of use. The color-coded insulation allows for quick identification, helping streamline your wiring tasks. Constructed from high-strength brass and electro-tin plated, these disconnects offer excellent corrosion resistance, making them ideal for various environments. The innovative expanded insulation design eliminates strand "hang up," significantly increasing crimping rates while providing mechanical strain relief. Additionally, the terminal barrels feature butted seams and serrated barrels, ensuring exceptional electrical contact and minimizing pull-out forces. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 300 volts, these disconnects can handle varying electrical demands. They support a range of current ratings based on wire size, accommodating up to 24 amps for 10 AWG wire. The product is cULus listed, ensuring it meets stringent safety standards. Packed in convenient zip-lock plastic bags with a punched hole for pegboard hanging, the Morris 01418 Nylon Insulated Disconnects are not only functional but also easy to store and access. Ensure your projects run smoothly with these reliable disconnects from Morris Products.

Restock your supply of Nylon Insulated Disconnects.

• 221°F (105°C) 300 Volts Max
• Packed in Zip Lock plastic bags with punched hole for pegboard hanging
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Male and Female Quick Disconnect Fully Insulated Terminals feature Nylon Insulation
• Manufactured from high strength Brass
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
