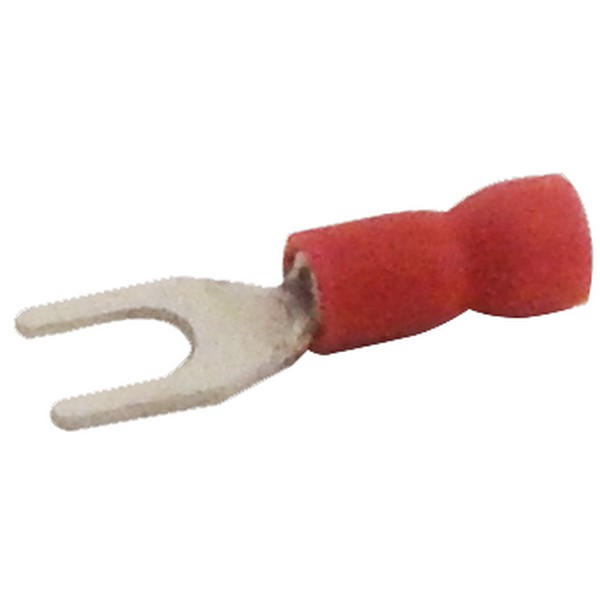

Morris 10116 Vinyl Insulated Fork/Spade Terminals

Morris 10116 Fork/Spade Terminals are designed with vinyl insulation for enhanced safety and reliability in electrical applications. These terminals feature color-coded insulation, allowing for quick and easy identification, which is crucial for efficient wiring tasks. Manufactured from high-strength copper alloy, they ensure durability and longevity, while the electro-tin plating provides exceptional corrosion resistance, making them suitable for various environments. The easy-entry expanded insulation design reduces strand "hang-up," facilitating a smoother crimping process and offering mechanical strain relief. Each terminal is marked with the wire range on its surface, simplifying the interpretation of compatibility. The butted seam construction of the terminal barrel enhances structural integrity, and the serrated barrel design ensures excellent electrical contact with resistance to pull-out forces. With a maximum temperature rating of 167°F (75°C) and 600 volts, these terminals handle a wide range of electrical currents-up to 50 amps for 10 AWG wire. The Morris 10116 Fork/Spade Terminals are cULus listed, guaranteeing compliance with safety standards. Ideal for both professional electricians and knowledgeable homeowners, these terminals combine quality, performance, and ease of use for all your wiring needs.

These Fork/Spade Terminals are Vinyl Insulated.

• Maximum Electrical Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps

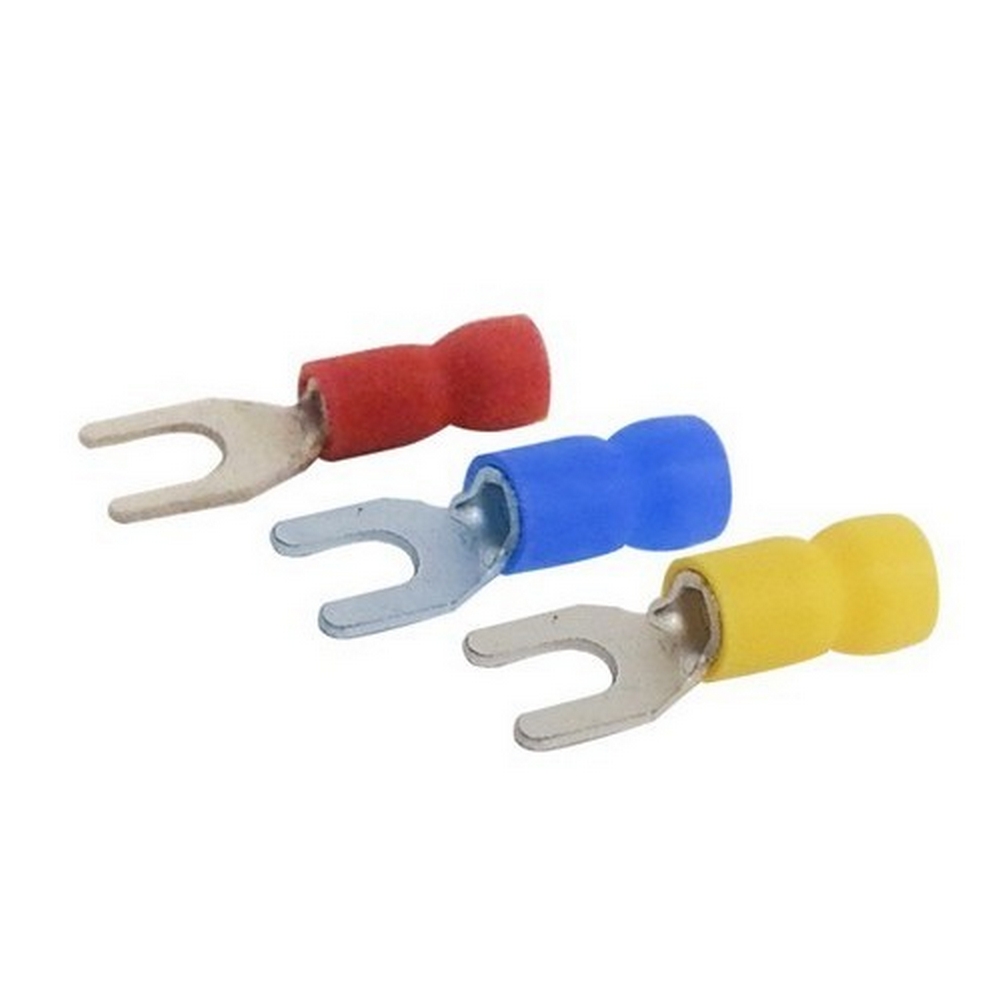

• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 167°F (75°C) 600 Volts Max
• Fork/Spade Terminals are Vinyl Insulated
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• Manufactured from High Strength Copper Alloy
• Electro-Tin Plated for corrosion resistance
