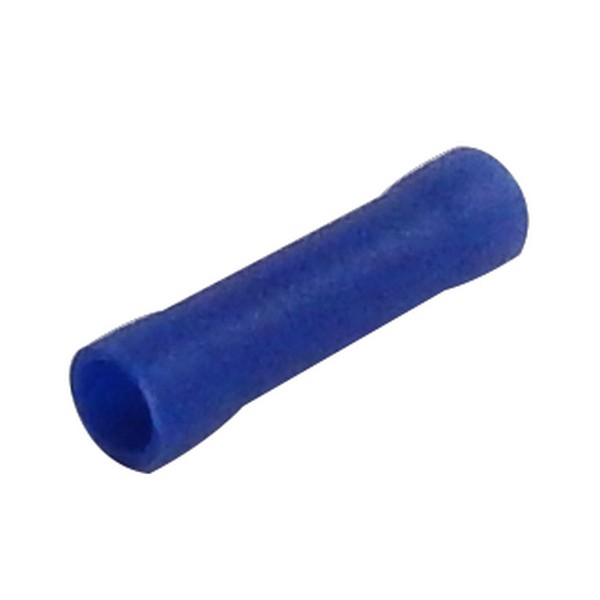

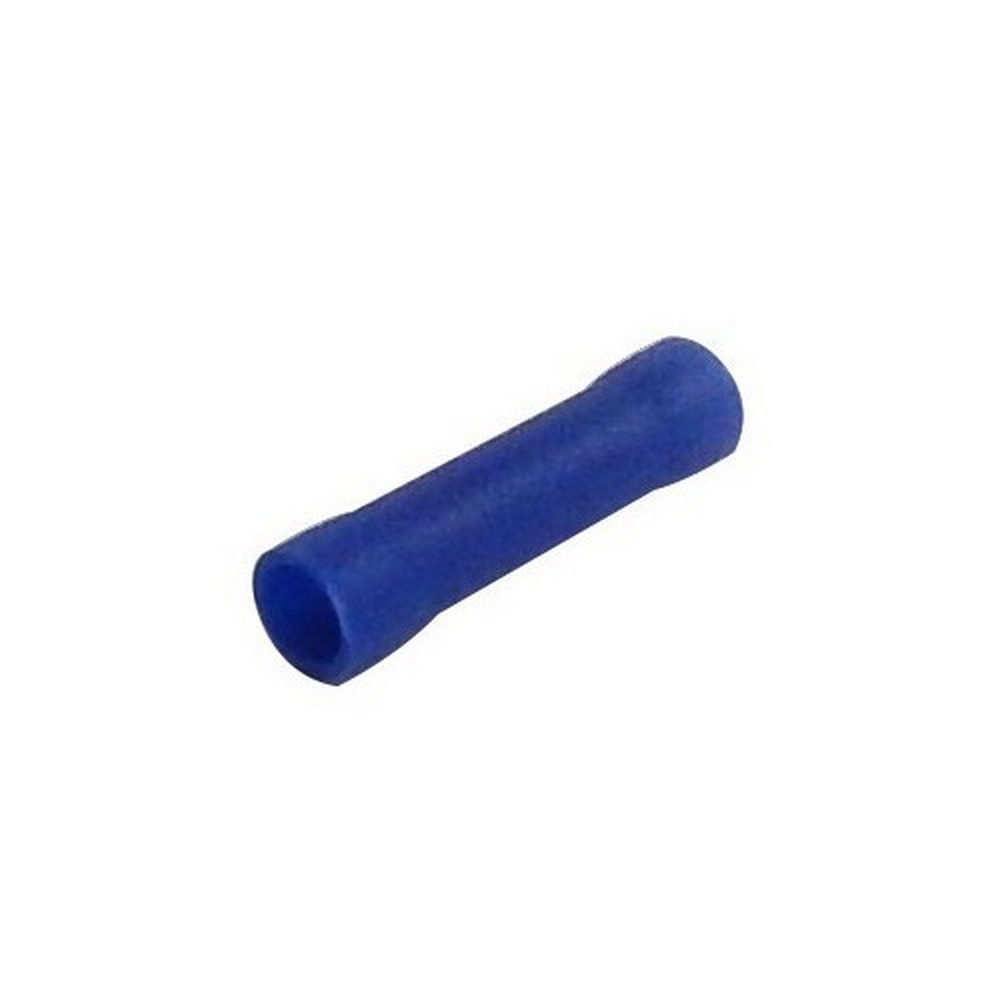

Morris 10184 Vinyl Insulated Butt Splice Connectors - Restock with Us

Morris 10184 Vinyl Insulated Butt Splice Connectors are essential for professionals looking to ensure reliable electrical connections. Crafted from high-strength electrolytic copper plate or tubular copper, these connectors are electro-tin plated for enhanced corrosion resistance, making them ideal for both indoor and outdoor applications. Featuring a center wire stop barrier, these connectors facilitate easier wire insertion and reduce the likelihood of strand "hang up," ultimately increasing crimping rates. The color-coded insulation simplifies identification, ensuring a streamlined installation process. Designed to handle a wide range of wire sizes, the connectors support maximum electric currents from 5.5 amps for 26 AWG up to 170 amps for 2 AWG, making them versatile for various projects. With a temperature rating of 167°F (75°C) and a maximum voltage of 600 volts, the Morris 10184 connectors are suitable for demanding environments. Additionally, they are cULus listed, providing peace of mind regarding safety and compliance. Whether you're a contractor or a knowledgeable homeowner, these connectors deliver reliability and efficiency, making them an indispensable addition to your electrical toolkit. Ensure your projects maintain high standards with Morris Products, your trusted partner for electrical and lighting components.

Restock your Vinyl Insulated Butt Splice Connectors with us.

• Has Center Wire Stop Barrier
• Color Coded Insulation for easy identification
• 167°F(75°C) 600 Volts Max
• cULus Listed
• Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps, 2 AWG - 170 Amps
• High Strength Electrolytic Copper Plate or Tubular Copper
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
