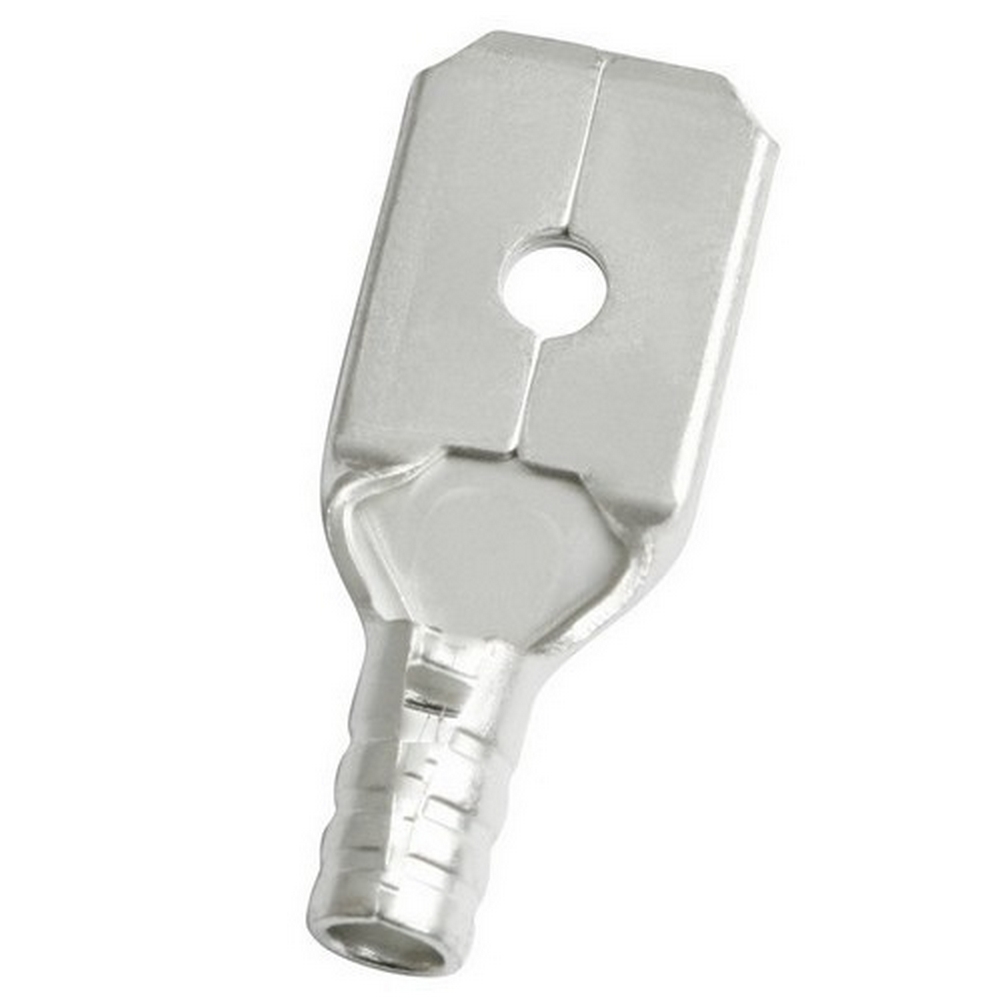

Morris 10242 Male Non-Insulated Double Crimp Disconnects are designed for a wide range of electrical applications, ensuring reliable connections and ease of use. Manufactured from high-strength brass, these disconnects feature an electro-tin plating that provides excellent corrosion resistance, enhancing their durability in various environments. The brazed seam further reinforces their structural integrity, making them ideal for both residential and commercial projects. Each disconnect is stamped with the wire range on its surface, allowing for quick and easy identification during installation. The extended serrated barrel ensures superior electrical contact while resisting pull-out forces, providing confidence in your connections. With a double crimp design and an extended copper sleeve, these disconnects allow for multiple secure crimps, accommodating a variety of wire sizes. Morris 10242 disconnects are rated for a maximum temperature of 302°F (150°C) and can handle up to 600 volts. They support a range of wire gauges from 22 AWG to 10 AWG, with corresponding current ratings from 3 to 24 amps. Certified by cULus, these disconnects meet rigorous safety standards, making them a trustworthy choice for your electrical needs. Choose Morris 10242 for dependable performance in any application.
Male Non-Insulated Double Crimp Disconnects for a variety of electrical applications.
Country of Origin: Taiwan
Description: Non-Insulated Double Crimp Male Disconnects 22-16 Wire, .032 x .250 Tab
Finish: Electro-Tin Plated
Insulation Type: Non
Material: Copper
Maximum Current: 18A
Maximum Voltage: 600 Volts
NEMA TAB: .032" x .250"
Stud Size: .032 x .250
Style: Male
Tab Size: .032 x .250
Temperature Rating: 3020F
Terminal Type: Disconnect
Type: Non-Insulated Male Disconnects
Ul Listing: cULus
Upc: 601986102421
Warning: Cancer and Reproductive Harm
Wire Size: 22-16
