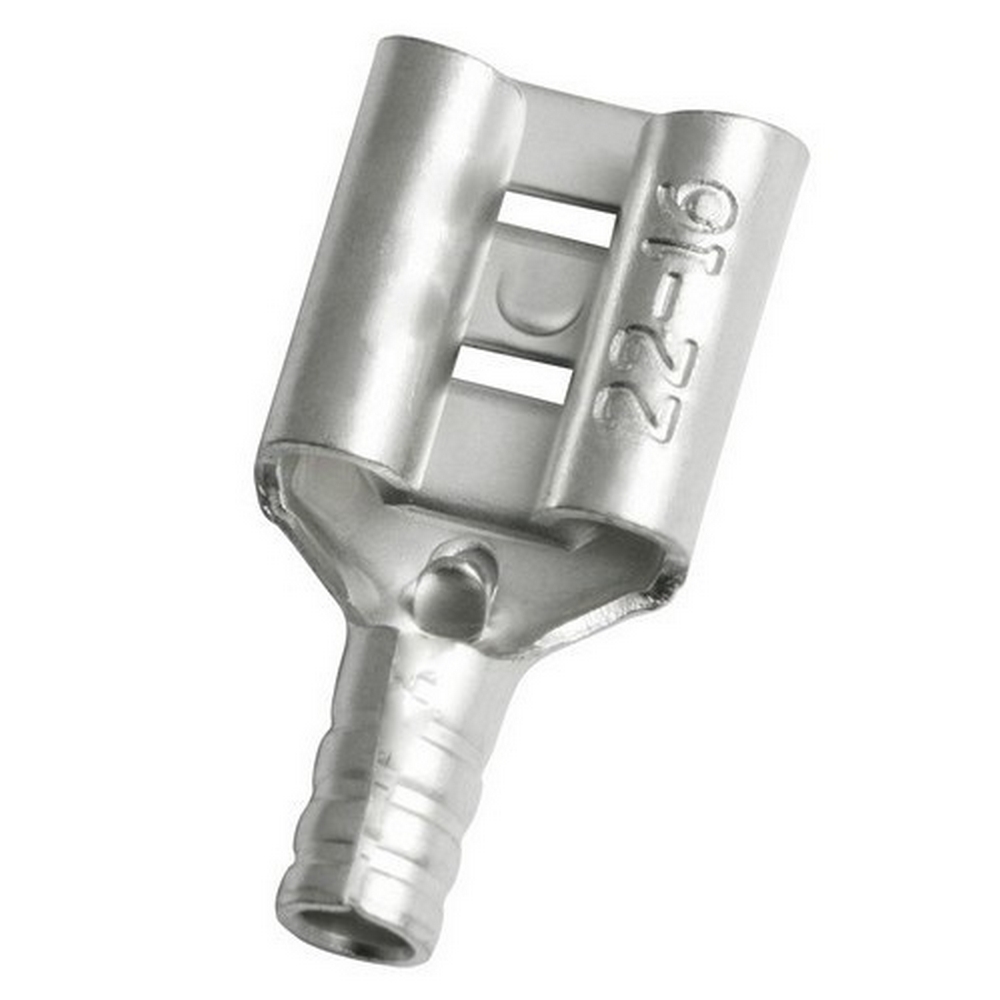

Morris 10251 Female Non-Insulated Double Crimp Disconnects provide a reliable solution for a variety of electrical applications. Crafted from high-strength brass, these disconnects are designed to endure demanding conditions while maintaining optimal performance. The electro-tin plating enhances their resistance to corrosion, ensuring longevity and reliability in both residential and commercial settings. Featuring a brazed seam, these disconnects deliver enhanced durability. The wire range is conveniently stamped on the surface, allowing for quick and easy identification during installation. With an extended serrated barrel, they offer superior electrical contact and exceptional resistance to pull-out forces, making them a great choice for secure connections. The double crimp design includes an extended copper sleeve, facilitating multiple crimping points for greater strength and reliability. These disconnects can handle a wide range of wire sizes from 12 AWG to 10 AWG, supporting maximum electric currents of up to 24 amps, making them versatile enough for various applications. Rated for 600 volts and able to withstand temperatures up to 302°F (150°C), the Morris 10251 disconnects are cULus listed, ensuring compliance with safety standards. Whether you’re a building professional or a knowledgeable homeowner, these disconnects are an essential addition to your electrical toolkit.
Female Non-Insulated Double Crimp Disconnects for a variety of electrical applications.
Country of Origin: Taiwan
Description: Non-Insulated Double Crimp Female Disconnects 12-10 Wire, .032 x .250 Tab
Finish: Electro-Tin Plated
Insulation Type: Non
Material: Copper
Maximum Current: 50A
Maximum Voltage: 600 Volts
NEMA TAB: .032" x .250"
Stud Size: .032 x .250
Style: Female
Tab Size: .032 x .250
Temperature Rating: 3020F
Terminal Type: Disconnect
Type: Non-Insulated Female Disconnects
Ul Listing: cULus
Upc: 601986102513
Warning: Cancer and Reproductive Harm
Wire Size: 12-10
