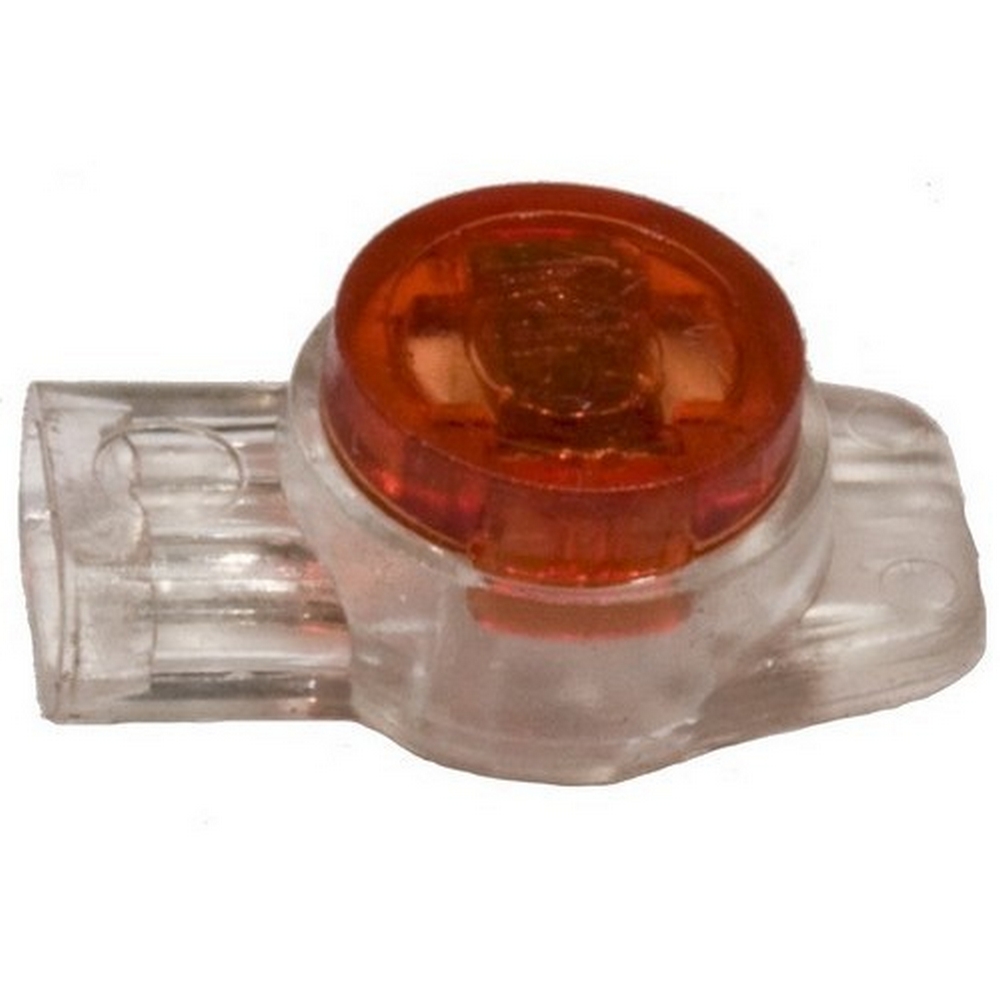

Morris 10765 3-Port Copper Wire Splice Connector

Morris 10765 3 Port Cable Connector offers a reliable solution for quickly splicing into copper wire. This innovative connector features three ports, allowing for efficient wire butt splice connections that tap into service lines in readily accessible cases. Ideal for various applications, it excels in pedestal mounts, pigtail joints, and load coils, such as toll cable splicing. Engineered with IDC (Insulation Displacement Connector) technology, this product ensures fast and secure splicing with minimal effort. The corrosion-resistant gel sealant provides superior protection against moisture, safeguarding connections from potential damage. Designed specifically for low voltage telecommunication cables, the Morris 10765 enables quick, one-step splicing, making it a must-have for professionals in the field. Suitable for solid copper single-conductor wire with a wire range of 19-26, this connector complies with industry standards, including REA PE-52 and TIA/EIA 568-A Par 10.4.4 CAT-5. The striking red color ensures easy identification in any installation environment. Additionally, the product ships via UPS for convenient delivery. For a dependable and efficient splicing solution, trust the Morris 10765 3 Port Cable Connector to enhance your wiring projects with ease and reliability.

3 Port Cable Connector for quickly splicing into Copper Wire.

• Complies with TIA/EIA 568-A Par 10.4.4 CAT-5 Std
• Quick, easy one-step splicing
• IDC connectors create fast splice and tap
• Use with solid copper single-conductor wire
• Designed for low voltage telecommunication cables
• Complies with REA PE-52
• Moisture-resistant sealant protects wires from corrosion
• 3 port wire butt splice taps onto service lines in ready access cases for pedestal mounts, pigtail joints or tap onto load coils such as toll cable splicing
• Corrosion resistant gel sealant to protect connection
