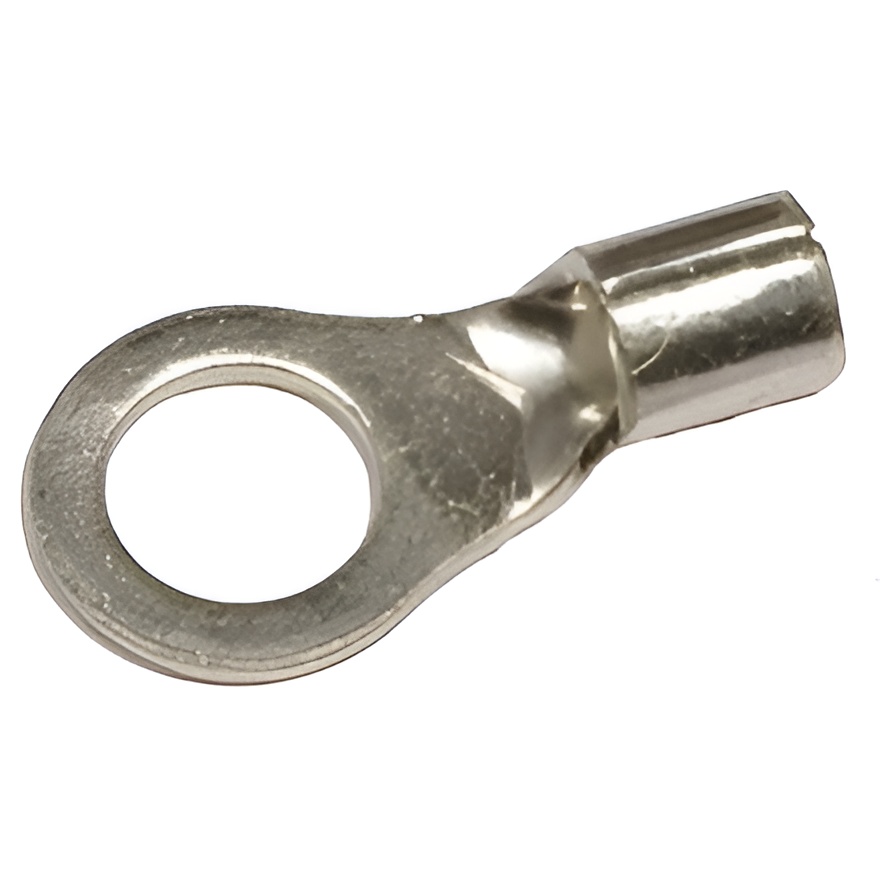

Morris 11042B Non-Insulated Electrical Wiring Terminals for Terminations

Morris 11042B Non-Insulated Wiring Terminals are designed for reliable electrical terminations in various applications. Manufactured from high-strength electro-tin plated copper, these terminals ensure excellent conductivity and durability. The brazed seam construction enhances mechanical strength, providing a secure connection that resists pull-out forces. Equipped with a serrated barrel, the Morris 11042B ensures outstanding electrical contact, making it an ideal choice for professional electricians and knowledgeable homeowners alike. These terminals can handle a maximum voltage of 600 volts and a high temperature rating of 302°F (150°C), which allows for dependable performance in demanding environments. The terminals accommodate a wide range of wire sizes from 16 AWG to 2 AWG, supporting electrical currents from 9 amps up to an impressive 170 amps, depending on the wire gauge. This versatility makes them suitable for various applications, whether in residential, commercial, or industrial settings. The Morris 11042B is cULus listed, ensuring compliance with stringent safety standards. With a stud size of 1/4", these terminals are ready to ship via UPS for your convenience. Trust in Morris Products for quality electrical components that deliver performance and peace of mind in every connection.

Non-Insulated Wiring Terminals for Electrical Terminations.

• Serrated Barrel with Brazed Seam provides Excellent Electrical Contact & resistance to pull-out forces
• cULus Listed
• Brazed Seam
• 302°F(150°C) 600 Volts Max
• Maximum Electrical Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps, 2 AWG - 170 Amps
• Non-Insulated Ring Terminal Material: High Strength Electro-Tin Plated Copper
