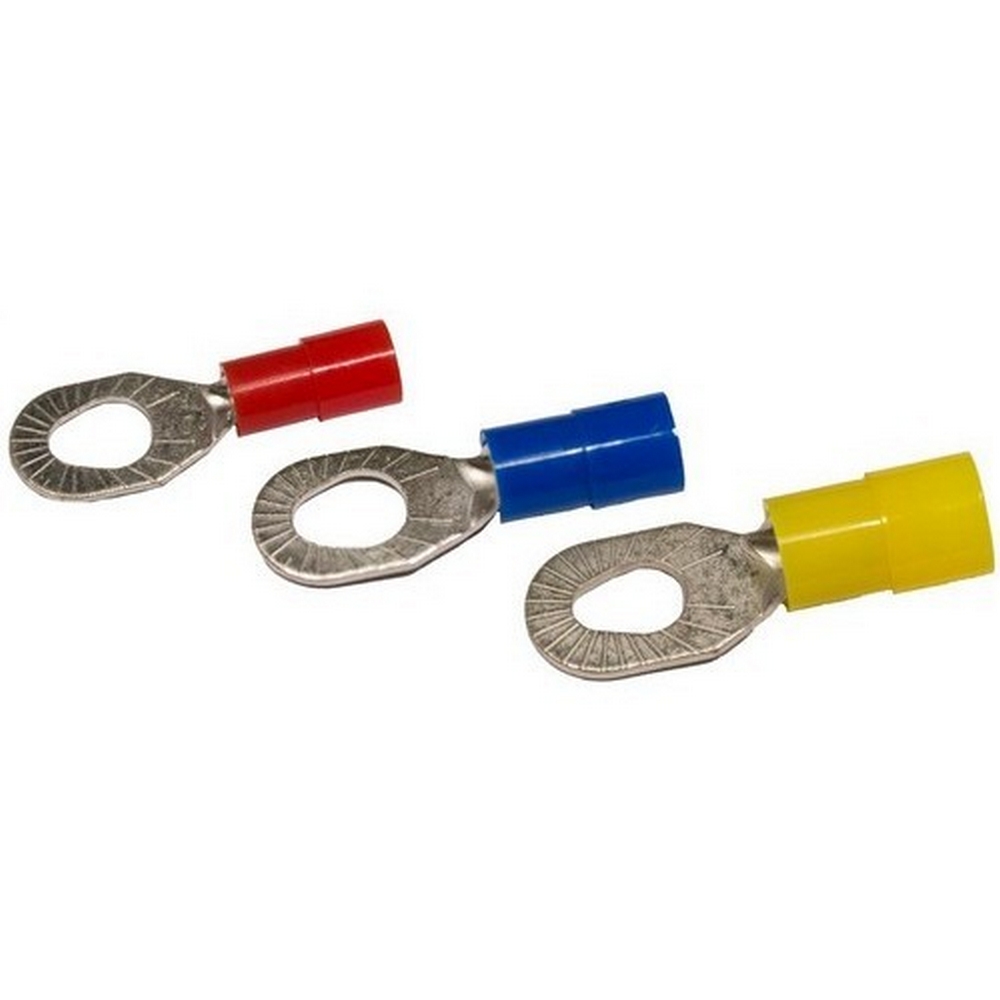

Morris 11462 Nylon Insulated Multi-Stud Ring Terminals

Morris 11462 Multi-Stud Ring Terminals are designed to meet the diverse needs of electrical installations with their robust nylon insulation and versatile stud size compatibility. These ring terminals accommodate multiple stud sizes-#6, #8, and #10-making them an ideal choice for various applications. The color-coded insulation allows for quick identification, streamlining your installation process. Crafted from high-strength copper alloy, these terminals are electro-tin plated to ensure exceptional corrosion resistance, prolonging their lifespan and reliability. The easy entry expanded insulation design minimizes strand "hang-up," significantly enhancing crimping rates while providing mechanical strain relief. For added convenience, the wire range is clearly stamped on the surface for quick interpretation, ensuring accurate use every time. Featuring a brazed seam in the terminal barrel, these ring terminals offer superior strength and performance. The serrated barrel design provides excellent electrical contact and resistance to pull-out forces, delivering dependability under load. Rated for 221°F (105°C) and 600 volts maximum, these terminals are cULus Listed, ensuring compliance with industry safety standards. Trust Morris 11462 Multi-Stud Ring Terminals for a reliable connection that stands the test of time.

Our Multi-Stud Ring Terminals are Nylon Insulated.

• Multi-Stud Ring terminals feature Nylon Insulation & accommodates multiple stud sizes
• Color Coded Insulation for easy identification
• Terminal Barrel has Brazed Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Wire range stamped on the surface for easy interpretation
• Manufactured from High Strength Copper Alloy
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
