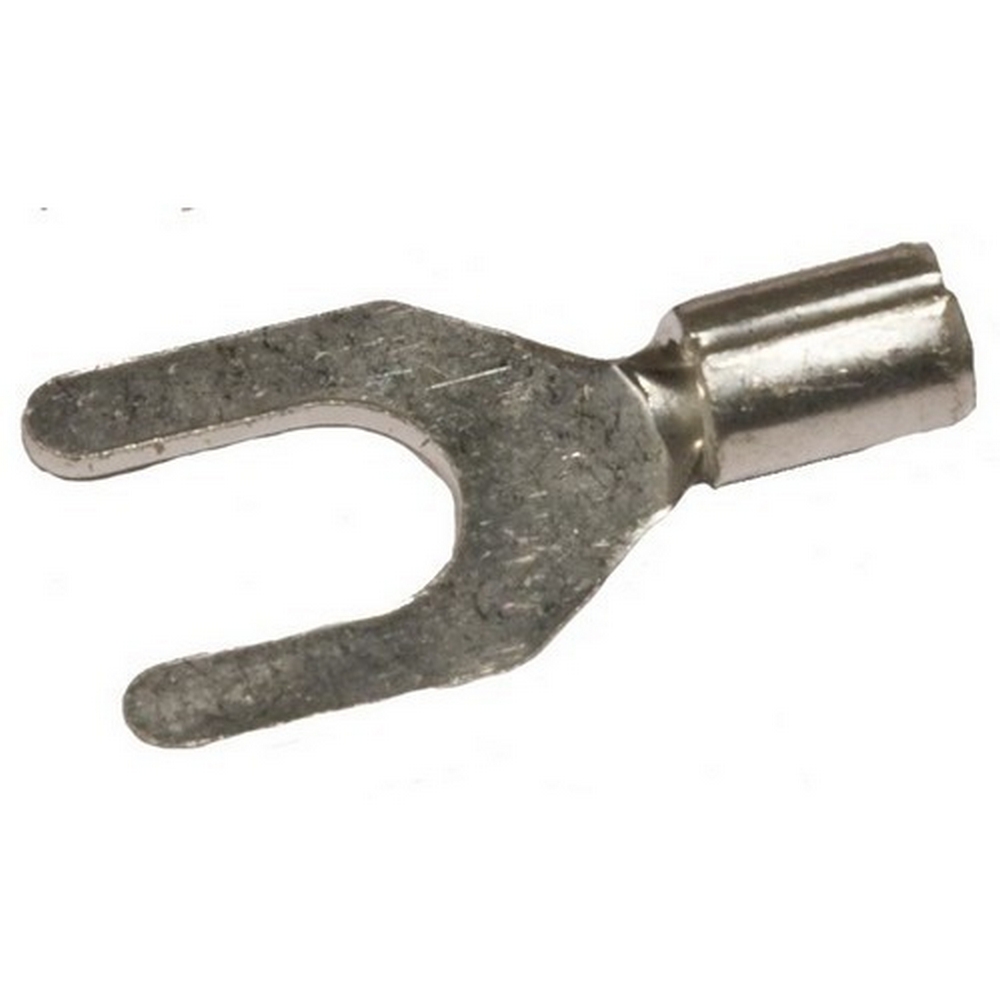

Morris 11524 Non-Insulated Fork/Spade Terminals - Convenient Alternative to Rings

Morris 11524 Non-Insulated Fork/Spade Terminals offer a practical alternative to traditional ring terminals, making them an excellent choice for various electrical applications. Constructed from high-strength electrolytic copper, these terminals feature a serrated barrel with a brazed seam, ensuring superior electrical contact and resistance to pull-out forces. The electro-tin plating enhances durability and corrosion resistance, ensuring long-lasting performance in demanding environments. Designed to handle a maximum voltage of 600 volts, these terminals are suitable for a range of wire sizes from 16 AWG to 14 AWG, accommodating current ratings between 18 and 30 amps. This versatility makes them ideal for both residential and commercial projects. With a temperature rating of up to 302°F (150°C), they can withstand high heat without compromising functionality. Morris 11524 terminals are cULus listed, providing peace of mind regarding safety and compliance with industry standards. The #6 stud size allows for easy installation, making these terminals user-friendly for professionals and knowledgeable homeowners alike. Whether you’re working on electrical systems, lighting fixtures, or industrial applications, Morris 11524 Non-Insulated Fork/Spade Terminals deliver reliability and performance you can count on.

Non-Insulated Fork/Spade Terminals area Convenient Alternative to Ring Terminals.

• 302°F(150°C)
• Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
• 600 Volts Max
• cULus Listed
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
• Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
• Brazed Seam
• Electro-Tin Plated
