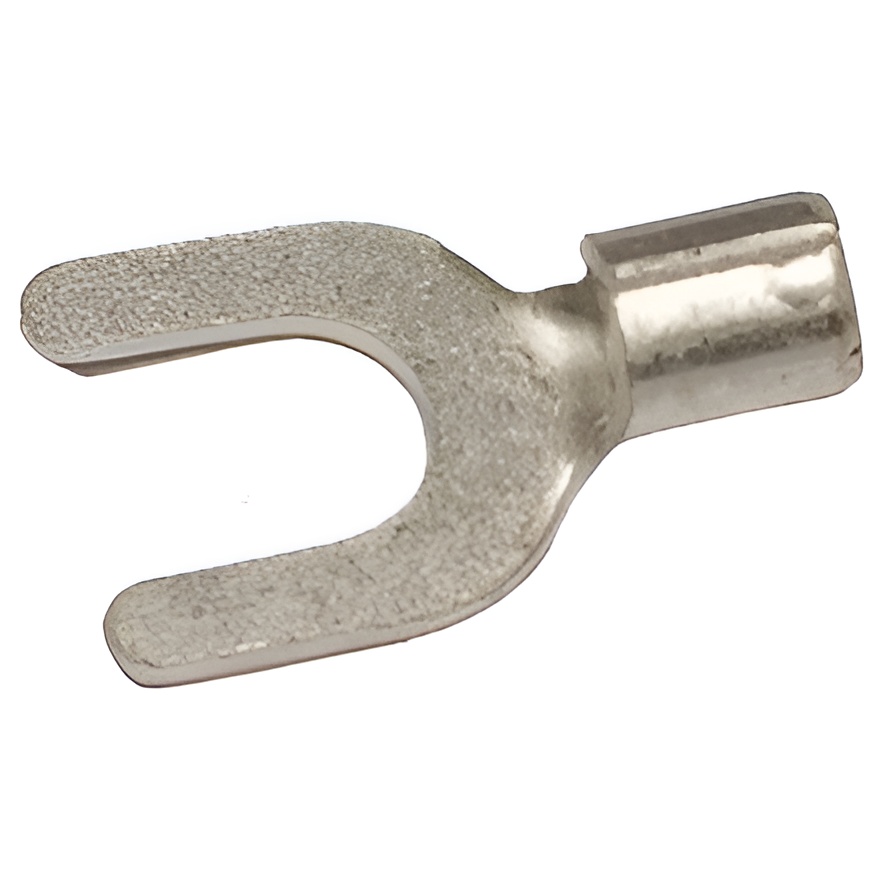

Morris 11530 Non-Insulated Fork/Spade Terminals - Convenient Alternative to Rings

Morris 11530 Non-Insulated Fork/Spade Terminals provide a convenient alternative to ring terminals, designed for a range of electrical applications. Crafted from high-strength electrolytic copper, these terminals feature electro-tin plating that ensures durability and corrosion resistance. The serrated barrel, combined with a brazed seam, not only enhances electrical contact but also offers impressive resistance to pull-out forces, making them reliable for various setups. These terminals can handle a maximum of 600 volts, with current ratings that vary based on wire gauge: 22 AWG supports up to 9 amps, while 14 AWG can manage up to 30 amps. For larger gauges, the 10 AWG accommodates 50 amps, and the 6 AWG can handle an impressive 95 amps, ensuring versatility in your electrical projects. The terminals are cULus listed, providing peace of mind regarding safety and compliance. With a stud size of 1/4" and an operational temperature of up to 302°F (150°C), the Morris 11530 terminals are an excellent choice for both residential and industrial applications. Whether you're an electrician or a knowledgeable homeowner, these non-insulated terminals will meet your needs for efficiency and reliability. Remember to observe safety warnings as listed.

Non-Insulated Fork/Spade Terminals area Convenient Alternative to Ring Terminals.

• 302°F(150°C)
• Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
• 600 Volts Max
• cULus Listed
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
• Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
• Brazed Seam
• Electro-Tin Plated
