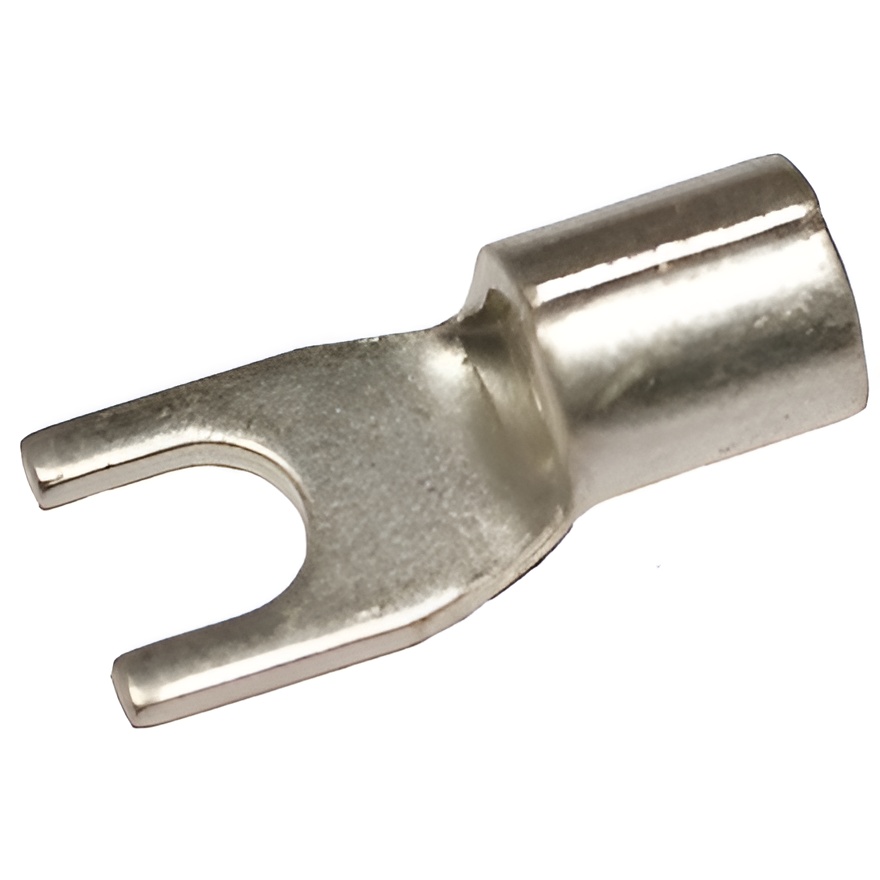

Morris 11546 Non-Insulated Fork/Spade Terminals Convenient Alternative to Rings

Morris 11546 Non-Insulated Fork/Spade Terminals offer a convenient alternative to traditional ring terminals, designed for efficient electrical connections in various applications. Constructed from high-strength electrolytic copper, these terminals ensure durability and reliability. The electro-tin plating enhances corrosion resistance, while the brazed seam construction guarantees excellent electrical contact and minimizes pull-out forces, making them a dependable choice for any project. These terminals support a maximum voltage of 600 volts, with a current rating that accommodates a range of wire sizes. The ratings include 9 amps for 22 AWG, up to 95 amps for 6 AWG, allowing for versatility across different wiring requirements. With a heat resistance up to 302°F (150°C), they are engineered to withstand demanding environments. Morris 11546 terminals are cULus listed, ensuring they meet rigorous safety standards for electrical components. Designed for a stud size of 1/4", they provide an easy-to-install solution for both professionals and knowledgeable homeowners alike. Whether you're working on a residential project or a commercial installation, these terminals will help ensure secure and efficient connections. Please take note of the warning regarding cancer and reproductive harm associated with this product.

Non-Insulated Fork/Spade Terminals area Convenient Alternative to Ring Terminals.

• 302°F(150°C)
• Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
• 600 Volts Max
• cULus Listed
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
• Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
• Brazed Seam
• Electro-Tin Plated
