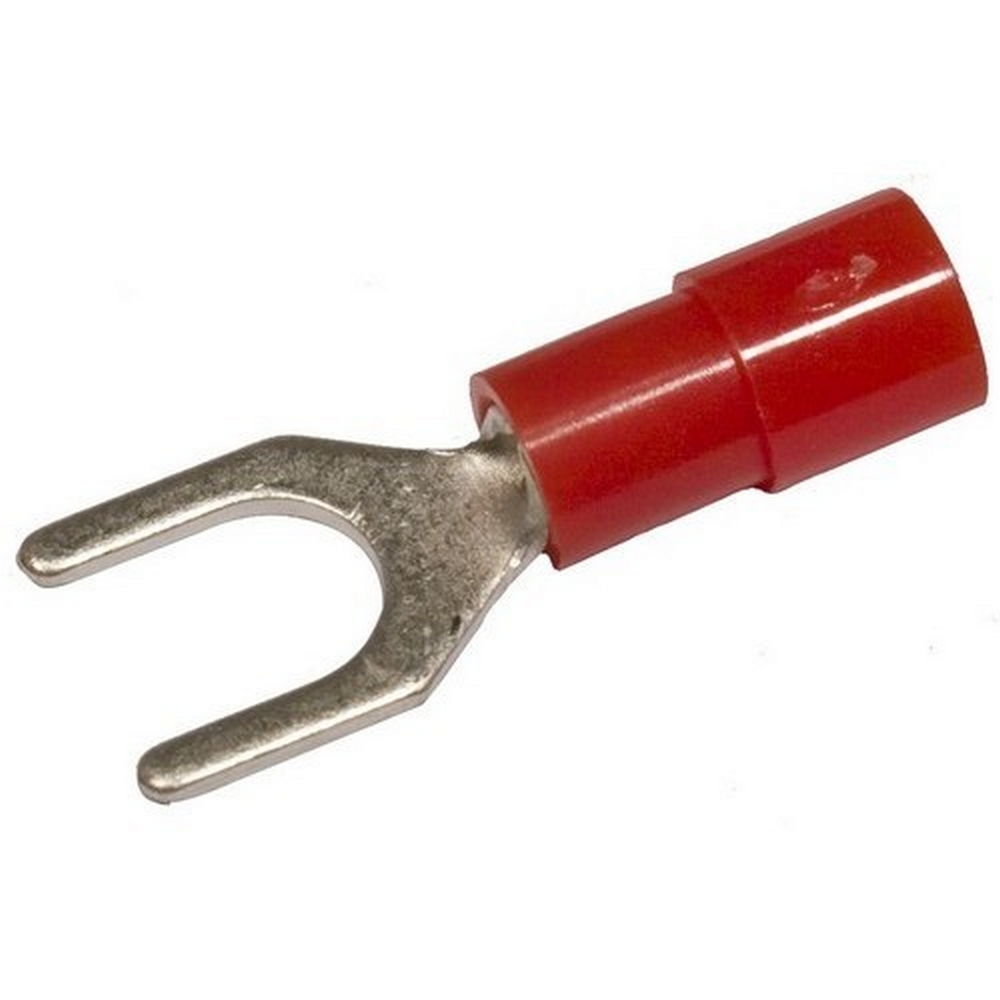

Morris 11614 Nylon Insulated Fork/Spade Terminals for Electrical Work

Morris 11614 Nylon Insulated Fork/Spade Terminals are designed with the professional in mind, offering reliable performance for a variety of electrical applications. These terminals feature nylon insulation that is color-coded for easy identification, ensuring you can quickly find the right component for your project. Crafted from high-strength copper alloy and electro-tin plated, they provide excellent corrosion resistance and durability. The easy entry expanded insulation design eliminates strand "hang up," significantly increasing crimping rates and offering mechanical strain relief that you can trust. Each terminal barrel is constructed with a brazed seam and serrated barrel, enhancing electrical contact and resisting pull-out forces for long-lasting connections. The wire range is clearly stamped on the surface for straightforward interpretation. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 600 volts, these terminals support a wide range of wire sizes-from 22 AWG to 6 AWG-accommodating electric currents up to 95 amps. The Morris 11614 terminals are also cULus listed, ensuring compliance with safety standards. Perfect for both residential and industrial projects, these terminals are a must-have for any electrical toolkit.

Nylon Insulated Fork/Spade Terminals for electrical work.

• Color Coded Insulation for easy identification
• Terminal Barrel has Brazed Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• Manufactured from High Strength Copper Alloy
• Electro-Tin Plated for corrosion resistance
• Fork/Spade Terminals are Nylon Insulated
