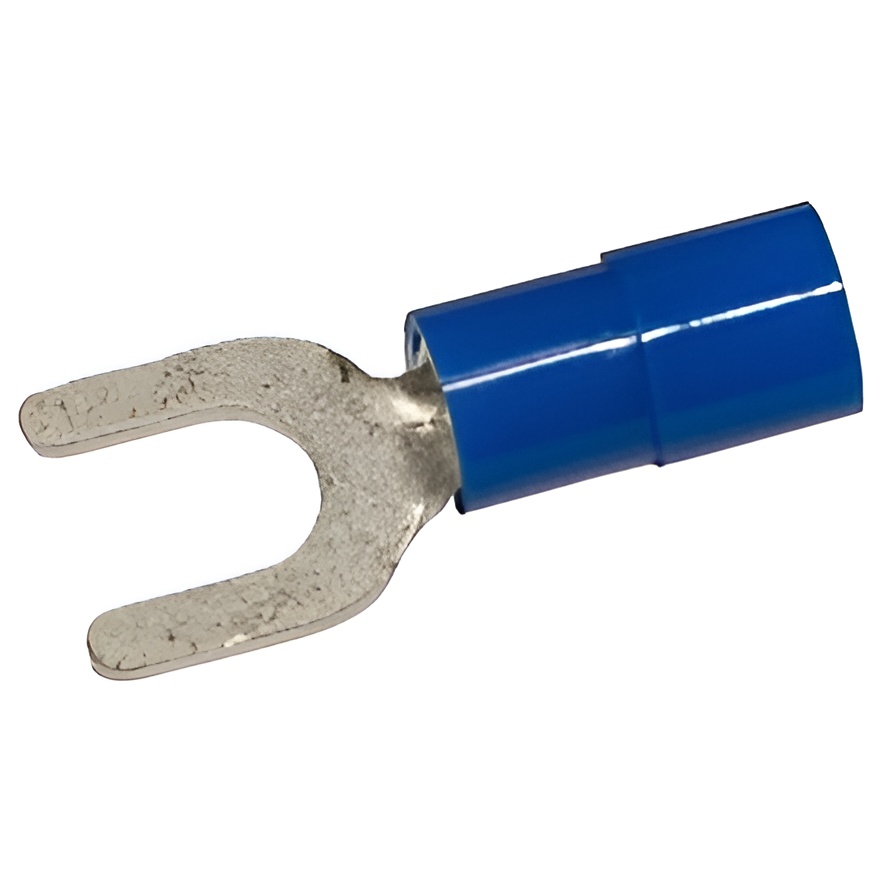

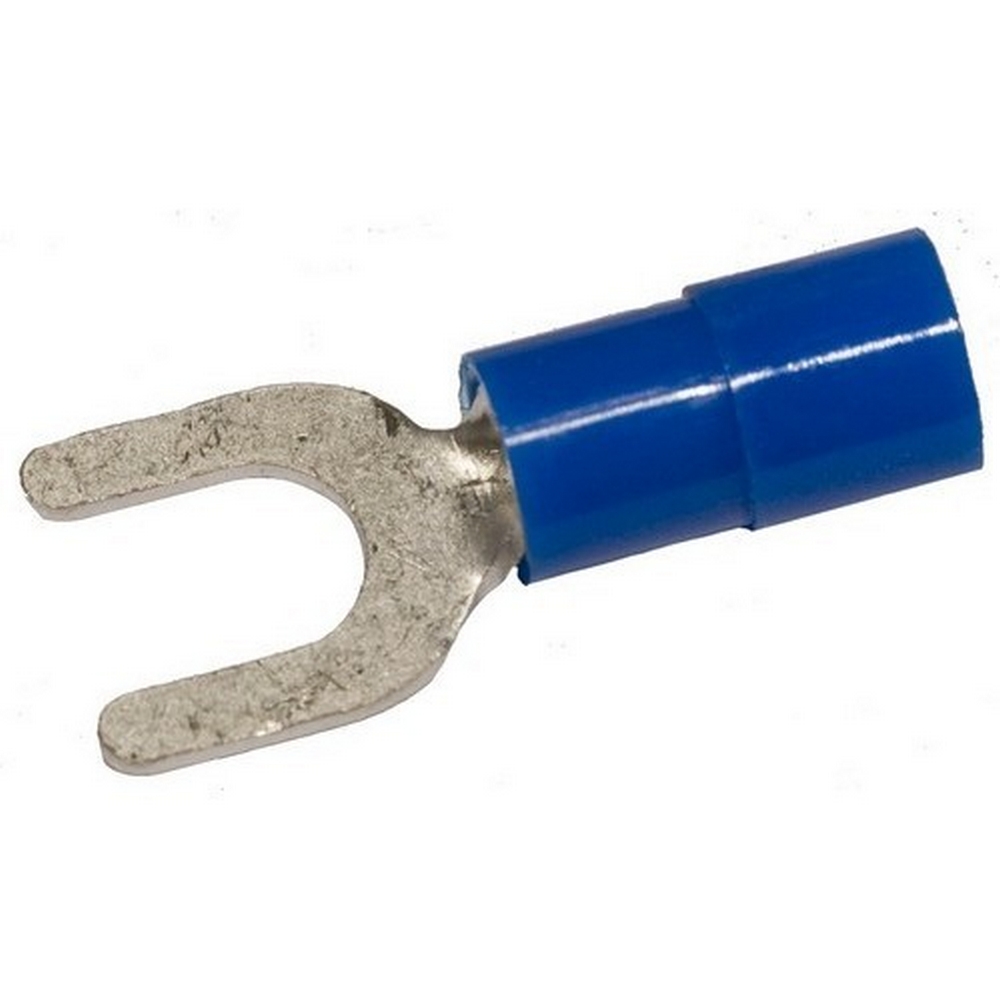

Morris 11628 Nylon Insulated Fork/Spade Terminals for Electrical Work

Morris 11628 Nylon Insulated Fork/Spade Terminals offer a reliable solution for electrical connections, designed to meet the demands of various applications. These terminals feature durable nylon insulation that is color-coded for easy identification, streamlining your installation processes. Crafted from high-strength copper alloy and electro-tin plated, they provide excellent corrosion resistance, ensuring longevity and reliable performance in any environment. The terminals boast an easy entry expanded insulation design that eliminates strand hang-up, enhancing crimping efficiency and providing mechanical strain relief for secure connections. Each terminal is stamped with the wire range for straightforward interpretation, making it simple to select the right size for your project. The serrated barrel design guarantees exceptional electrical contact and resistance to pull-out forces, ensuring a robust connection. Rated for a maximum temperature of 221°F (105°C) and 600 volts, these terminals are versatile across various applications. With a maximum electric current capacity ranging from 9 amps for 22 AWG to 95 amps for 6 AWG, they accommodate a wide range of wiring needs. cULus listed for safety, the Morris 11628 terminals are an invaluable addition to any toolbox, providing peace of mind for building professionals and knowledgeable homeowners alike.

Nylon Insulated Fork/Spade Terminals for electrical work.

• Color Coded Insulation for easy identification
• Terminal Barrel has Brazed Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• Manufactured from High Strength Copper Alloy
• Electro-Tin Plated for corrosion resistance
• Fork/Spade Terminals are Nylon Insulated
