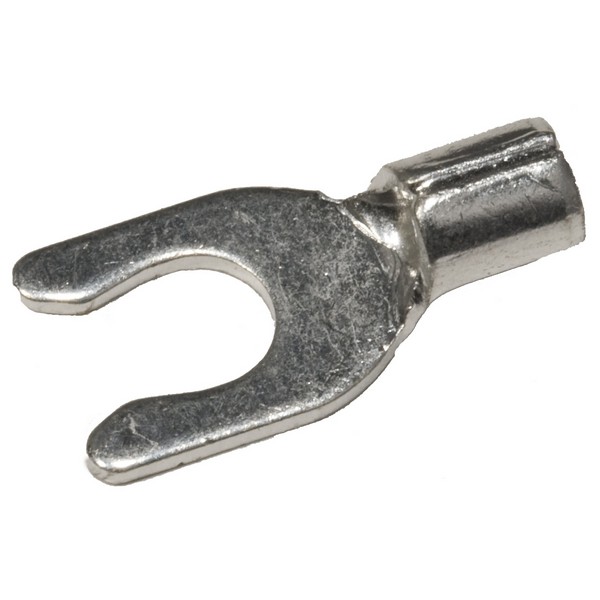

Morris 11678 Non-Insulated Fork/Spade Terminal Restock

Morris 11678 Non-Insulated Fork/Spade Terminals offer reliable performance for a wide range of electrical applications. Crafted from high-strength electrolytic copper, these terminals ensure excellent conductivity and durability, making them an essential component for any professional or DIY project. Featuring an electro-tin plating, the Morris 11678 terminals resist corrosion and enhance electrical contact. The serrated barrel design, combined with a brazed seam, provides superior resistance to pull-out forces, ensuring a secure connection that you can trust. Rated for a maximum of 600 volts and capable of handling current levels from 9 amps for 22 AWG wire up to 50 amps for 10 AWG wire, these terminals are versatile enough to accommodate various wire sizes, specifically ranging from 12 to 10 AWG. cULus Listed for safety and compliance, the Morris 11678 terminals are designed for use with a #10 stud size, making them compatible with standard electrical installations. With a temperature rating of 302°F (150°C), these terminals are built to withstand demanding conditions. Ideal for both commercial and residential applications, restock your supplies with Morris 11678 Non-Insulated Fork/Spade Terminals and ensure quality connections every time.

Restock your Non Insulated Fork/Spade Terminals with us.

• Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
• Brazed Seam
• 302°F(150°C) 600 Volts Max
• Electro-Tin Plated
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
