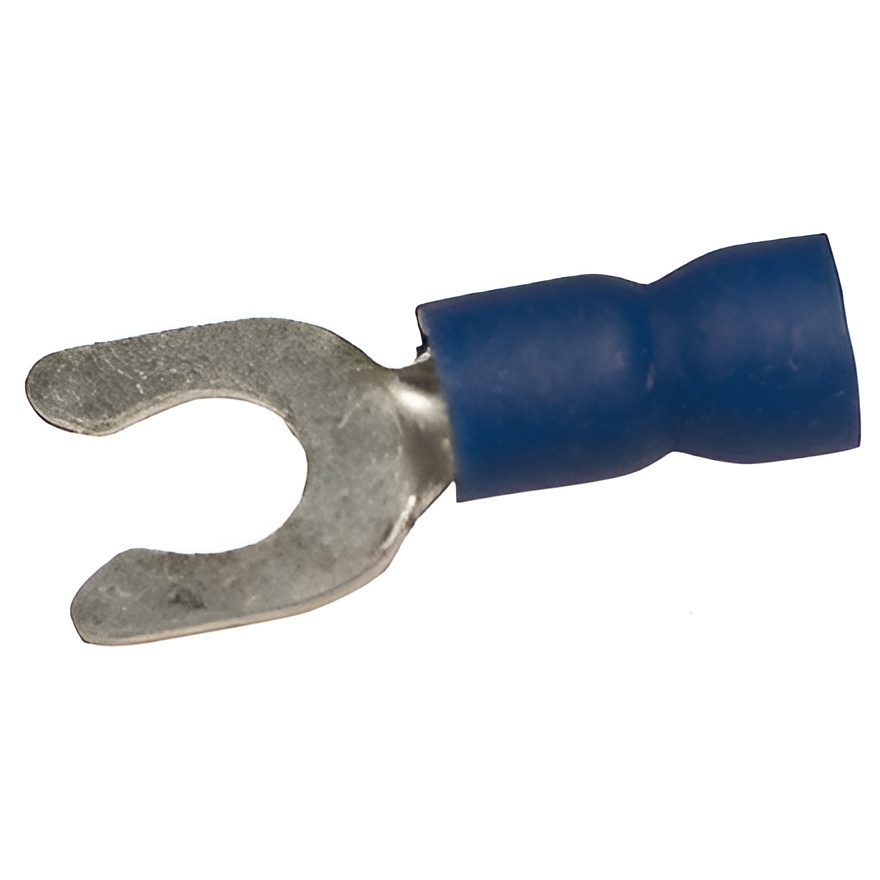

Morris 11712 Locking Vinyl Insulated Fork/Spade Terminals

Morris 11712 Locking Vinyl Insulated Fork/Spade Terminals offer a reliable and efficient solution for your electrical connections. Designed with vinyl insulation, these terminals feature color-coded identification, making it easy to find the right connection when you need it. Crafted from high-strength electrolytic copper alloy and electro-tin plated, they provide excellent corrosion resistance, ensuring longevity and performance in a variety of environments. The easy entry expanded insulation helps eliminate strand "hang up," facilitating faster crimping rates while providing robust mechanical strain relief. The wire range is conveniently stamped on the surface for quick reference, ensuring you can work efficiently. With a butted seam terminal barrel and a serrated barrel design, these terminals deliver superior electrical contact and resistance to pull-out forces. Engineered for a maximum electric current of up to 50 amps depending on the wire gauge, these terminals are rated for 221°F (105°C) and up to 600 volts, making them suitable for demanding applications. The locking configuration of the tang ensures a positive lock to the terminal post, enhancing pull-out force resistance. Morris 11712 terminals are cULus listed, ensuring they meet rigorous safety standards. Upgrade your electrical projects with the quality and reliability of Morris Products.

You'll love working with our Locking Vinyl Insulated Fork/Spade Terminals.

• Locking Configuration of Tang ensures a Positive Lock to terminal post increasing pull-out force resistance
• Terminal Barrel has Butted Seam
• cULus Listed
• Manufactured from High Strength Electrolytic Copper Alloy
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Locking Fork/Spade Terminals are Vinyl Insulated
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
