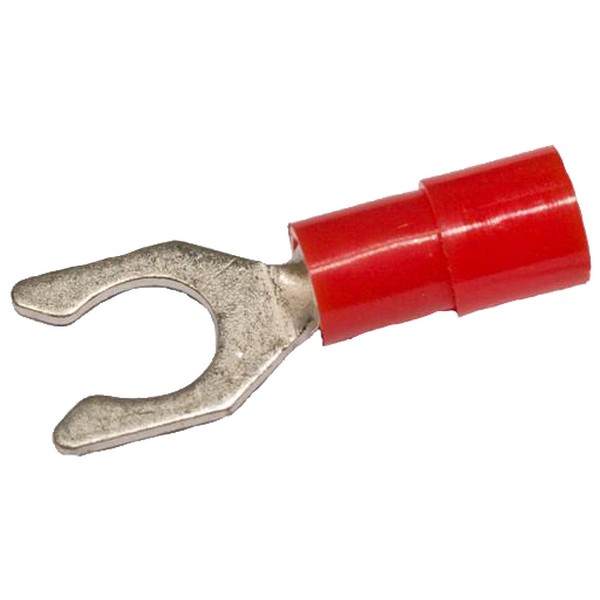

Morris 11724 Nylon Insulated Locking Fork/Spade Terminals

Morris 11724 Locking Fork/Spade Terminals are designed for reliability and ease of use in a variety of electrical applications. These terminals feature nylon insulation that is color-coded for effortless identification, ensuring that you can quickly select the right connector for your project. Manufactured from high-strength electrolytic copper alloy, these terminals are electro-tin plated to provide exceptional corrosion resistance, enhancing their longevity in demanding environments. The easy entry expanded insulation design eliminates strand "hang up," which boosts crimping efficiency and offers mechanical strain relief. Each terminal barrel is equipped with a brazed seam and serrated surface, delivering excellent electrical contact while resisting pull-out forces. The unique locking configuration of the tang guarantees a positive lock to the terminal post, further increasing pull-out force resistance. With a maximum operating temperature of 221°F (105°C) and rated for 600 volts, these terminals accommodate a wide range of wire sizes, from 22 AWG to 10 AWG, with corresponding current ratings up to 50 amps. cULus listed for safety and compliance, the Morris 11724 Locking Fork/Spade Terminals provide the performance and reliability you need for any residential, commercial, or industrial electrical application.

These Locking Fork/Spade Terminals are Nylon Insulated.

• Locking Fork/Spade Terminals are Nylon Insulated
• Color Coded Insulation for easy identification
• Locking Configuration of Tang ensures a Positive Lock to terminal post increasing pull-out force resistance
• Terminal Barrel has Brazed Seam
• cULus Listed
• Manufactured from High Strength Electrolytic Copper Alloy
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
