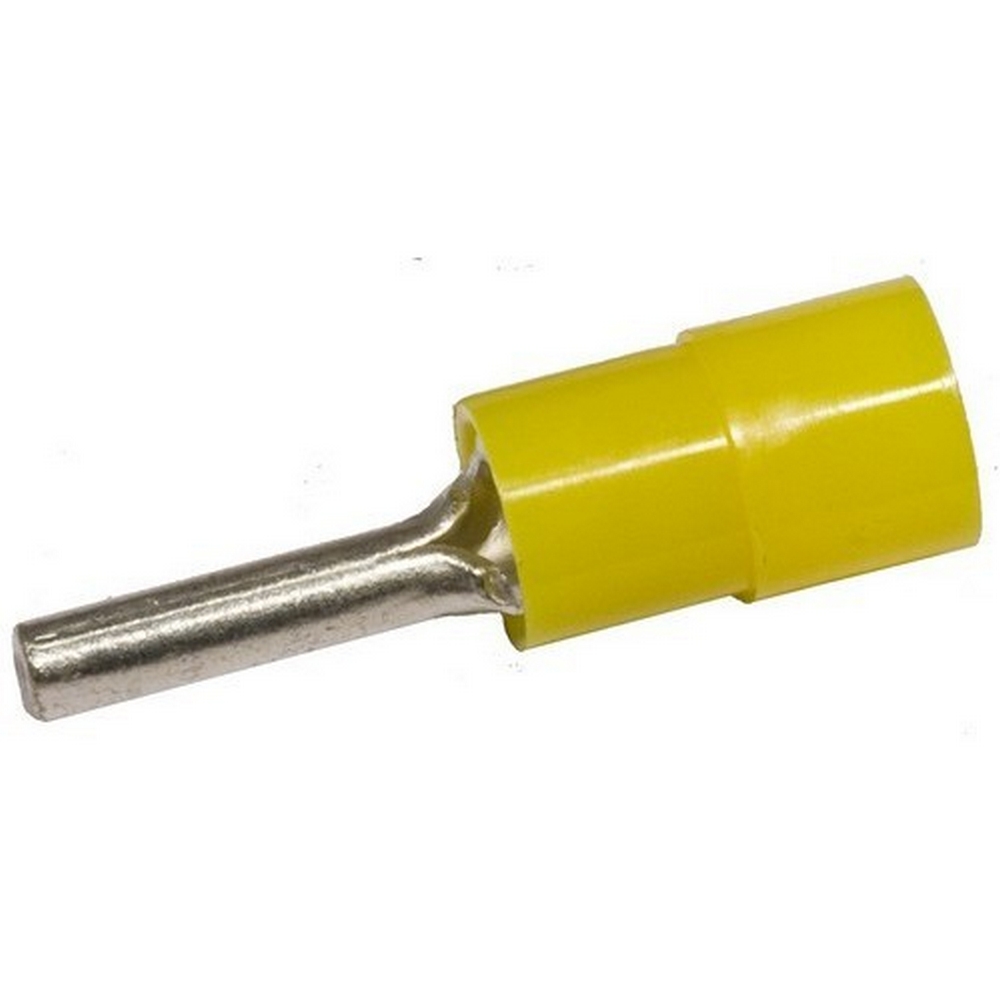

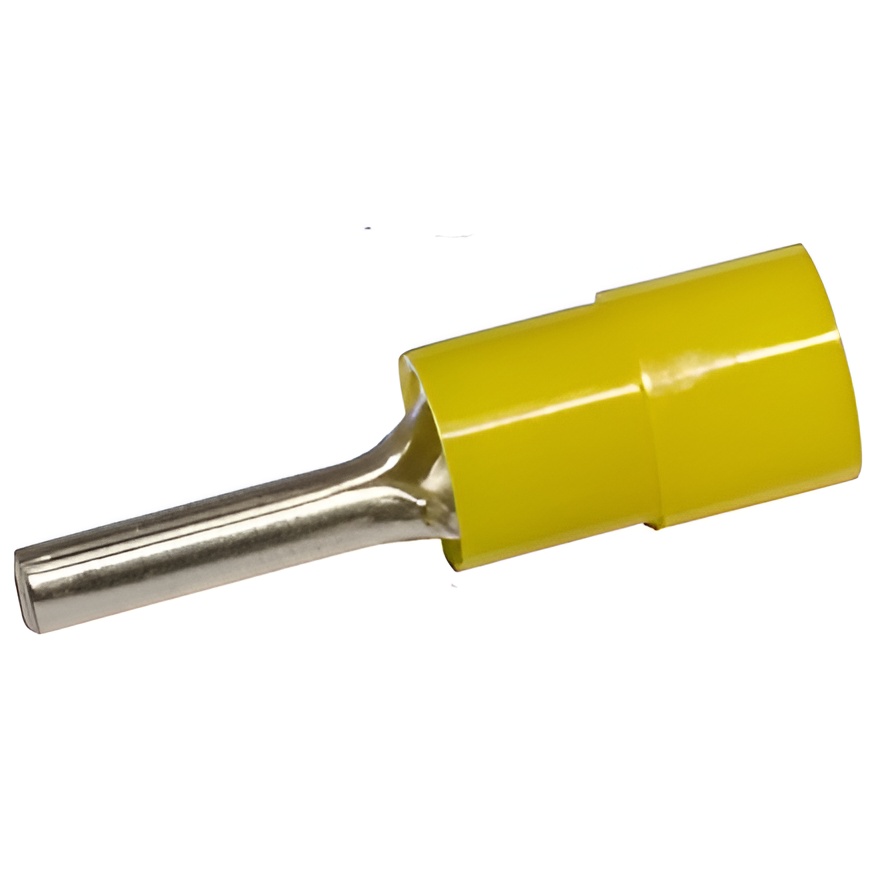

Morris 11836 Nylon Insulated Pin Terminals

Morris 11836 Pin Terminals are nylon insulated solutions designed for reliability and durability in various electrical applications. These terminals feature color-coded insulation, allowing for quick and easy identification, which enhances efficiency during installation. Manufactured from high-strength electrolytic copper alloy, they are electro-tin plated to ensure exceptional corrosion resistance, making them ideal for long-lasting performance in challenging environments. The easy entry expanded insulation design eliminates strand "hang-up," significantly improving crimping rates while providing mechanical strain relief. Each terminal barrel is equipped with a brazed seam and serrated barrel, ensuring excellent electrical contact and resistance to pull-out forces. Users will appreciate the wire range stamped directly on the surface, facilitating clear interpretation for precise usage. Rated for a maximum temperature of 221°F (105°C) and capable of handling up to 600 volts, these terminals support a range of wire sizes from 12 AWG to 10 AWG, with current ratings varying from 9 amps to 50 amps, depending on the wire gauge. Additionally, these terminals are cULus listed, assuring compliance with safety standards. Choose Morris 11836 Pin Terminals for a dependable connection that meets the demands of both residential and commercial projects.

These Pin Terminals are Nylon Insulated.

• Terminal Barrel has Brazed Seam
• cULus Listed
• Pin Terminals are Nylon Insulated
• Manufactured from High Strength Electrolytic Copper Alloy
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Color Coded insulation for easy identification
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Wire range stamped on the surface for easy interpretation
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
