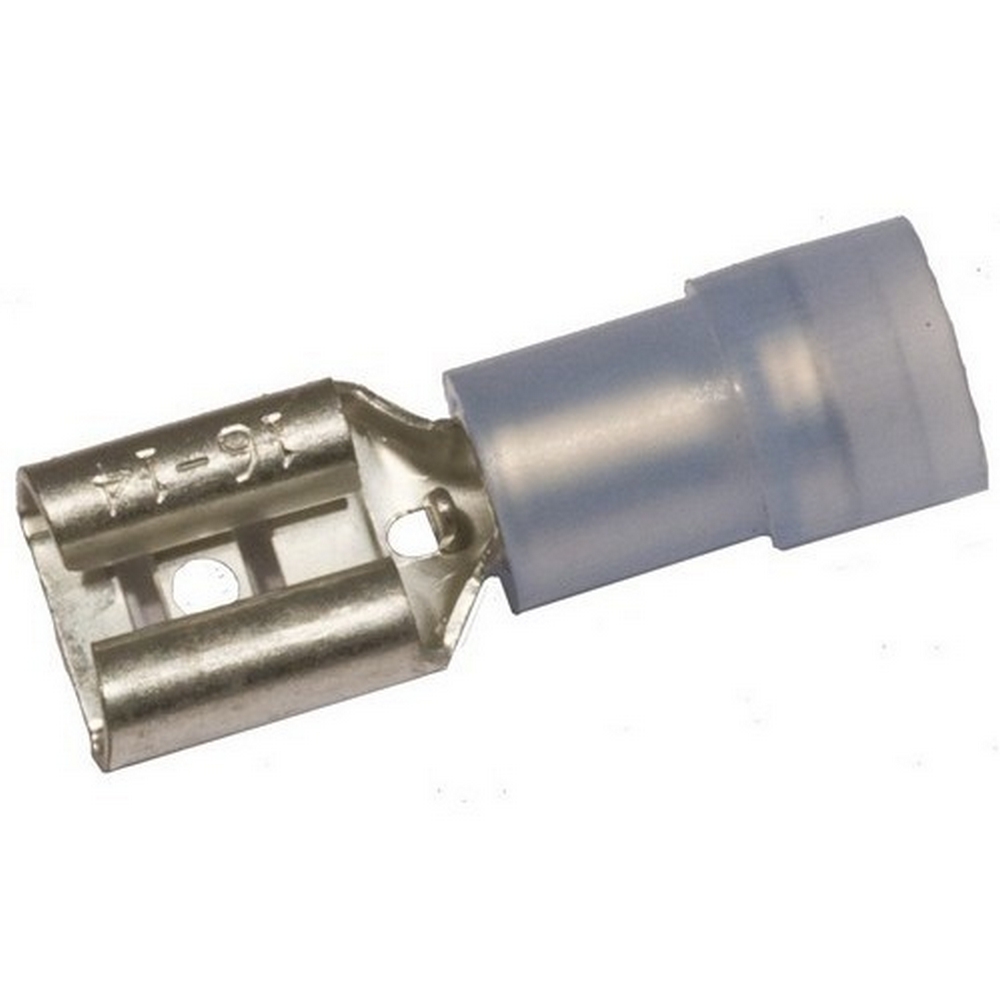

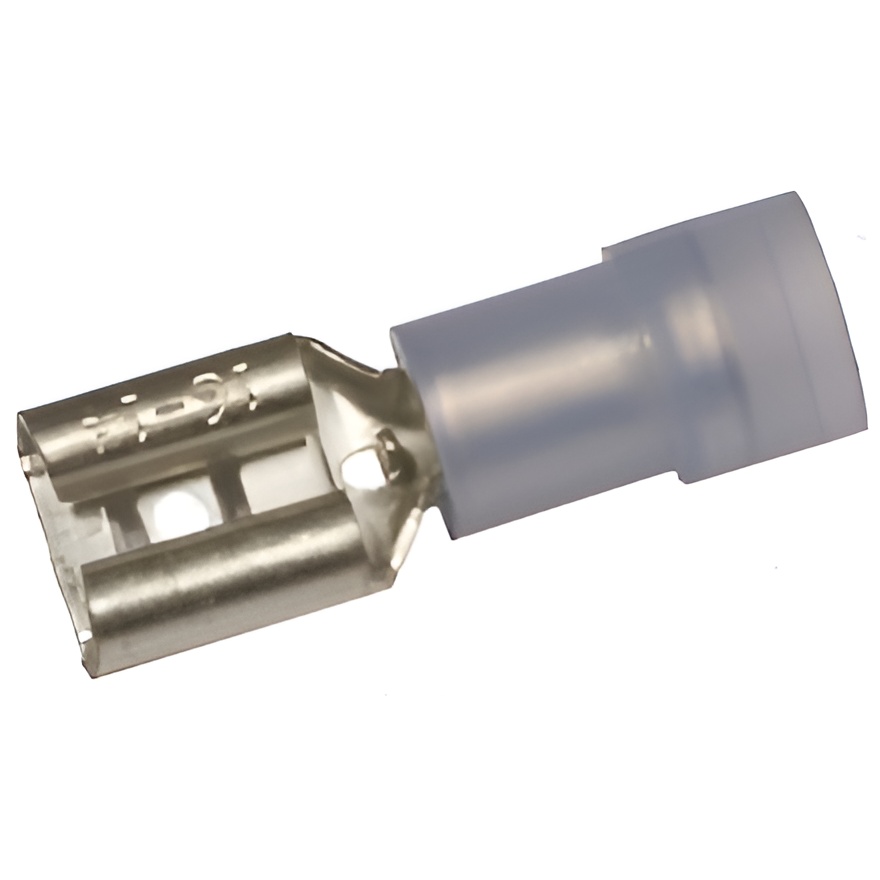

Morris 11922 Nylon Insulated Double Crimp Female Disconnects Resupply

Morris 11922 Nylon Insulated Double Crimp Female Disconnects are your ideal solution for reliable electrical connections. Designed with nylon insulation, these disconnects are color-coded for easy identification, making your installation process more efficient. Constructed from high-strength brass and electro-tin plated, they offer excellent corrosion resistance, ensuring longevity in various applications. The easy entry expanded insulation design minimizes strand "hang up," which enhances crimping rates while providing robust mechanical strain relief. Each terminal features a butted seam barrel and a serrated barrel that ensures excellent electrical contact and resistance to pull-out forces. The double crimp extended crimp sleeve enhances electrical contact through multiple crimps, maximizing pull-out force resistance. These disconnects can accommodate a wire range of 16 AWG to 14 AWG, with maximum current ratings ranging from 3 Amps for 22 AWG to 24 Amps for 10 AWG. They are rated for 221°F (105°C) and a maximum voltage of 600 Volts, making them suitable for a variety of applications. Additionally, the wire range and tab size are stamped on the surface for straightforward interpretation. With cULus listing, you can trust the quality and safety of Morris 11922 for your electrical needs.

Resupply your Nylon Insulated Double Crimp Female Disconnects.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Wire range and tab size stamped on the surface for easy interpretation
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Female Double Crimp Disconnects feature Nylon Insulation
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
