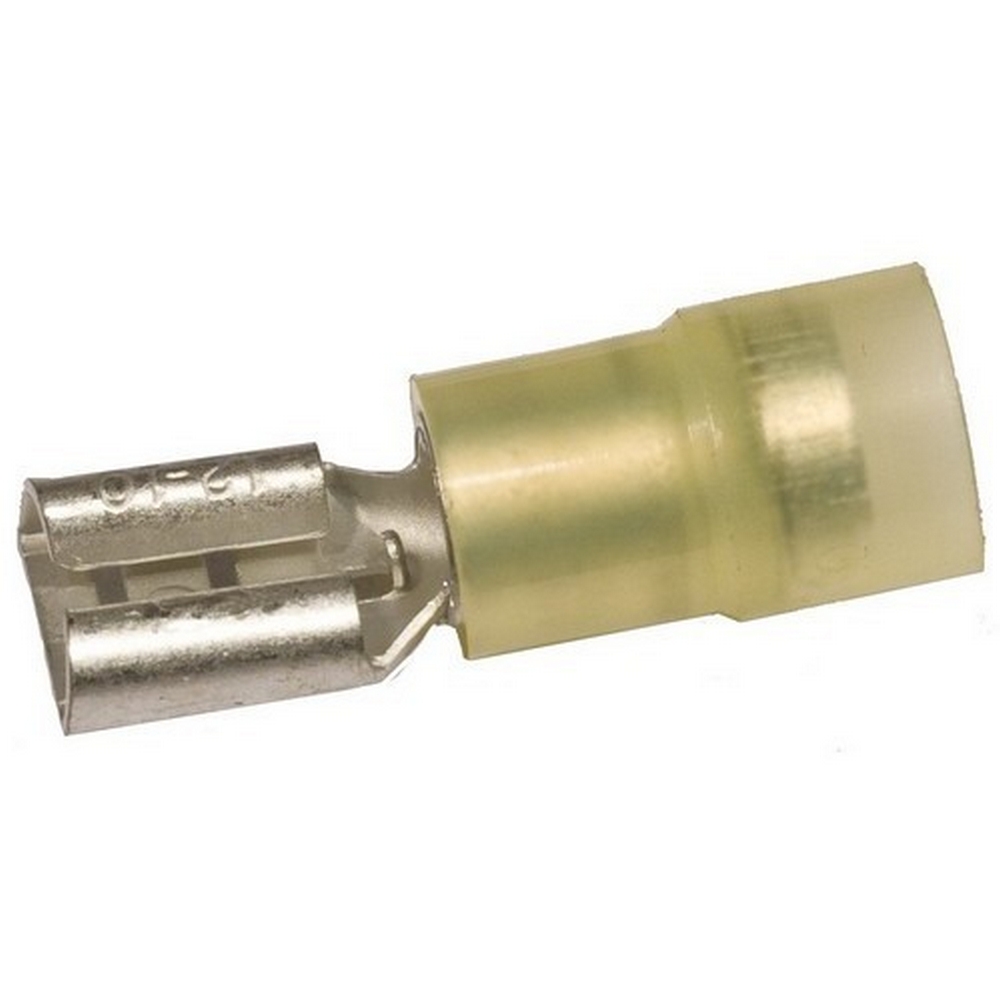

Morris 11934B Nylon Insulated Double Crimp Female Disconnects Resupply

Morris 11934B Nylon Insulated Double Crimp Female Disconnects are designed for reliable electrical connections in various applications. These female disconnects feature durable nylon insulation that is color-coded for easy identification, streamlining your installation process. Constructed from high-strength brass and electro-tin plated, they provide excellent corrosion resistance, ensuring long-lasting performance even in challenging environments. The easy entry expanded insulation design eliminates strand "hang up," which increases crimping rates while providing mechanical strain relief. Each terminal barrel has a butted seam, and the serrated barrel design ensures superior electrical contact and resistance to pull-out forces. With a double crimp extended crimp sleeve, these disconnects allow for multiple crimps, enhancing electrical contact and pull-out force resistance. Morris 11934B disconnects support a range of wire sizes from 12 AWG to 10 AWG, with maximum electric current ratings of up to 24 Amps. They are rated for 221°F (105°C) and 600 Volts max, making them suitable for various applications. Moreover, the wire range and tab size are conveniently stamped on the surface for quick reference. cULus listed for safety and reliability, these disconnects are a smart choice for building professionals and knowledgeable homeowners alike.

Resupply your Nylon Insulated Double Crimp Female Disconnects.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Wire range and tab size stamped on the surface for easy interpretation
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Female Double Crimp Disconnects feature Nylon Insulation
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
