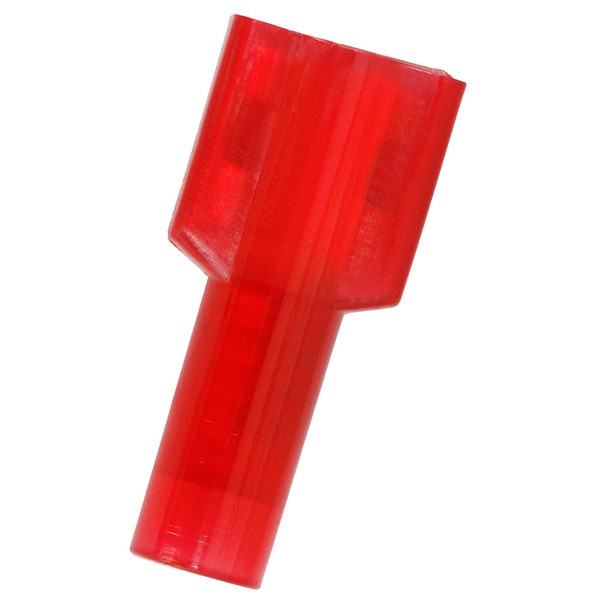

Morris 11964 Nylon Insulated Double Crimp Female Disconnect - Quality Economy

Morris 11964 Nylon Insulated Double Crimp Female Disconnect offers a perfect blend of quality and economy for your electrical needs. These fully insulated female disconnects feature durable nylon insulation, which is color-coded for easy identification, ensuring a hassle-free installation process. Crafted from high-strength brass and electro-tin plated, these disconnects resist corrosion, enhancing their longevity and reliability. The design includes an easy entry expanded insulation that eliminates strand "hang-up," allowing for quicker crimping rates while providing mechanical strain relief. With a terminal barrel that has a butted seam, users can count on a secure connection. The serrated barrel ensures excellent electrical contact and offers resistance against pull-out forces, making these disconnects an ideal choice for various applications. Additionally, the double crimp extended sleeve allows for multiple crimps, significantly improving electrical contact and pull-out force resistance. With a temperature rating of 221°F (105°C) and a maximum voltage of 600 volts, these disconnects can handle a range of wire sizes from 22 AWG to 10 AWG, with current ratings varying from 3 to 24 amps. The Morris 11964 is also cULus listed, meeting rigorous safety standards, making it a reliable choice for any project.

Our Nylon Insulated Double Crimp Female Disconnect combine quality and economy.

• Double Crimp Fully Insulated Female Disconnects feature Nylon Insulation
• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
