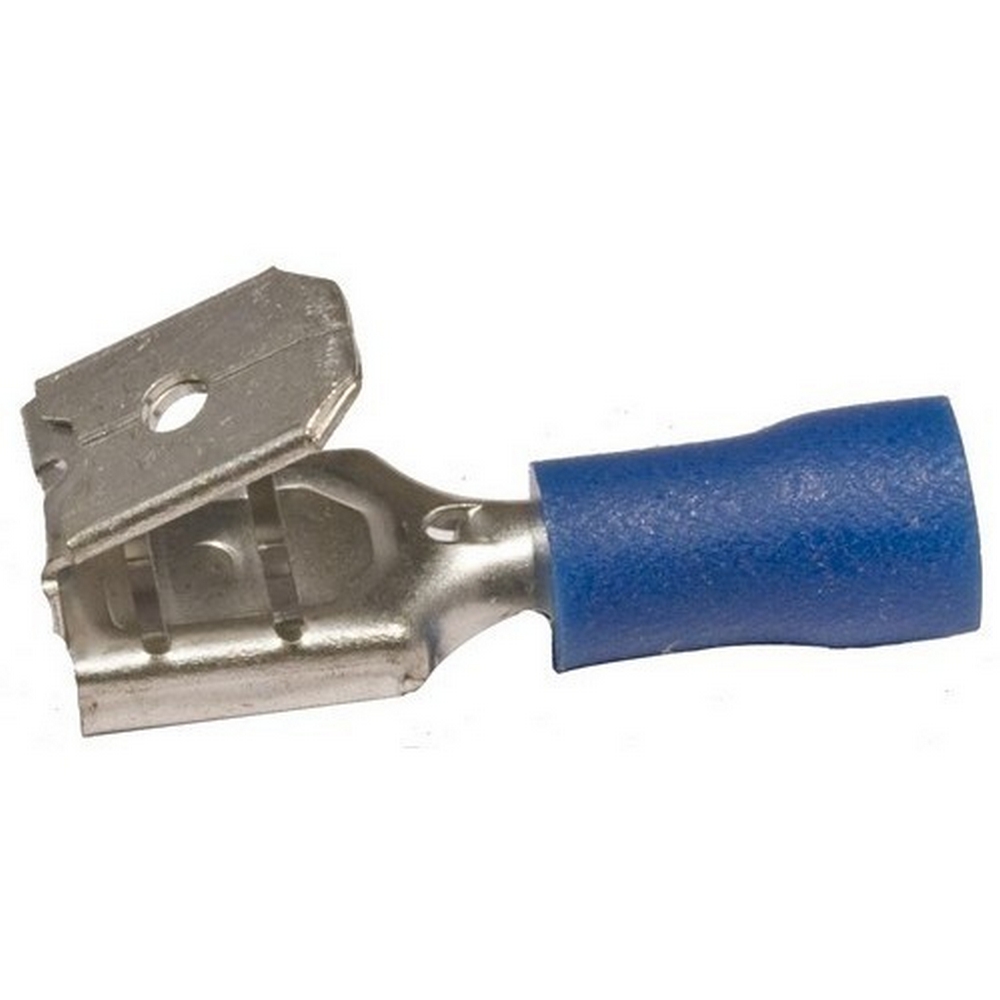

Morris 12014 Vinyl Insulated Piggy Back Disconnects - Restock with Us

Morris 12014 Vinyl Insulated Piggy Back Disconnects offer a reliable solution for your electrical connections. Designed with vinyl insulation, these disconnects feature color-coded insulation for quick and easy identification, ensuring efficient installation and maintenance. Manufactured from high-strength brass, each disconnect is electro-tin plated to provide superior corrosion resistance, enhancing longevity and performance in various environments. The easy entry expanded insulation design minimizes strand hang-up, which increases crimping rates and delivers mechanical strain relief, making your installation process smoother. With wire range specifications stamped directly on the surface, interpretation is straightforward, allowing for quick adjustments in the field. The terminal barrel boasts a butted seam, while the serrated barrel ensures excellent electrical contact and resistance to pull-out forces. These disconnects are rated for 167°F (75°C) with a maximum voltage of 300 Volts, accommodating various wire gauges from 10 AWG to 22 AWG, with current ratings up to 24 Amps. The Morris 12014 is cULus listed, assuring compliance with industry standards for safety and quality. Ideal for both residential and commercial applications, these disconnects are an essential addition to any electrical toolkit, providing the reliability and performance you need for your projects.

Restock your Vinyl Insulated Piggy Back Disconnects with us.

• Manufactured from High Strength Brass
• 167°F (75°C) 300 Volts Max
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Piggy Back Disconnects are Vinyl Insulated
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
