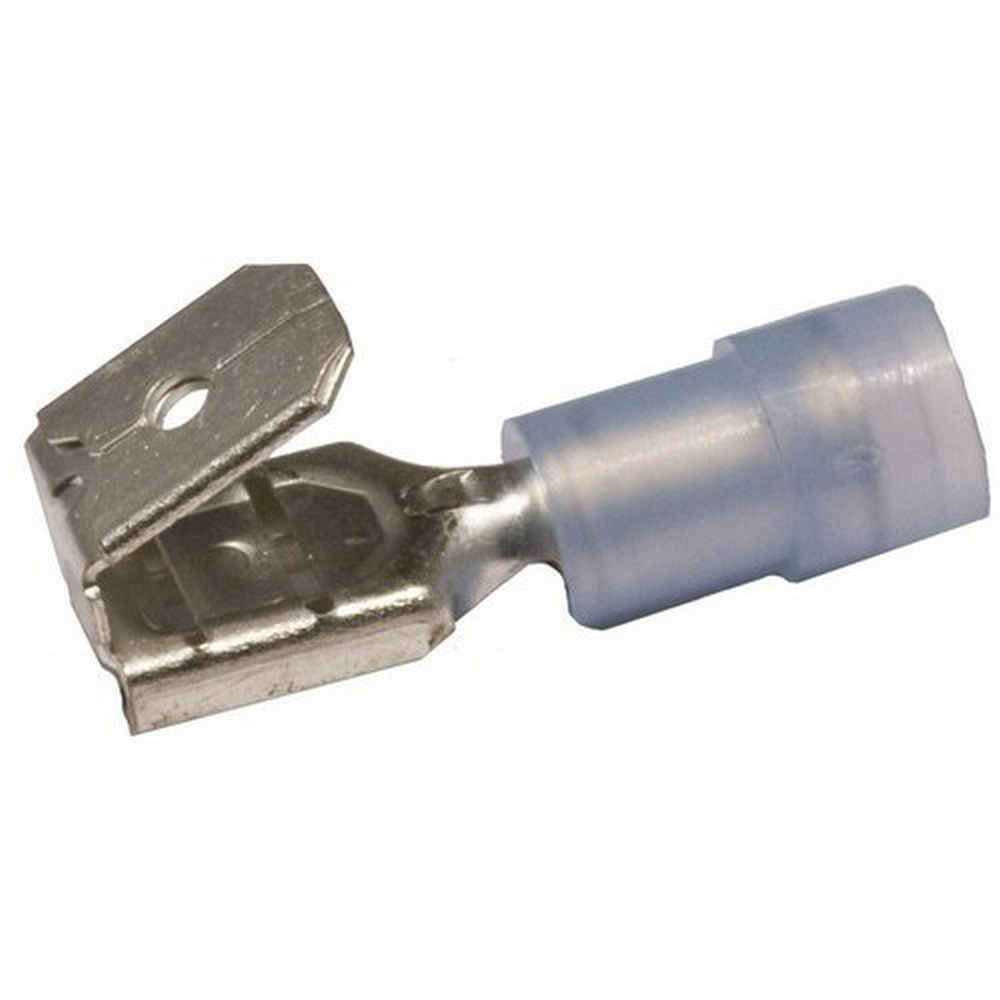

Morris 12024 Nylon Insulated Double Crimp Piggy Back Disconnects for Electrical Use

Morris 12024 Nylon Insulated Double Crimp Piggy Back Disconnects are designed for efficient and reliable electrical work. These disconnects feature a robust nylon insulation that enhances durability and safety, making them ideal for various applications. The color-coded insulation allows for quick and easy identification, streamlining your installation process. Constructed from high-strength brass and electro-tin plated for corrosion resistance, these disconnects ensure long-lasting performance even in challenging environments. The easy entry expanded insulation reduces strand "hang-up," thereby increasing crimping rates and providing effective mechanical strain relief. With a butted seam on the terminal barrel and a serrated barrel, you can expect excellent electrical contact and resistance to pull-out forces. The double crimp extended crimp sleeve allows for multiple crimps, which improves both electrical contact and resistance to pull-out forces. Rated for a maximum of 600 volts and operating temperatures up to 221°F (105°C), the Morris 12024 disconnects accommodate various wire sizes, ranging from 10 AWG (24 Amps) to 22 AWG (3 Amps). They are also cULus listed, ensuring compliance with industry standards. For electrical professionals seeking reliability and efficiency, these disconnects are a must-have in your toolkit.

Nylon Insulated Double Crimp Piggy Back Disconnects for electrical work.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Double Crimp Piggyback Disconnects are Nylon Insulated
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
