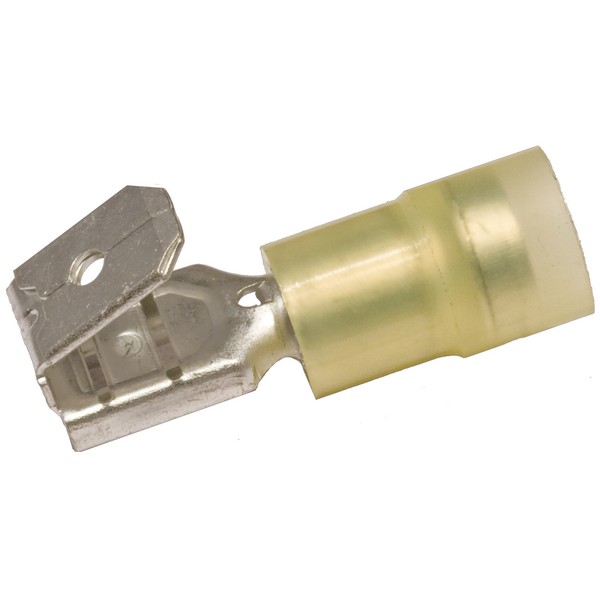

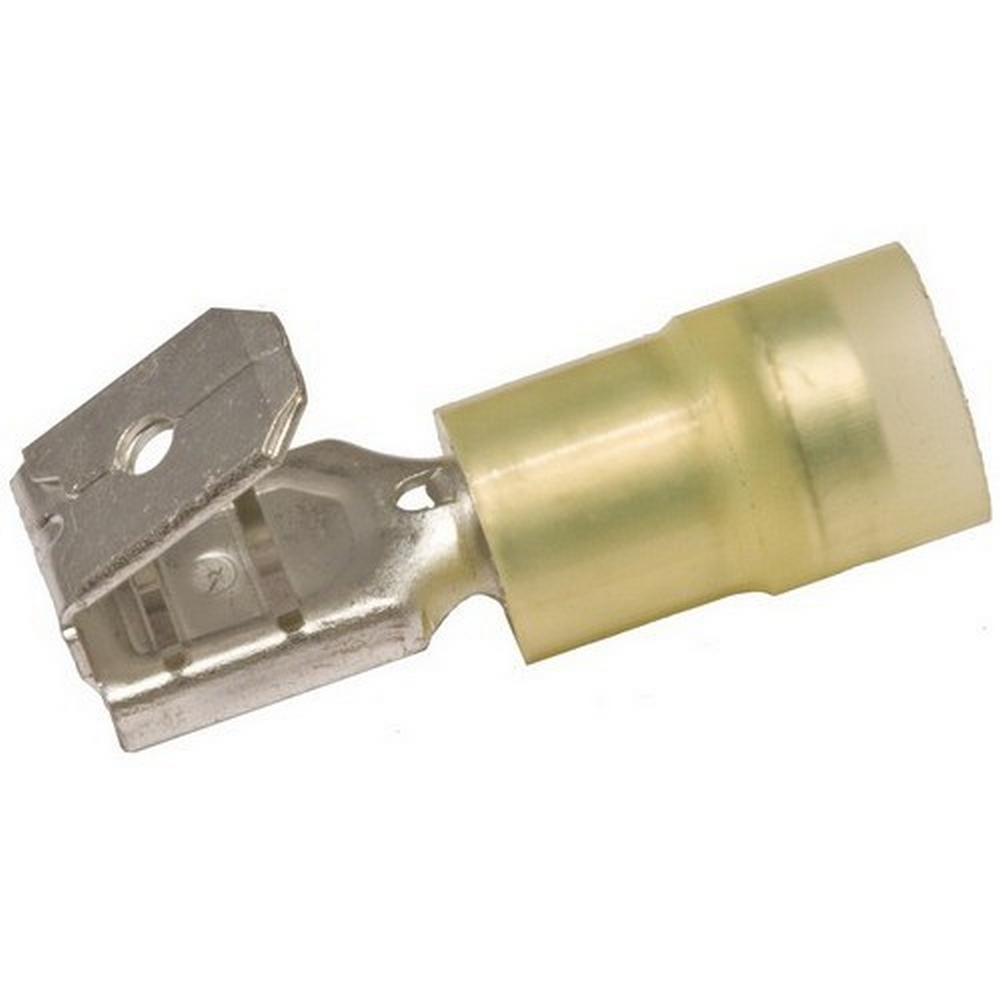

Morris 12026 Nylon Insulated Double Crimp Piggy Back Disconnects for Electrical Use

Morris 12026 Nylon Insulated Double Crimp Piggy Back Disconnects are expertly designed for reliable electrical connections in various applications. These disconnects feature nylon insulation, which is color-coded for easy identification, ensuring that you can quickly find the right connection when you need it. Manufactured from high-strength brass and electro-tin plated, they offer excellent corrosion resistance, making them ideal for both indoor and outdoor use. The easy entry expanded insulation is a standout feature that eliminates strand "hang up," leading to increased crimping rates and providing vital mechanical strain relief. Each terminal barrel is designed with a butted seam to enhance durability, while the serrated barrel ensures superior electrical contact and resistance to pull-out forces. These double crimp disconnects are capable of handling a maximum electric current based on wire gauge: 22 AWG at 3 amps, up to 10 AWG at 24 amps. Rated for 221°F (105°C) and 600 volts max, they are built to perform under demanding conditions. Plus, with a wire range stamped on the surface, interpretation is straightforward. cULus listed for safety and reliability, Morris 12026 disconnects are a smart choice for any electrical project.

Nylon Insulated Double Crimp Piggy Back Disconnects for electrical work.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Double Crimp Piggyback Disconnects are Nylon Insulated
• Color Coded insulation for easy identification
• Wire range stamped on the surface for easy interpretation
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
