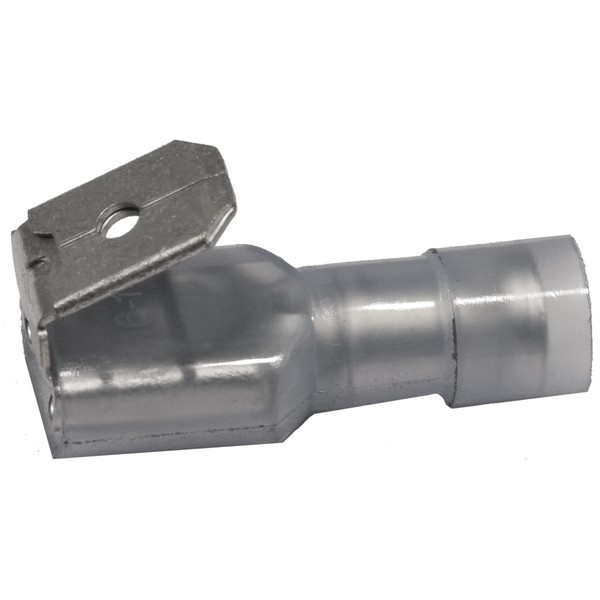

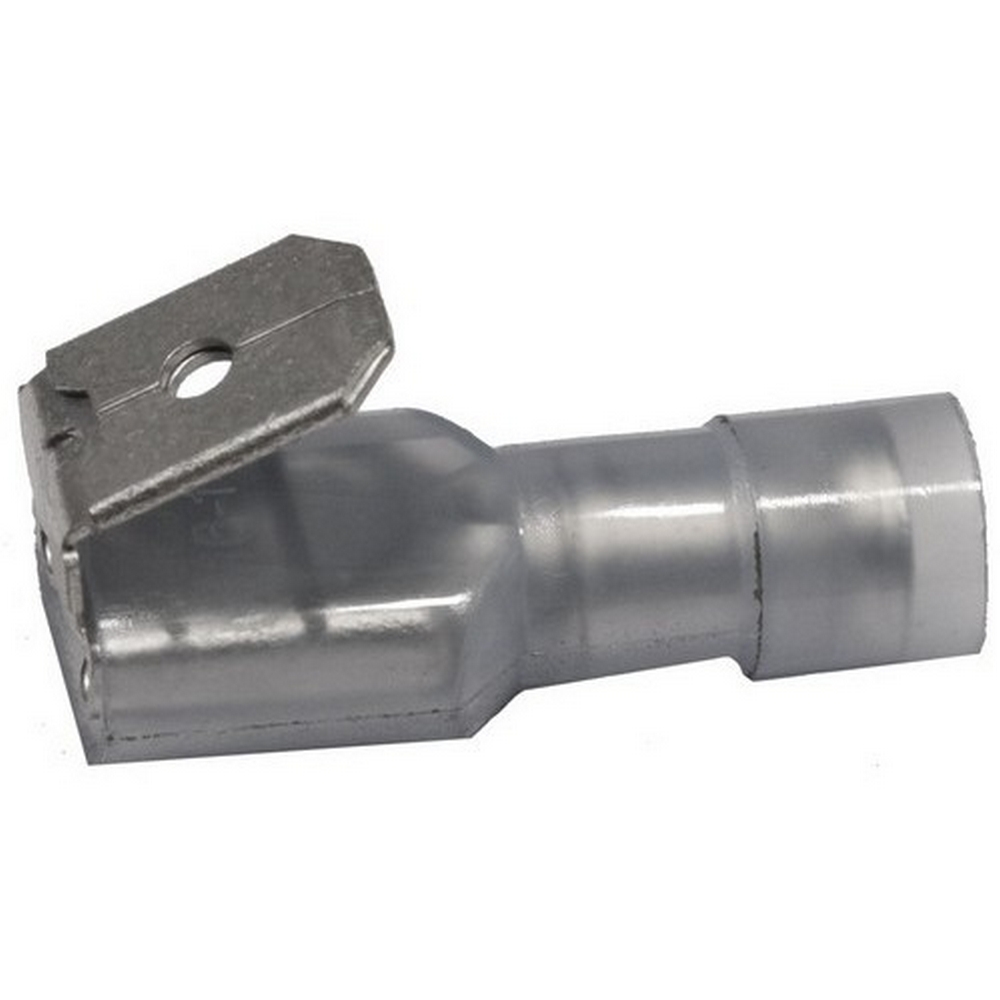

Morris 12034 Nylon Fully Insulated Double Crimp Piggy Back Disconnects

Morris 12034 Double Crimp Piggy Back Disconnects are designed for reliable and efficient electrical connections. These fully insulated connectors are made from high-strength brass, ensuring durability and optimal performance in various applications. The nylon insulation is color-coded, allowing for easy identification during installations or maintenance. These disconnects feature an expanded insulation entry that prevents strand "hang up," which enhances crimping rates and provides excellent mechanical strain relief. The terminal barrel is constructed with a butted seam and a serrated design, ensuring superior electrical contact while resisting pull-out forces. The double crimp extended crimp sleeve allows for multiple crimps, further improving electrical contact and enhancing resistance to pull-out forces. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 600 volts, these disconnects are suitable for a variety of wire sizes, accommodating 16-14 AWG wires with a maximum current capacity ranging from 10 to 24 amps, depending on the wire gauge. Additionally, the Morris 12034 disconnects are cULus listed, meeting rigorous safety standards. Choose Morris 12034 Double Crimp Piggy Back Disconnects for a dependable solution that ensures optimal performance and safety in your electrical projects.

These Double Crimp Piggy Back Disconnects are Nylon Fully Insulated.

• Manufactured from High Strength Brass
• Fully Insulated Double Crimp Piggyback Disconnects are Nylon Insulated
• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Maximum Electrical Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
