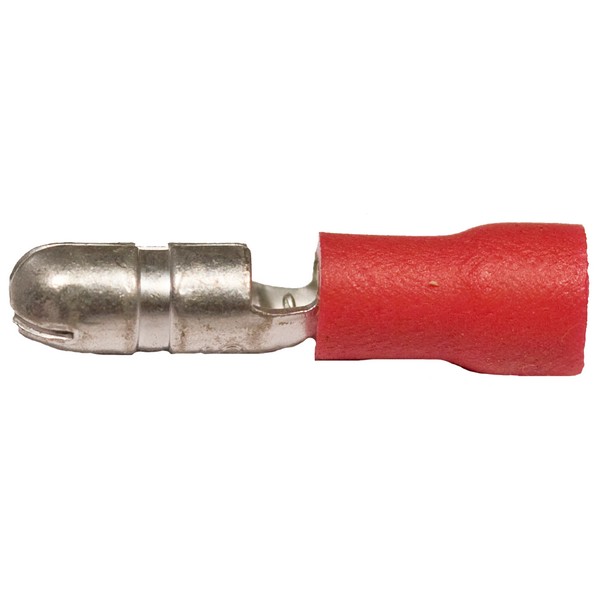

Morris 12042 Vinyl Insulated Bullet Disconnects for Quick Disconnect Applications

Morris 12042 Vinyl Insulated Bullet Disconnects offer a superior alternative to traditional blade-type disconnects, making them a top choice for quick disconnect applications. Designed for versatility, these disconnects come in both .157" and .197" diameters, ensuring compatibility with a variety of wiring needs. The color-coded insulation simplifies identification, allowing for efficient installation and maintenance. Constructed from high-strength brass and electro-tin plated, these disconnects provide excellent corrosion resistance, enhancing their longevity in demanding environments. The easy-entry expanded insulation design minimizes strand hang-up, increasing crimping rates while providing effective mechanical strain relief. Additionally, the terminal barrel features a butted seam, ensuring durability and reliability in electrical connections. With a serrated barrel that guarantees excellent electrical contact and resistance to pull-out forces, the Morris 12042 disconnects can handle significant electrical loads. They are rated for a maximum current of 3 to 24 amps depending on wire gauge, making them suitable for various applications within the 22 AWG to 10 AWG range. Rated for up to 167°F (75°C) at 600 volts, and cULus listed, these disconnects are a trustworthy choice for professionals looking for quality and performance.

Our Vinyl Insulated Bullet Disconnects Are an excellent alternative to blade type disconnects in Quick Disconnect Applications.

• Manufactured from High Strength Brass
• Vinyl Insulated Bullet Disconnects in both .157" and .197" diameters
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps

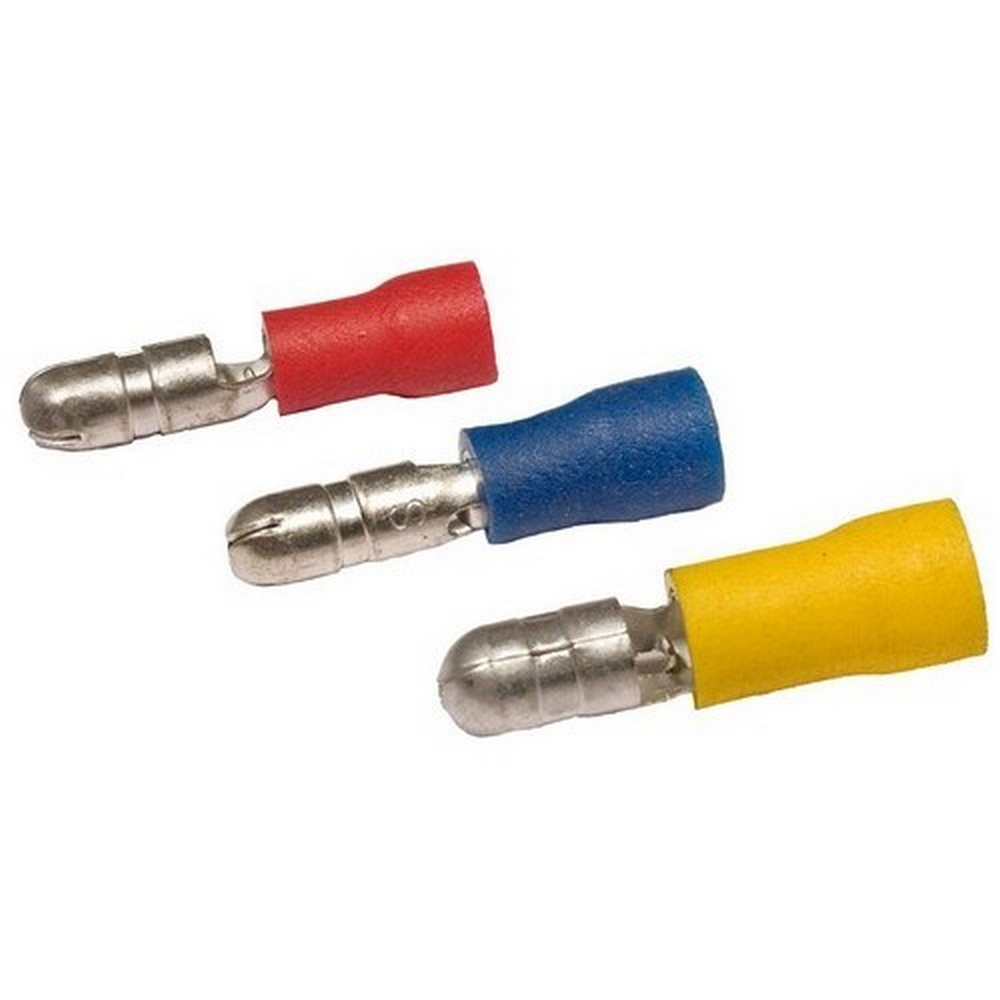

• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 167°F (75°C) 600 Volts Max
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
