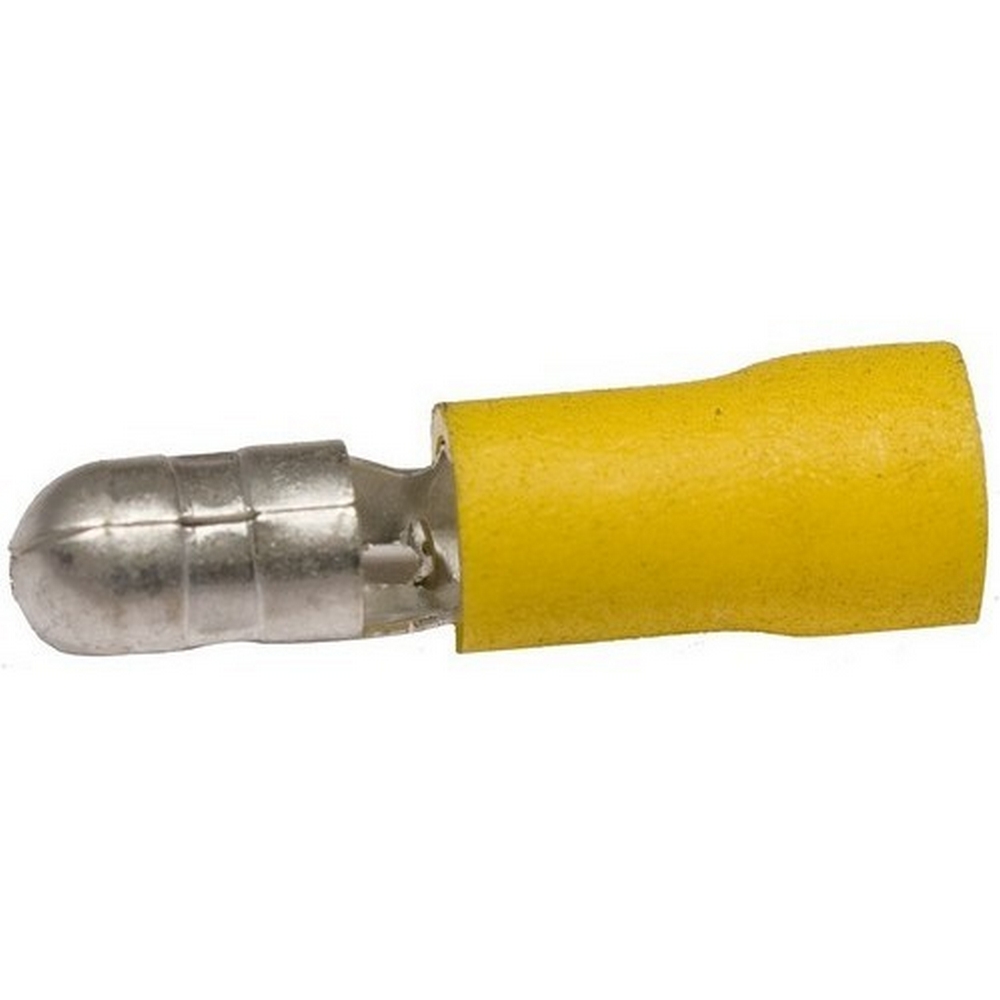

Morris 12048 Vinyl Insulated Bullet Disconnects for Quick Disconnect Applications

Morris 12048 Vinyl Insulated Bullet Disconnects offer a reliable and efficient alternative to traditional blade-type disconnects for quick disconnect applications. Designed for versatility, these disconnects come in two diameter options: .157" and .197". The color-coded insulation ensures easy identification, making installation straightforward for professionals and DIY enthusiasts alike. Constructed from high-strength brass and electro-tin plated, these disconnects provide exceptional corrosion resistance, ensuring longevity and reliability in various environments. The expanded insulation design prevents strand "hang up," enhancing crimping rates and delivering mechanical strain relief. The terminal barrel features a butted seam, while the serrated barrel design ensures excellent electrical contact and minimizes pull-out forces. With a maximum temperature rating of 167°F (75°C) and a voltage capacity of 600 volts, these disconnects are suitable for a wide range of electrical applications. They cater to various wire sizes, supporting electric currents from 3 amps for 22 AWG to 24 amps for 10 AWG. Plus, they are cULus listed, providing an extra layer of assurance for quality and safety. Morris 12048 Vinyl Insulated Bullet Disconnects combine performance and ease of use, making them an essential addition to any electrical toolkit.

Our Vinyl Insulated Bullet Disconnects Are an excellent alternative to blade type disconnects in Quick Disconnect Applications.

• Manufactured from High Strength Brass
• Vinyl Insulated Bullet Disconnects in both .157" and .197" diameters
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 167°F (75°C) 600 Volts Max
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Electro-Tin Plated for corrosion resistance
