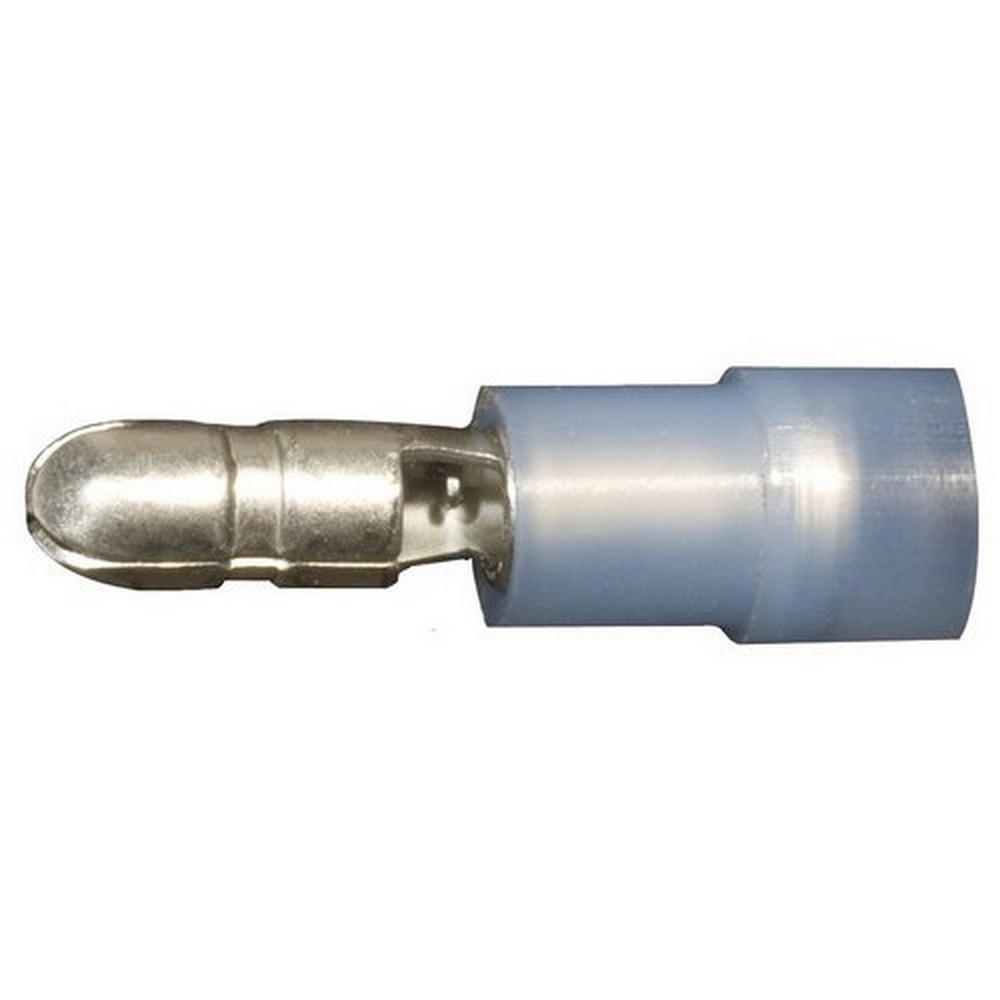

Morris 12054 Nylon Insulated Double Crimp Bullet Disconnects - Restock Here

Morris 12054 Nylon Insulated Double Crimp Bullet Disconnects are your go-to solution for reliable electrical connections. Available in both .157" and .197" diameters, these disconnects feature color-coded insulation for quick and easy identification, enhancing your efficiency on the job. Crafted from high-strength brass, they are electro-tin plated to offer superior corrosion resistance, ensuring longevity in various environments. The innovative design includes an easy entry expanded insulation, which minimizes strand hang-up, allowing for higher crimping rates and providing mechanical strain relief. With a butted seam terminal barrel and serrated barrel, these disconnects ensure excellent electrical contact and resistance to pull-out forces, making them ideal for demanding applications. The double crimp extended crimp sleeve facilitates multiple crimps, resulting in improved electrical contact and enhanced pull-out force resistance. These disconnects are rated for a maximum of 600 volts, with current ratings varying from 3 amps for 22 AWG to 24 amps for 10 AWG. Additionally, the Morris 12054 is cULus listed, guaranteeing compliance with safety standards. Whether you're working on residential, commercial, or industrial projects, these bullet disconnects deliver the performance and reliability you need.

Restock your Nylon Insulated Double Crimp Bullet Disconnects here.

• Nylon Insulated Bullet Disconnects in both .157" and .197" diameters
• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed<
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Electro-Tin Plated for corrosion resistance
